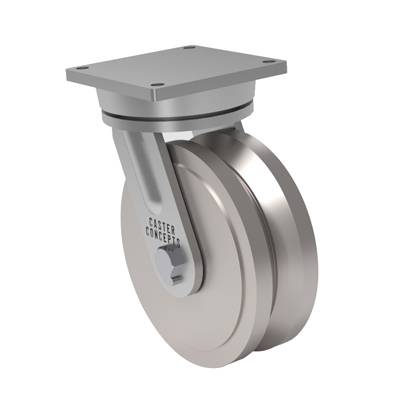

12×5 V-Groove H.D. Cast Iron Swivel Caster

SKU: 91-12509-16-1
  • Load rating of 10000 lbs.
  • Overall height of 15.5 inches
  • Cast Iron Wheel - Durable and strong wheel material with high load-bearing capacity, suitable for heavy-duty applications. Resistant to wear and abrasion.

$1,545.41$1,883.45 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*
Engineered Casters Produced and Shipped in 4 Days

Categories: , , , Tags:


Specifications

Product Type: Caster
Series: 91
Capacity: 10,000 lbs.
Caster Material: Steel
Wheel Material: H.D. Cast Iron
Wheel Configuration: Single Wheel
Wheel Type: V-Groove
Wheel Width: 5"
Wheel Diameter: 12"
Caster Style: Swivel Caster
Caster Type: Kingpinless
Overall Height: 15.5"
Swivel Lead: 2.5"
Top Plate Size: 8.5 x 8.5
Bolt Hole Pattern: 7 x 7
Bolt Size: 0.625"
Bearing Type: Precision Tapered Bearing
SKU: 91-12509-16-1
Caster Weight: 157 lbs.

Product Description

This 12-inch by 5-inch 91 Series Extra Heavy Duty Kingpinless caster, is a highly acclaimed industrial solution that excels in rugged applications while minimizing maintenance costs. This caster is valued for its simplicity and ability to withstand industrial environments with prevalent shock loading. The top plate and yoke base are aligned using high-quality 3/4 inch hardened ball bearings, providing stability and reliability. The ingenious swivel section construction places the ball bearings in a sheer load position, ensuring exceptional strength and smooth operation even under heavy loads. With effortless swiveling capabilities, the 91 Series offers extended lifecycles and years of cost-effective operation. Constructed from hot forged C-1045 steel, this caster features a single ball race design with 7/8 inch diameter load/thrust ball bearings in a precision-machined 7-inch diameter raceway. This caster delivers durability, strength, and efficiency, making it the ideal choice for demanding industrial applications.
The wheels are constructed of premium Class 30 gray iron for maximum load capacity and impact strength. They feature heavy cross section castings for heavy duty use, abrasion resistance and a long service life. Each wheel is precision machined with rounded edges to finished tolerance. Featuring our precision tapered bearings, the wheels are capable of absorbing excessive side thrust loading and can be used where high speed operation is essential, all with a load rating of 10000 lbs.

Description

This 12-inch by 5-inch 91 Series Extra Heavy Duty Kingpinless caster, is a highly acclaimed industrial solution that excels in rugged applications while minimizing maintenance costs. This caster is valued for its simplicity and ability to withstand industrial environments with prevalent shock loading. The top plate and yoke base are aligned using high-quality 3/4 inch hardened ball bearings, providing stability and reliability. The ingenious swivel section construction places the ball bearings in a sheer load position, ensuring exceptional strength and smooth operation even under heavy loads. With effortless swiveling capabilities, the 91 Series offers extended lifecycles and years of cost-effective operation. Constructed from hot forged C-1045 steel, this caster features a single ball race design with 7/8 inch diameter load/thrust ball bearings in a precision-machined 7-inch diameter raceway. This caster delivers durability, strength, and efficiency, making it the ideal choice for demanding industrial applications.
The wheels are constructed of premium Class 30 gray iron for maximum load capacity and impact strength. They feature heavy cross section castings for heavy duty use, abrasion resistance and a long service life. Each wheel is precision machined with rounded edges to finished tolerance. Featuring our precision tapered bearings, the wheels are capable of absorbing excessive side thrust loading and can be used where high speed operation is essential, all with a load rating of 10000 lbs.

Additional information

Weight 157 lbs
