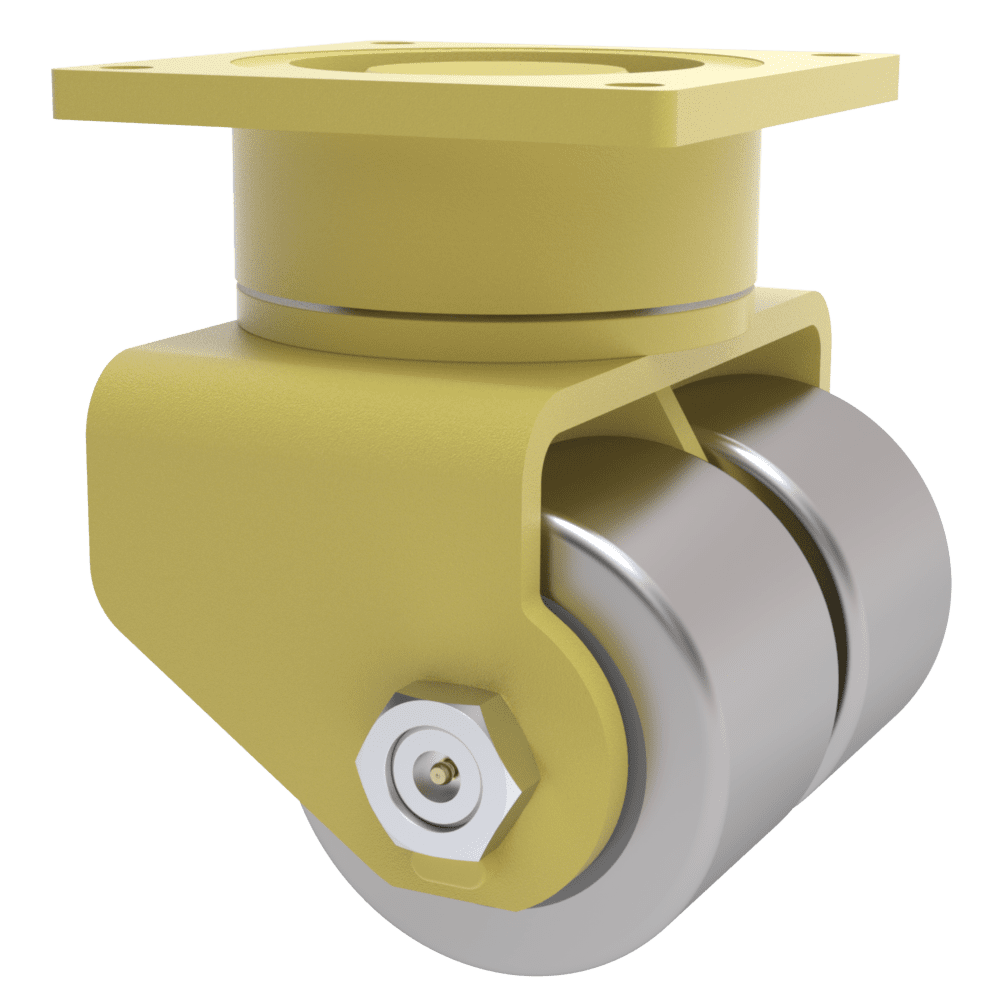

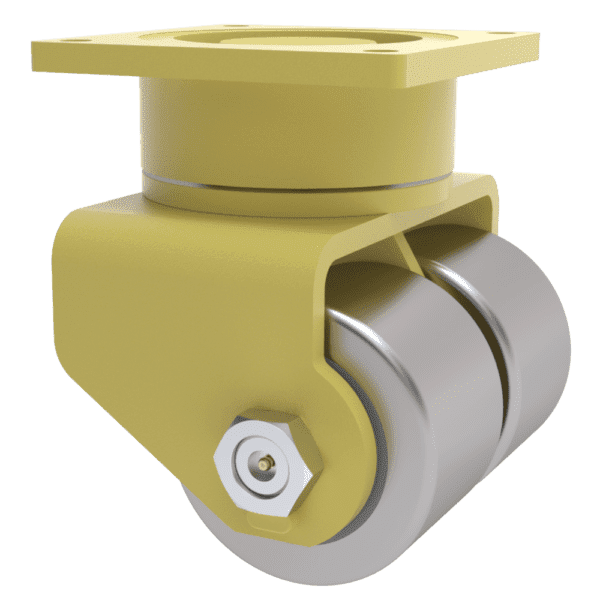

12×4 Dual Wheel Ductile Iron Swivel Caster

SKU: 2-97HD-12409-12-1
  • Load rating of 15000 lbs.
  • Overall height of 16.75 inches
  • Ductile Iron Wheel - Similar to cast iron but with enhanced ductility and impact resistance. Ideal for applications requiring both strength and flexibility.

Categories: , , , Tags:


Specifications

Product Type: Caster
Series: 97
Capacity: 15,000 lbs.
Caster Material: Steel
Wheel Material: Ductile Iron
Wheel Configuration: Dual Wheel
Wheel Width: 4"
Wheel Diameter: 12"
Caster Style: Swivel Caster
Caster Type: Maintenance Free
Overall Height: 16.75"
Swivel Radius: 9.63"
Swivel Lead: 2.5"
Top Plate Size: 8.5 x 8.5
Bolt Hole Pattern: 7 x 7
Bolt Size: 0.625"
Bearing Type: Precision Tapered Bearing
SKU: 2-97HD-12409-12-1
Caster Weight: lbs.

Product Description

This 12-inch by 4-inch 97 Series caster, is a maintenance-free powerhouse designed to excel in abusive applications. This caster boasts sealed precision ball bearings in the swivel section, ensuring reliable performance without the need for regular maintenance. With its high hardness and precision machining tolerances, the swivel section evenly distributes loads and offers extended longevity in continuous-use scenarios. The 97 Series provides superior maneuverability, reducing the strain on powered carts and AGVs while offering better ease of movement. Featuring a 1/2-inch x 4-inch steel leg design, a 1-1/4-inch diameter axle, and sealed lubricated ball bearings, this caster guarantees effortless operation and zero maintenance.



Dual Wheel Casters

Dual Wheel Caster configurations are engineered for exceptional load capacity, stability, and versatility in demanding industrial applications. With a dual wheel configuration and low overall height, these casters offer the highest capacity while maintaining space efficiency. Our casters ensure even weight distribution, reducing pressure on flooring and ground surfaces to prevent damage. The innovative design allows for the use of smaller diameter dual wheels, providing optimal load distribution and effortless directional changes.

Paired with ductile iron wheels, they feature many of the same characteristics of cast iron however, ductile iron has higher tensile and yield strengths. Its greater strength and flexibility — and less brittle-like cast iron tendency — help ductile iron become a better alternative in shocking applications. Featuring our precision tapered bearings, the wheels are capable of absorbing excessive side thrust loading and can be used where high speed operation is essential, all with a load rating of 15000 lbs.
