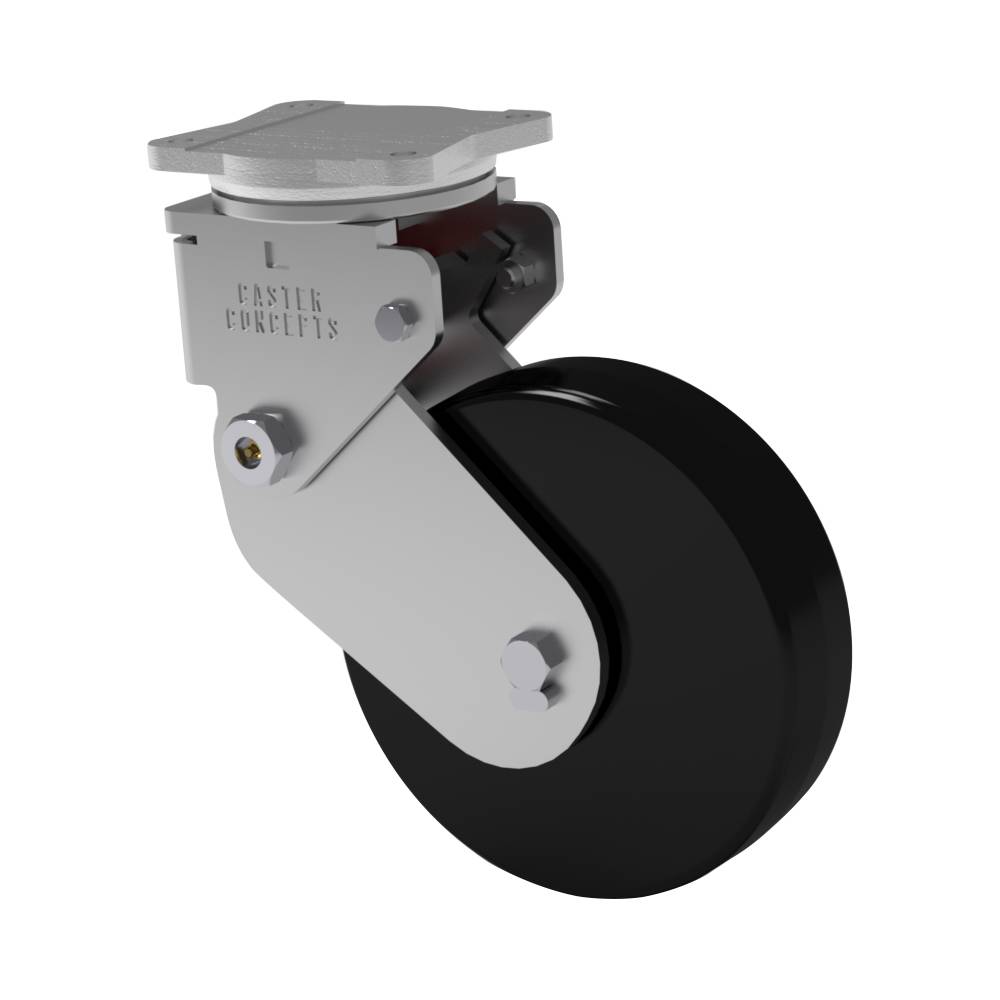

12×3 Phenolic Resin Spring Loaded Swivel Caster

SKU: 83-12309-30-1
  • Load rating of 1500 lbs.
  • Overall height of 17 inches
  • Phenolic Resin Wheel - Known for its high heat resistance, dimensional stability, and low rolling resistance.

$845.00$1,950.00 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*
Engineered Casters Produced and Shipped in 4 Days

Categories: , , Tags:


Specifications

Product Type: Caster
Series: 83
Capacity: 1,500 lbs.
Caster Material: Steel
Wheel Material: Phenolic Resin
Wheel Configuration: Single Wheel
Wheel Width: 3"
Wheel Diameter: 12"
Caster Style: Swivel Caster
Caster Type: Spring Loaded
Overall Height: 17"
Swivel Radius: 11.6"
Swivel Lead: 5.5"
Top Plate Size: 6 x 7.5
Bolt Hole Pattern: 4.5 x 6
Bolt Size: 0.5"
Bearing Type: Precision Tapered Bearing
SKU: 83-12309-30-1
Caster Weight: 64 lbs.

Product Description

This 12-inch by 3-inch 83 series Spring-Loaded caster is designed to absorb shocks and reduce noise, these casters excel on uneven surfaces and protect delicate loads. Our expert engineers determine the ideal spring deflection, ensuring reliable performance without causing damage. Built with high-strength chrome vanadium springs, they offer durability and cushioned loads, while the long swivel lead minimizes vibration during towing.

Paired with a Phenolic Resin wheel, that is crafted from high-quality phenolic resin material, this wheel delivers exceptional strength, durability, and heat resistance. With superior load-bearing capacity and impact resistance, it ensures stability and reliability during movement. Also, with its precision tapered bearing you get the added benefit of your wheel being able to handle both axial and radial loads making them ideal for manufacturing, warehousing, and automotive industries. Its chemical resistance and low rolling resistance guarantee longevity, smooth maneuverability, and dependable performance. Featuring our precision tapered bearings, the wheels are capable of absorbing excessive side thrust loading and can be used where high speed operation is essential, all with a load rating of 1500 lbs.

Description

This 12-inch by 3-inch 83 series Spring-Loaded caster is designed to absorb shocks and reduce noise, these casters excel on uneven surfaces and protect delicate loads. Our expert engineers determine the ideal spring deflection, ensuring reliable performance without causing damage. Built with high-strength chrome vanadium springs, they offer durability and cushioned loads, while the long swivel lead minimizes vibration during towing.

Paired with a Phenolic Resin wheel, that is crafted from high-quality phenolic resin material, this wheel delivers exceptional strength, durability, and heat resistance. With superior load-bearing capacity and impact resistance, it ensures stability and reliability during movement. Also, with its precision tapered bearing you get the added benefit of your wheel being able to handle both axial and radial loads making them ideal for manufacturing, warehousing, and automotive industries. Its chemical resistance and low rolling resistance guarantee longevity, smooth maneuverability, and dependable performance. Featuring our precision tapered bearings, the wheels are capable of absorbing excessive side thrust loading and can be used where high speed operation is essential, all with a load rating of 1500 lbs.

Additional information

Weight 64 lbs
