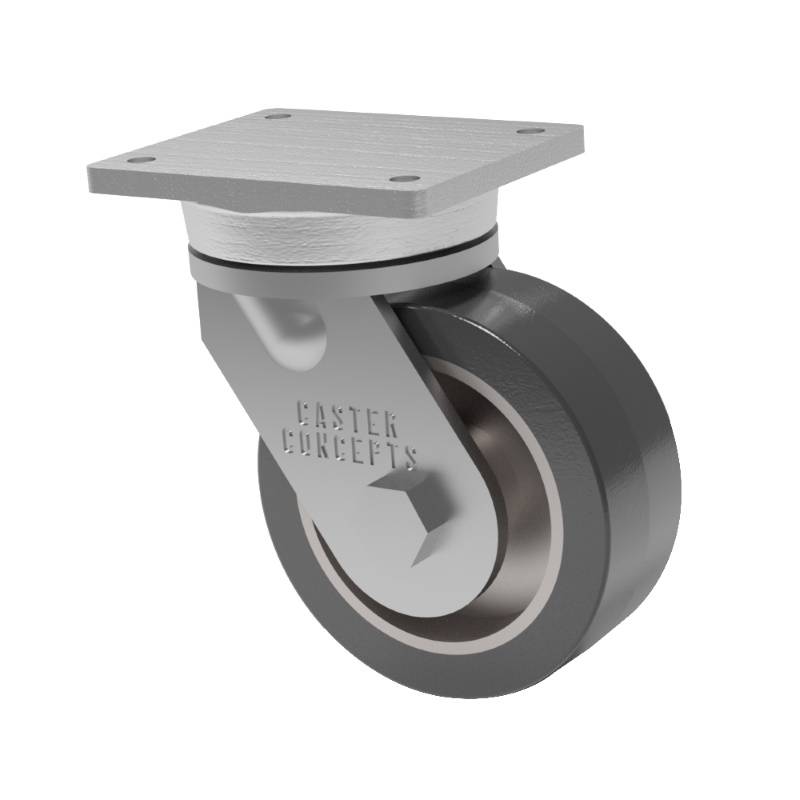

12×3 Mold On Rubber Swivel Caster

SKU: 81-12309-70-1
  • Load rating of 1125 lbs.
  • Overall height of 15.5 inches
  • Mold On Rubber - Rubber tread molded onto a wheel core, providing cushioning, shock absorption, and traction. Offers a smooth and quiet ride.

Categories: , , Tags:


Specifications

Product Type: Caster
Series: 81
Capacity: 1,125 lbs.
Caster Material: Steel
Wheel Material: Mold On Rubber
Wheel Configuration: Single Wheel
Wheel Width: 3"
Wheel Diameter: 12"
Caster Style: Swivel Caster
Caster Type: Kingpinless
Overall Height: 15.5"
Swivel Radius: 8.63"
Swivel Lead: 2.5"
Top Plate Size: 6 x 7.5
Bolt Hole Pattern: 4.5 x 6
Bolt Size: 0.5"
Bearing Type: Precision Tapered Bearing
SKU: 81-12309-70-1
Caster Weight: 55 lbs.

Product Description

This 12-inch by 3-inch 81 series kingpinless caster, is renowned for it's unique single ball race design that ensures a high-strength swivel section. These casters are valued for their simplicity and ability to withstand challenging industrial applications with prevalent shock loading. The top plate and yoke base are securely aligned using 3/4 inch high-quality hardened ball bearings, enabling smooth and reliable swiveling. The longevity of these casters is enhanced by their effortless swiveling, result in years of low-cost operation. Manufactured through a drop forged process with C-1045 steel, the yoke and top plate exhibit exceptional strength. The swivel section features a precision-machined 4-inch single ball bearing and a load/thrust raceway in a kingpinless style, where the 3/4 inch diameter load/thrust ball bearings are positioned in shear load, effectively locking the swivel section. Additionally, a mechanical shield safeguards the swivel section from contamination, ensuring reliable performance in demanding environments. 81 Series Kingpinless Casters offer a winning combination of strength, simplicity, and longevity, making them an ideal choice for industrial applications.

In addition, the Mold-On Rubber wheel combines the strength and resilience of rubber with a robust wheel core for exceptional performance. With superior traction, shock absorption, and non-marking properties, these caster wheels provide smooth and controlled movement while protecting floors. Engineered to withstand heavy loads, they offer durability and longevity, thanks to the securely bonded mold-on rubber tread and solid wheel core. Featuring our precision tapered bearings, the wheels are capable of absorbing excessive side thrust loading and can be used where high speed operation is essential, all with a load rating of 1125 lbs.

Description

This 12-inch by 3-inch 81 series kingpinless caster, is renowned for it’s unique single ball race design that ensures a high-strength swivel section. These casters are valued for their simplicity and ability to withstand challenging industrial applications with prevalent shock loading. The top plate and yoke base are securely aligned using 3/4 inch high-quality hardened ball bearings, enabling smooth and reliable swiveling. The longevity of these casters is enhanced by their effortless swiveling, result in years of low-cost operation. Manufactured through a drop forged process with C-1045 steel, the yoke and top plate exhibit exceptional strength. The swivel section features a precision-machined 4-inch single ball bearing and a load/thrust raceway in a kingpinless style, where the 3/4 inch diameter load/thrust ball bearings are positioned in shear load, effectively locking the swivel section. Additionally, a mechanical shield safeguards the swivel section from contamination, ensuring reliable performance in demanding environments. 81 Series Kingpinless Casters offer a winning combination of strength, simplicity, and longevity, making them an ideal choice for industrial applications.

In addition, the Mold-On Rubber wheel combines the strength and resilience of rubber with a robust wheel core for exceptional performance. With superior traction, shock absorption, and non-marking properties, these caster wheels provide smooth and controlled movement while protecting floors. Engineered to withstand heavy loads, they offer durability and longevity, thanks to the securely bonded mold-on rubber tread and solid wheel core. Featuring our precision tapered bearings, the wheels are capable of absorbing excessive side thrust loading and can be used where high speed operation is essential, all with a load rating of 1125 lbs.

Additional information

Weight 55 lbs
