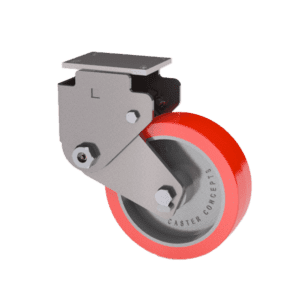

Picture may not be an exact representation of actual product*

12×3 Mold On Rubber Spring Loaded Swivel Caster

SKU: 83-12301-70-1
  • Load rating of 1150 lbs.
  • Overall height of 17 inches
  • Mold On Rubber - Rubber tread molded onto a wheel core, providing cushioning, shock absorption, and traction. Offers a smooth and quiet ride.

$614.26 – $899.53 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*
Engineered Casters Produced and Shipped in 4 Days

Categories: , , Tags:


Specifications

Product Type: Caster
Series: 83
Capacity: 1,150 lbs.
Caster Material: Steel
Wheel Material: Mold On Rubber
Wheel Configuration: Single Wheel
Wheel Width: 3"
Wheel Diameter: 12"
Caster Style: Swivel Caster
Caster Type: Spring Loaded
Overall Height: 17"
Swivel Radius: 11.6"
Swivel Lead: 5.5"
Top Plate Size: 6 x 7.5
Bolt Hole Pattern: 4.5 x 6
Bolt Size: 0.5"
Bearing Type: Straight Roller Bearing
SKU: 83-12301-70-1
Caster Weight: 62 lbs.

Product Description

This 12-inch by 3-inch 83 series Spring-Loaded caster is designed to absorb shocks and reduce noise, these casters excel on uneven surfaces and protect delicate loads. Our expert engineers determine the ideal spring deflection, ensuring reliable performance without causing damage. Built with high-strength chrome vanadium springs, they offer durability and cushioned loads, while the long swivel lead minimizes vibration during towing.

In addition, the Mold-On Rubber wheel combines the strength and resilience of rubber with a robust wheel core for exceptional performance. With superior traction, shock absorption, and non-marking properties, these caster wheels provide smooth and controlled movement while protecting floors. Engineered to withstand heavy loads, they offer durability and longevity, thanks to the securely bonded mold-on rubber tread and solid wheel core. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 1150 lbs.

Description

This 12-inch by 3-inch 83 series Spring-Loaded caster is designed to absorb shocks and reduce noise, these casters excel on uneven surfaces and protect delicate loads. Our expert engineers determine the ideal spring deflection, ensuring reliable performance without causing damage. Built with high-strength chrome vanadium springs, they offer durability and cushioned loads, while the long swivel lead minimizes vibration during towing.

In addition, the Mold-On Rubber wheel combines the strength and resilience of rubber with a robust wheel core for exceptional performance. With superior traction, shock absorption, and non-marking properties, these caster wheels provide smooth and controlled movement while protecting floors. Engineered to withstand heavy loads, they offer durability and longevity, thanks to the securely bonded mold-on rubber tread and solid wheel core. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 1150 lbs.

Additional information

Weight 62 lbs
