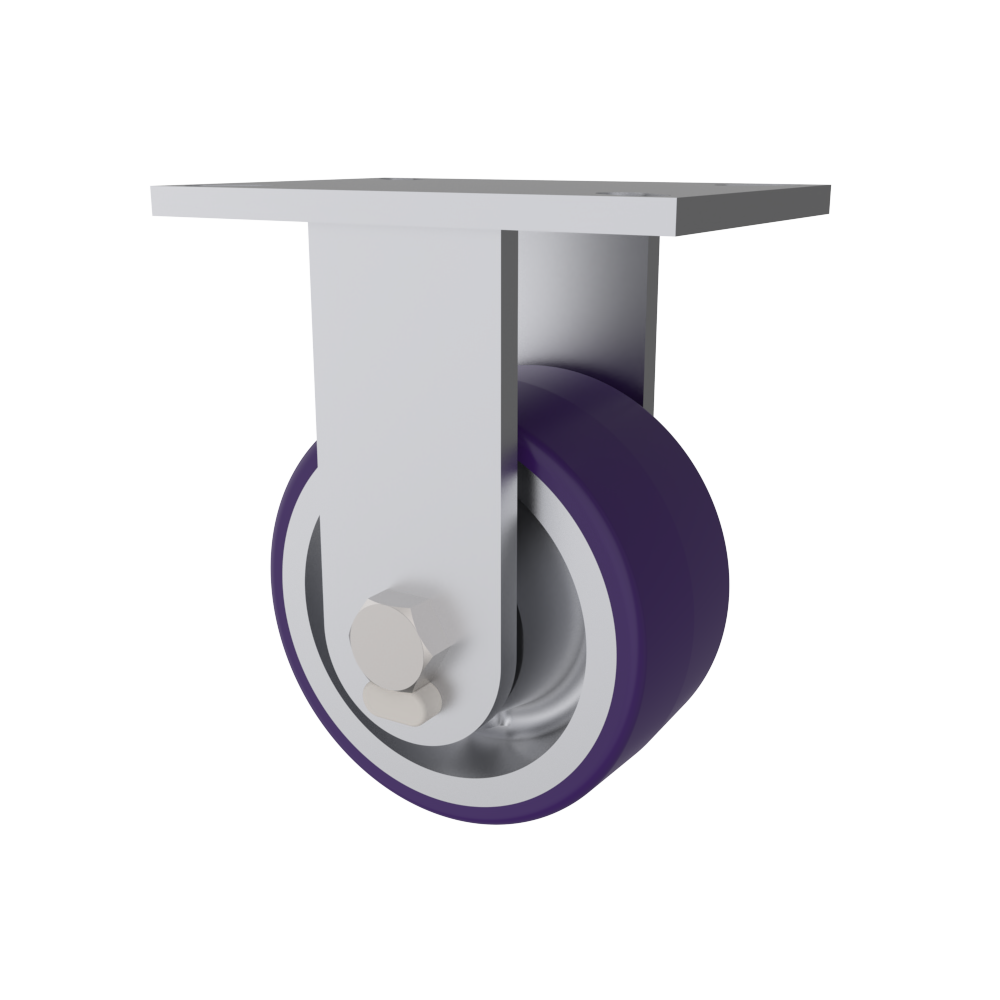

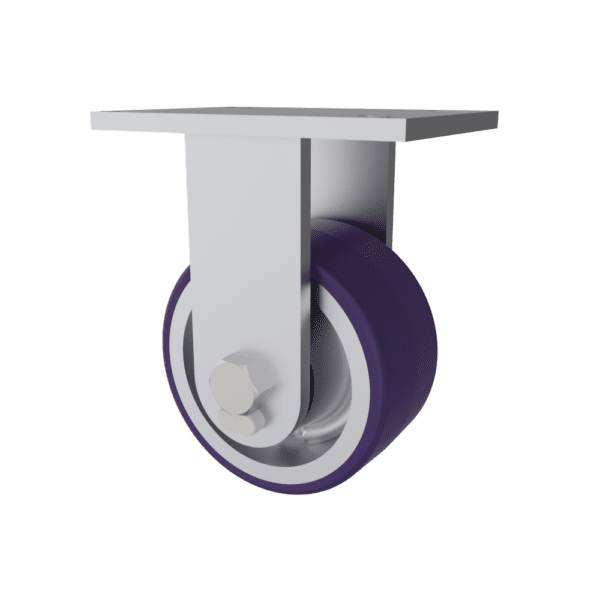

12×3 HPPT Polyurethane Rigid Caster

SKU: 77-12302-90-2
  • Load rating of 3800 lbs.
  • Overall height of 15.5 inches
  • 92A HPPT PU Wheel - High-performance formulation, heat resistant, higher weight capacities, resistant to tearing and abrasions. (Shore 92A Hardness)

Categories: , , , , Tags:


Specifications

Product Type: Caster
Series: 77
Capacity: 3,800 lbs.
Caster Material: Steel
Wheel Material: HPPT Polyurethane
Wheel Configuration: Single Wheel
Wheel Width: 3"
Wheel Diameter: 12"
Caster Style: Rigid Caster
Overall Height: 15.5"
*Temperature Range (Continuous): -50 to 200°F
*Temperature Range (Intermittent): -50 to 175°F
Top Plate Size: 5 x 7.25
Bolt Hole Pattern: 3.375 x 5.25 Slotted to 4.125 x 6.125
Bolt Size: 0.5"
Bearing Type: Precision Ball Bearing
SKU: 77-12302-90-2
Caster Weight: 53.97 lbs.
*High temperature grease must be used over 200°F

Product Description

This 12-inch by 3-inch 77 series caster, is engineered for exceptional performance and reduced ergonomic forces. The legs, made from 3/8" x 2 3/4" steel, are continuously welded both inside and outside the yoke base, ensuring robust construction. With a 3/4" diameter axle, this caster delivers smooth rotation and reliable operation.

The wheel utilizes our HPPT 92A Polyurethane that is a high-performance solution designed for dynamic applications. This features a heat-resistant polyurethane formulation that can handle higher weight capacities, making it perfect for AGVs, Tuggers, and other high-speed, heavy-duty scenarios. With superior tear and abrasion resistance, it maintains its structural integrity over extended periods, while its excellent solvent resistance ensures durability. Featuring precision sealed ball bearings, the caster wheel provides quiet operation and requires no maintenance, all with a load rating of 3800 lbs.

Description

This 12-inch by 3-inch 77 series caster, is engineered for exceptional performance and reduced ergonomic forces. The legs, made from 3/8″ x 2 3/4″ steel, are continuously welded both inside and outside the yoke base, ensuring robust construction. With a 3/4″ diameter axle, this caster delivers smooth rotation and reliable operation.

The wheel utilizes our HPPT 92A Polyurethane that is a high-performance solution designed for dynamic applications. This features a heat-resistant polyurethane formulation that can handle higher weight capacities, making it perfect for AGVs, Tuggers, and other high-speed, heavy-duty scenarios. With superior tear and abrasion resistance, it maintains its structural integrity over extended periods, while its excellent solvent resistance ensures durability. Featuring precision sealed ball bearings, the caster wheel provides quiet operation and requires no maintenance, all with a load rating of 3800 lbs.

Additional information

Weight 53.97 lbs
