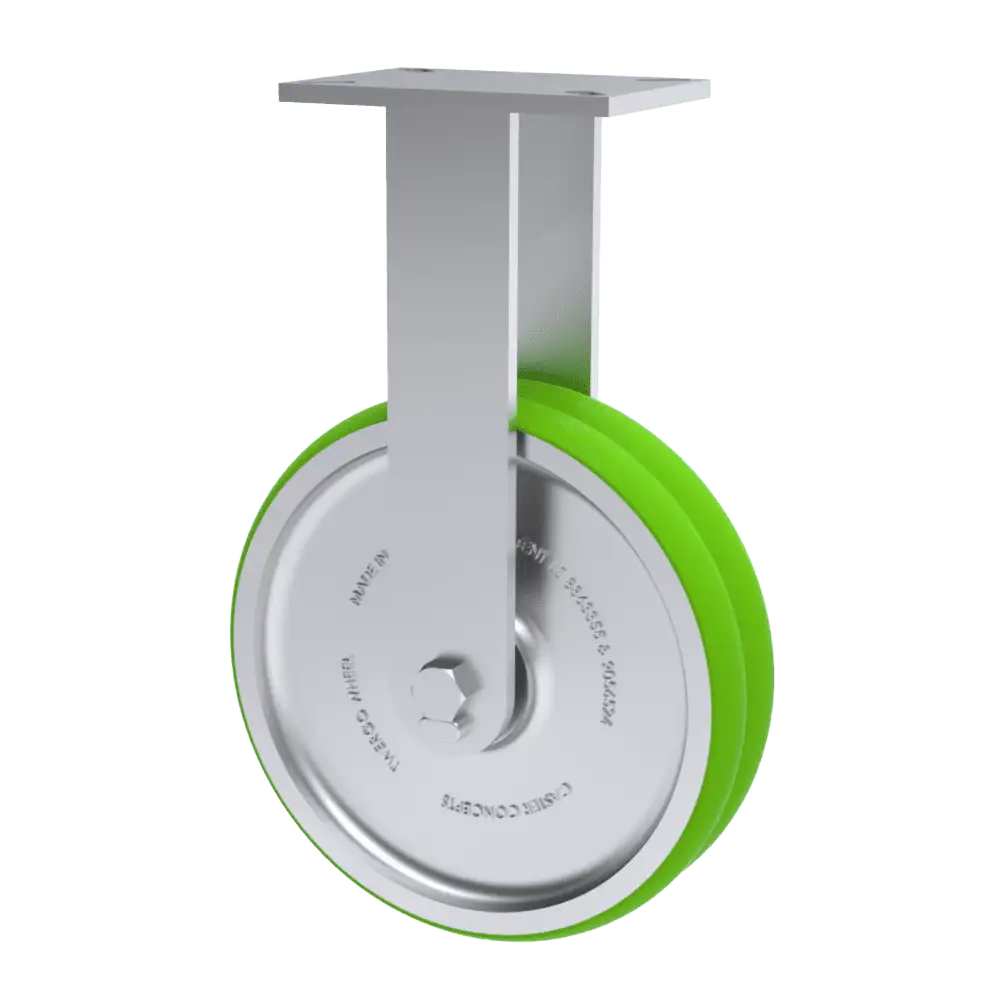

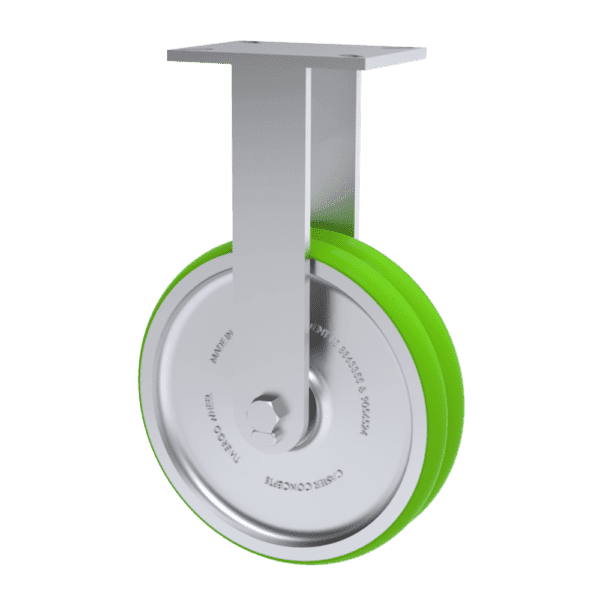

Specifications
Product Type: Caster
Series: 154
Capacity: 2,660 lbs.
Caster Material: Steel
Wheel Material: ErgoTread
Wheel Configuration: Single Wheel
Wheel Type: TWERGO
Wheel Width: 3.00"
Wheel Diameter: 12.00"
Caster Style: Rigid Caster
Overall Height: 18.25"
*Temperature Range (Continuous): '-50 to 200°F
*Temperature Range (Intermittent): '-50 to 175°F
Top Plate Size: 5 x 7.25
Bolt Hole Pattern: 3.375 x 5.25 Slotted to 4.125 x 6.125
Bolt Size: 0.5"
Bearing Type: Precision Ball Bearing
SKU: 154-12302-44-2
Caster Weight: 40.5 lbs.
*High temperature grease must be used over 200°F
Product Description
This 12-inch by 3-inch 154 series Swivel on Swivel (SoS) Caster, is a high-performance solution designed for exceptional maneuverability and reduced push/pull forces. The caster features 1/4" x 2" steel legs that are formed and continuously welded for maximum strength and stability. The 1/2" diameter axle ensures durability and reliability.
The wheel utilizes our ErgoTread formulation that consists of a high-rebound, energy returning polyurethane. Featuring precision sealed ball bearings, the caster wheel provides quiet operation and requires no maintenance, all with a load rating of 2660 lbs.
This 12-inch by 3-inch 154 series Swivel on Swivel (SoS) Caster, is a high-performance solution designed for exceptional maneuverability and reduced push/pull forces. The caster features 1/4″ x 2″ steel legs that are formed and continuously welded for maximum strength and stability. The 1/2″ diameter axle ensures durability and reliability.
The wheel utilizes our ErgoTread formulation that consists of a high-rebound, energy returning polyurethane. Featuring precision sealed ball bearings, the caster wheel provides quiet operation and requires no maintenance, all with a load rating of 2660 lbs.
