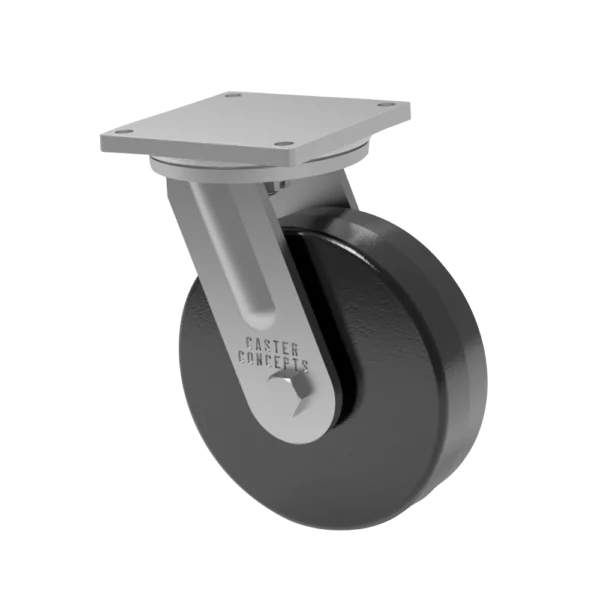

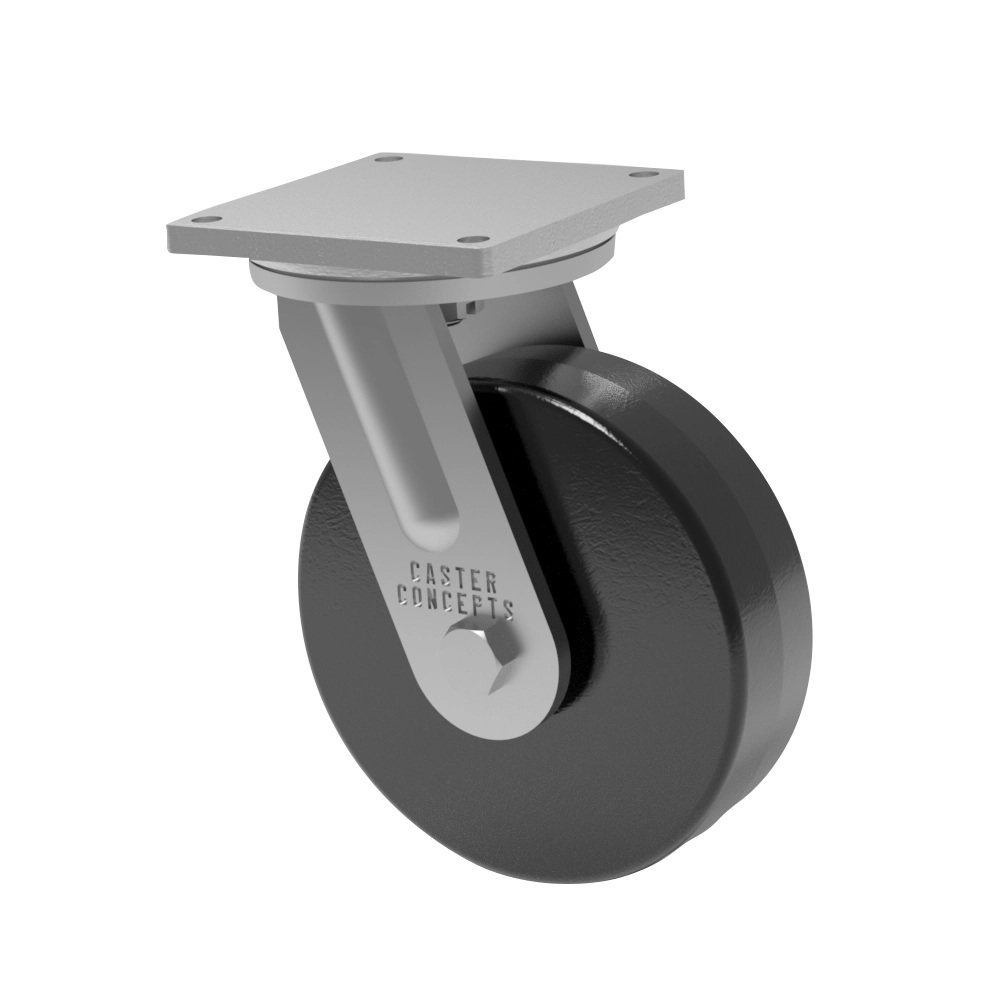

12×3.5 Laminated Phenolic Swivel Caster

SKU: 95-12359-35-1
  • Load rating of 4700 lbs.
  • Overall height of 15.5 inches
  • Laminated Phenolic - Wheel made from layers of phenolic resin, offering high load capacity, impact resistance, and resistance to chemicals and solvents.

$667.14$892.41 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*
Engineered Casters Produced and Shipped in 4 Days

Categories: , , Tags:


Specifications

Product Type: Caster
Series: 95
Capacity: 4,700 lbs.
Caster Material: Steel
Wheel Material: Laminated Phenolic
Wheel Configuration: Single Wheel
Wheel Width: 3.5"
Wheel Diameter: 12"
Caster Style: Swivel Caster
Caster Type: Kingpin
Overall Height: 15.5"
Swivel Radius: 8.68"
Swivel Lead: 2.5"
Top Plate Size: 8.5 x 8.5
Bolt Hole Pattern: 7 x 7
Bolt Size: 0.625"
Bearing Type: Precision Tapered Bearing
SKU: 95-12359-35-1
Caster Weight: 59 lbs.

Product Description

This 12-inch by 3.5-inch 95 Series caster is the perfect choice for applications demanding high load capacities and continuous use under load. With an integrally forged kingpin and slotted adjusting nut, this caster enhances strength and ensures long-lasting performance in the swivel section. Crafted from hot forged C-1045 steel, the 95 Series features a robust construction. The 7-inch diameter load raceway is precision-machined and accommodates 5/8 inch diameter ball bearings along with a 1-1/4 inch tapered thrust bearing. These components work together seamlessly, providing exceptional load-bearing capacity and reliable operation. The 95 Series Caster guarantees durability and longevity, making it an excellent solution for demanding industrial applications.

Paired with a Laminated Phenolic wheel, this combination provides reliable support for heavy loads and minimize the risk of failure. They resist wear, impacts, and abrasion, extending their lifespan and reducing maintenance. These wheels withstand high temperatures, resist chemicals, and deliver a quieter working environment due to their vibration-dampening properties. Overall, laminated phenolic caster wheels combine durability, reliability, and low maintenance for excellent performance in demanding applications. Featuring our precision tapered bearings, the wheels are capable of absorbing excessive side thrust loading and can be used where high speed operation is essential, all with a load rating of 4700 lbs.

Description

This 12-inch by 3.5-inch 95 Series caster is the perfect choice for applications demanding high load capacities and continuous use under load. With an integrally forged kingpin and slotted adjusting nut, this caster enhances strength and ensures long-lasting performance in the swivel section. Crafted from hot forged C-1045 steel, the 95 Series features a robust construction. The 7-inch diameter load raceway is precision-machined and accommodates 5/8 inch diameter ball bearings along with a 1-1/4 inch tapered thrust bearing. These components work together seamlessly, providing exceptional load-bearing capacity and reliable operation. The 95 Series Caster guarantees durability and longevity, making it an excellent solution for demanding industrial applications.

Paired with a Laminated Phenolic wheel, this combination provides reliable support for heavy loads and minimize the risk of failure. They resist wear, impacts, and abrasion, extending their lifespan and reducing maintenance. These wheels withstand high temperatures, resist chemicals, and deliver a quieter working environment due to their vibration-dampening properties. Overall, laminated phenolic caster wheels combine durability, reliability, and low maintenance for excellent performance in demanding applications. Featuring our precision tapered bearings, the wheels are capable of absorbing excessive side thrust loading and can be used where high speed operation is essential, all with a load rating of 4700 lbs.

Additional information

Weight 59 lbs
