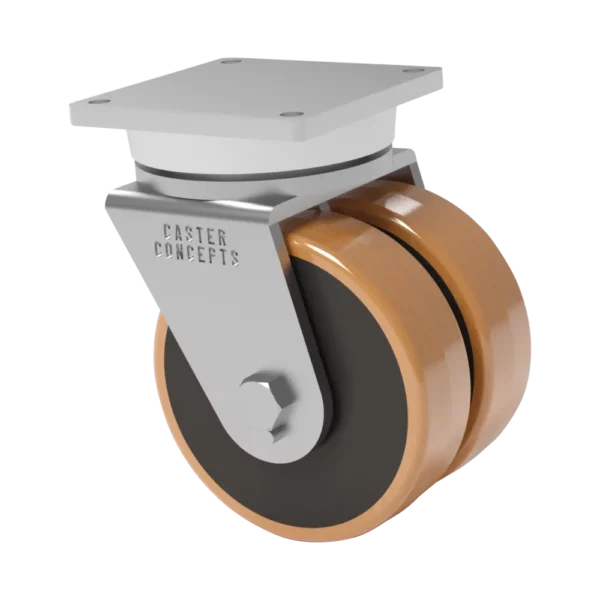

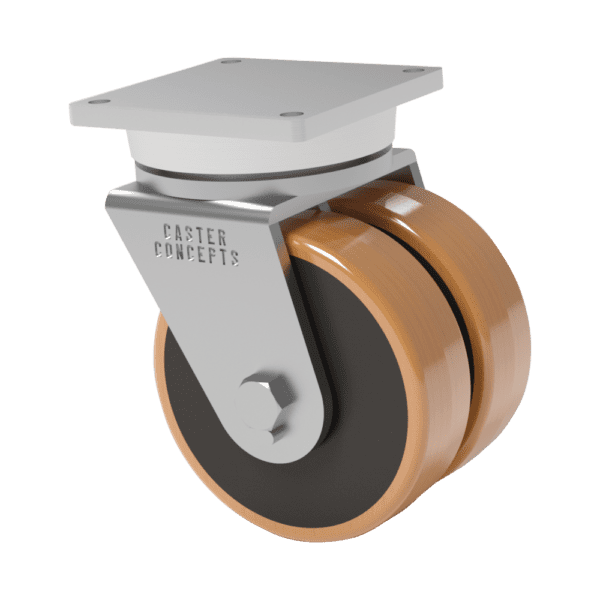

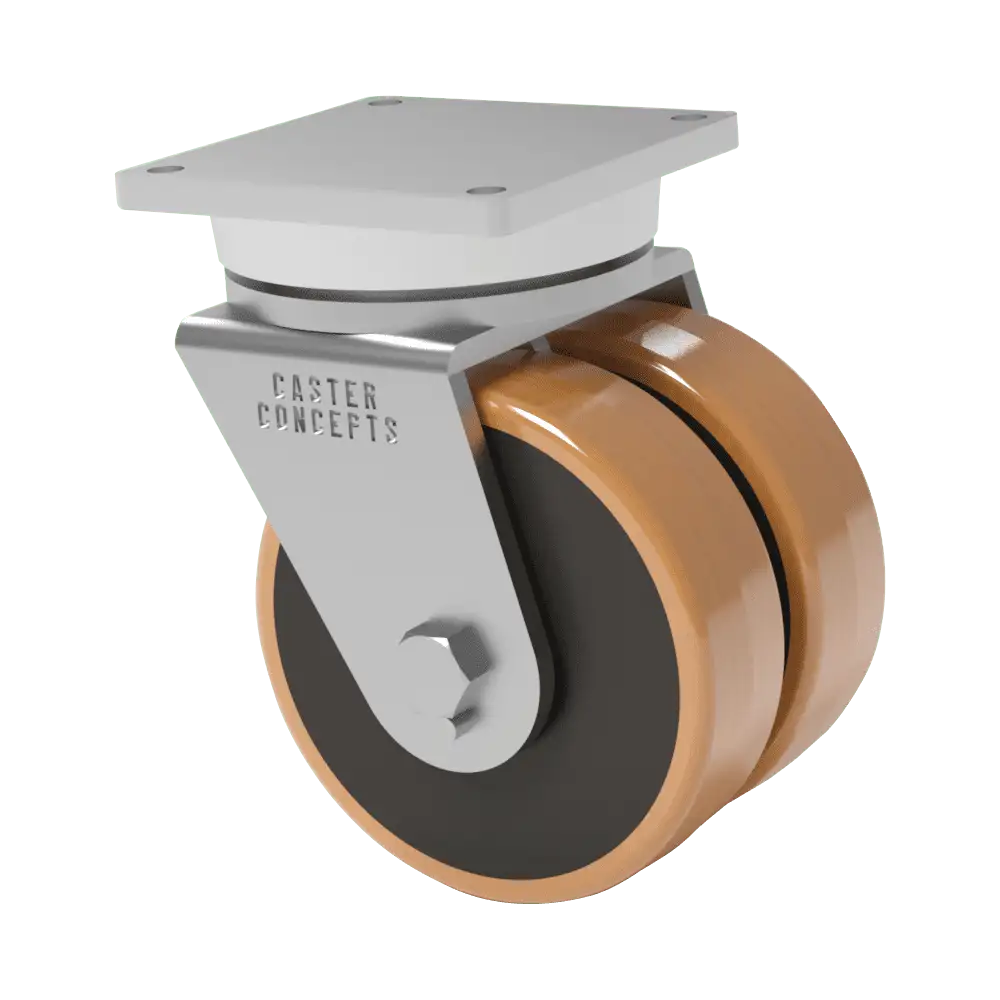

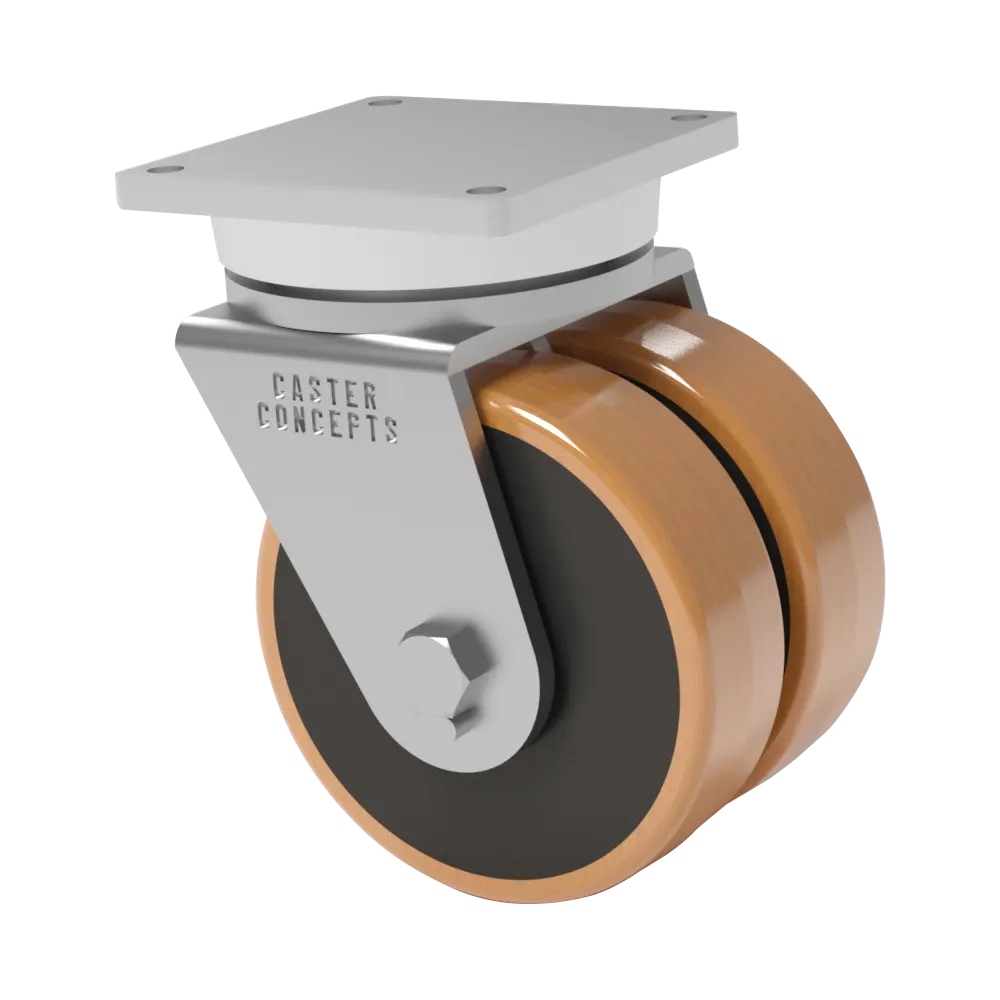

12×3.5 Dual Wheel Laminated Phenolic Swivel Caster

SKU: 2-91-12351-35-1
  • Load rating of 8500 lbs.
  • Overall height of 15.5 inches
  • Laminated Phenolic - Wheel made from layers of phenolic resin, offering high load capacity, impact resistance, and resistance to chemicals and solvents.

Categories: , , Tags:


Specifications

Product Type: Caster
Series: 91
Capacity: 8,500 lbs.
Caster Material: Steel
Wheel Material: Laminated Phenolic
Wheel Configuration: Dual Wheel
Wheel Width: 3.5"
Wheel Diameter: 12"
Caster Style: Swivel Caster
Caster Type: Kingpinless
Overall Height: 15.5"
Swivel Radius: 9.51"
Swivel Lead: 2.5"
Top Plate Size: 8.5 x 8.5
Bolt Hole Pattern: 7 x 7
Bolt Size: 0.625"
Bearing Type: Straight Roller Bearing
SKU: 2-91-12351-35-1
Caster Weight: 97 lbs.

Product Description

This 12-inch by 3.5-inch 91 Series Extra Heavy Duty Kingpinless caster, is a highly acclaimed industrial solution that excels in rugged applications while minimizing maintenance costs. This caster is valued for its simplicity and ability to withstand industrial environments with prevalent shock loading. The top plate and yoke base are aligned using high-quality 3/4 inch hardened ball bearings, providing stability and reliability. The ingenious swivel section construction places the ball bearings in a sheer load position, ensuring exceptional strength and smooth operation even under heavy loads. With effortless swiveling capabilities, the 91 Series offers extended lifecycles and years of cost-effective operation. Constructed from hot forged C-1045 steel, this caster features a single ball race design with 7/8 inch diameter load/thrust ball bearings in a precision-machined 7-inch diameter raceway. This caster delivers durability, strength, and efficiency, making it the ideal choice for demanding industrial applications.



Dual Wheel Casters

Dual Wheel Caster configurations are engineered for exceptional load capacity, stability, and versatility in demanding industrial applications. With a dual wheel configuration and low overall height, these casters offer the highest capacity while maintaining space efficiency. Our casters ensure even weight distribution, reducing pressure on flooring and ground surfaces to prevent damage. The innovative design allows for the use of smaller diameter dual wheels, providing optimal load distribution and effortless directional changes.

Paired with a Laminated Phenolic wheel, this combination provides reliable support for heavy loads and minimize the risk of failure. They resist wear, impacts, and abrasion, extending their lifespan and reducing maintenance. These wheels withstand high temperatures, resist chemicals, and deliver a quieter working environment due to their vibration-dampening properties. Overall, laminated phenolic caster wheels combine durability, reliability, and low maintenance for excellent performance in demanding applications. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 8500 lbs.

Description

This 12-inch by 3.5-inch 91 Series Extra Heavy Duty Kingpinless caster, is a highly acclaimed industrial solution that excels in rugged applications while minimizing maintenance costs. This caster is valued for its simplicity and ability to withstand industrial environments with prevalent shock loading. The top plate and yoke base are aligned using high-quality 3/4 inch hardened ball bearings, providing stability and reliability. The ingenious swivel section construction places the ball bearings in a sheer load position, ensuring exceptional strength and smooth operation even under heavy loads. With effortless swiveling capabilities, the 91 Series offers extended lifecycles and years of cost-effective operation. Constructed from hot forged C-1045 steel, this caster features a single ball race design with 7/8 inch diameter load/thrust ball bearings in a precision-machined 7-inch diameter raceway. This caster delivers durability, strength, and efficiency, making it the ideal choice for demanding industrial applications.

Dual Wheel Casters

Dual Wheel Caster configurations are engineered for exceptional load capacity, stability, and versatility in demanding industrial applications. With a dual wheel configuration and low overall height, these casters offer the highest capacity while maintaining space efficiency. Our casters ensure even weight distribution, reducing pressure on flooring and ground surfaces to prevent damage. The innovative design allows for the use of smaller diameter dual wheels, providing optimal load distribution and effortless directional changes.

Paired with a Laminated Phenolic wheel, this combination provides reliable support for heavy loads and minimize the risk of failure. They resist wear, impacts, and abrasion, extending their lifespan and reducing maintenance. These wheels withstand high temperatures, resist chemicals, and deliver a quieter working environment due to their vibration-dampening properties. Overall, laminated phenolic caster wheels combine durability, reliability, and low maintenance for excellent performance in demanding applications. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 8500 lbs.

Additional information

Weight 97 lbs
