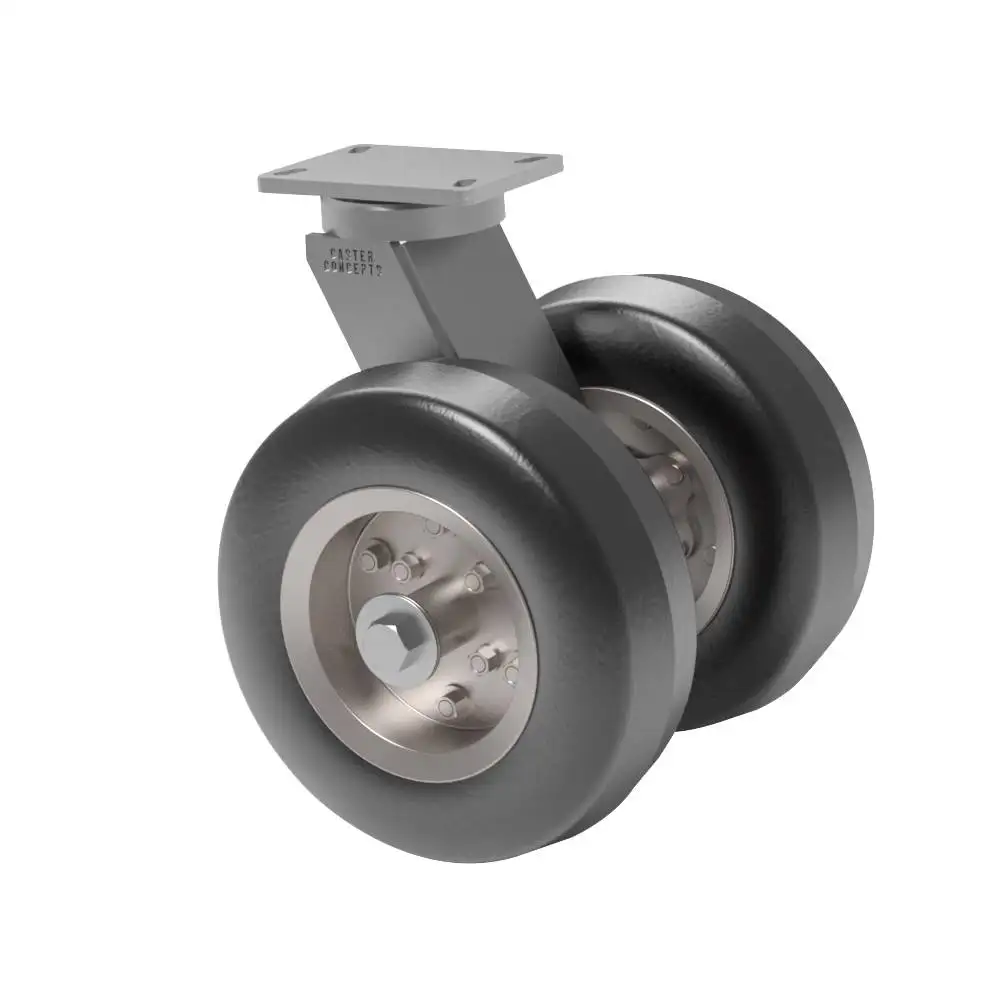

12×200 x 8 Dual Wheel Pneumatic Rubber Swivel Caster

SKU: 2-61-12409-78-1
  • Load rating of 2400 lbs.
  • Overall height of 15.5 inches
  • Pneumatic Rubber Wheel - Rubber tire, providing excellent shock absorption, traction, and smooth rolling on uneven surfaces.

$1,553.50$1,325.00 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*
Engineered Casters Produced and Shipped in 4 Days

Categories: , , Tags:


Specifications

Product Type: Caster
Series: 61
Capacity: 2,400 lbs.
Caster Material: Steel
Wheel Material: Pneumatic Rubber
Wheel Configuration: Dual Wheel
Wheel Type: Semi Pneumatic
Wheel Diameter: 12"
Caster Style: Swivel Caster
Caster Type: Kingpinless
Overall Height: 15.5"
Swivel Lead: 3.5"
Top Plate Size: 4.5 x 6.25
Bolt Hole Pattern: 2.438 x 4.938 Slotted to 3.375 x 5.25
Bolt Size: 0.5"
Bearing Type: Precision Tapered Bearing
SKU: 2-61-12409-78-1
Caster Weight: lbs.

Product Description

This 12-inch by 200 x 8-inch 61 series kingpinless caster, is a highly utilized and reliable industrial solution that offers exceptional value for rugged applications. This caster is renowned for its simplicity and ability to withstand demanding industrial environments with prevalent shock loading. The swivel section features heat-treated inner and outer rings, precisely aligned using high-quality 1/2 inch hardened ball bearings. This robust construction provides outstanding strength and ensures smooth operation even when swiveling under heavy loads. The kingpinless style caster is particularly sought after when manual ergonomic operation is required. Its design and functionality make it a preferred choice for industrial applications.



Dual Wheel Casters

Dual Wheel Caster configurations are engineered for exceptional load capacity, stability, and versatility in demanding industrial applications. With a dual wheel configuration and low overall height, these casters offer the highest capacity while maintaining space efficiency. Our casters ensure even weight distribution, reducing pressure on flooring and ground surfaces to prevent damage. The innovative design allows for the use of smaller diameter dual wheels, providing optimal load distribution and effortless directional changes.

With wheels that mimick car tires, Pneumatic Casters feature rubber wheels around a metal hub, providing exceptional performance. They excel in moving fragile loads with minimal jarring on various surfaces including grass, pavement, and industrial floors. With quiet operation and load cushioning, they offer protection to both loads and floors. Constructed with hot forged steel and double row ball bearing swivels, these casters ensure durability and a long service life. The pneumatic tires cushion the load, absorb shocks, and effortlessly roll over obstructions. Featuring our precision tapered bearings, the wheels are capable of absorbing excessive side thrust loading and can be used where high speed operation is essential, all with a load rating of 2400 lbs.

Description

This 12-inch by 200 x 8-inch 61 series kingpinless caster, is a highly utilized and reliable industrial solution that offers exceptional value for rugged applications. This caster is renowned for its simplicity and ability to withstand demanding industrial environments with prevalent shock loading. The swivel section features heat-treated inner and outer rings, precisely aligned using high-quality 1/2 inch hardened ball bearings. This robust construction provides outstanding strength and ensures smooth operation even when swiveling under heavy loads. The kingpinless style caster is particularly sought after when manual ergonomic operation is required. Its design and functionality make it a preferred choice for industrial applications.

Dual Wheel Casters

Dual Wheel Caster configurations are engineered for exceptional load capacity, stability, and versatility in demanding industrial applications. With a dual wheel configuration and low overall height, these casters offer the highest capacity while maintaining space efficiency. Our casters ensure even weight distribution, reducing pressure on flooring and ground surfaces to prevent damage. The innovative design allows for the use of smaller diameter dual wheels, providing optimal load distribution and effortless directional changes.

With wheels that mimick car tires, Pneumatic Casters feature rubber wheels around a metal hub, providing exceptional performance. They excel in moving fragile loads with minimal jarring on various surfaces including grass, pavement, and industrial floors. With quiet operation and load cushioning, they offer protection to both loads and floors. Constructed with hot forged steel and double row ball bearing swivels, these casters ensure durability and a long service life. The pneumatic tires cushion the load, absorb shocks, and effortlessly roll over obstructions. Featuring our precision tapered bearings, the wheels are capable of absorbing excessive side thrust loading and can be used where high speed operation is essential, all with a load rating of 2400 lbs.
