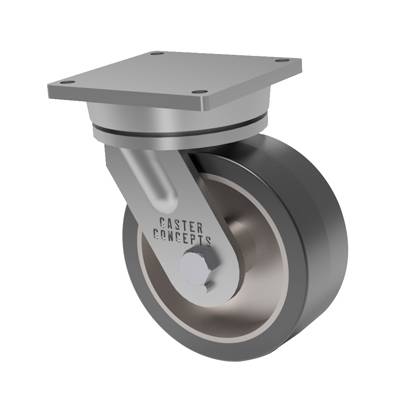

10×4 Mold On Rubber Swivel Caster

SKU: 91-10401-70-1
  • Load rating of 1500 lbs.
  • Overall height of 13 inches
  • Mold On Rubber - Rubber tread molded onto a wheel core, providing cushioning, shock absorption, and traction. Offers a smooth and quiet ride.

$723.27$713.33 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*
Engineered Casters Produced and Shipped in 4 Days

Categories: , , Tags:


Specifications

Product Type: Caster
Series: 91
Capacity: 1,500 lbs.
Caster Material: Steel
Wheel Material: Mold On Rubber
Wheel Configuration: Single Wheel
Wheel Width: 4"
Wheel Diameter: 10"
Caster Style: Swivel Caster
Caster Type: Kingpinless
Overall Height: 13"
Swivel Radius: 7.76"
Swivel Lead: 2.5"
Top Plate Size: 8.5 x 8.5
Bolt Hole Pattern: 7 x 7
Bolt Size: 0.625"
Bearing Type: Straight Roller Bearing
SKU: 91-10401-70-1
Caster Weight: 66 lbs.

Product Description

This 10-inch by 4-inch 91 Series Extra Heavy Duty Kingpinless caster, is a highly acclaimed industrial solution that excels in rugged applications while minimizing maintenance costs. This caster is valued for its simplicity and ability to withstand industrial environments with prevalent shock loading. The top plate and yoke base are aligned using high-quality 3/4 inch hardened ball bearings, providing stability and reliability. The ingenious swivel section construction places the ball bearings in a sheer load position, ensuring exceptional strength and smooth operation even under heavy loads. With effortless swiveling capabilities, the 91 Series offers extended lifecycles and years of cost-effective operation. Constructed from hot forged C-1045 steel, this caster features a single ball race design with 7/8 inch diameter load/thrust ball bearings in a precision-machined 7-inch diameter raceway. This caster delivers durability, strength, and efficiency, making it the ideal choice for demanding industrial applications.

In addition, the Mold-On Rubber wheel combines the strength and resilience of rubber with a robust wheel core for exceptional performance. With superior traction, shock absorption, and non-marking properties, these caster wheels provide smooth and controlled movement while protecting floors. Engineered to withstand heavy loads, they offer durability and longevity, thanks to the securely bonded mold-on rubber tread and solid wheel core. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 1500 lbs.

Description

This 10-inch by 4-inch 91 Series Extra Heavy Duty Kingpinless caster, is a highly acclaimed industrial solution that excels in rugged applications while minimizing maintenance costs. This caster is valued for its simplicity and ability to withstand industrial environments with prevalent shock loading. The top plate and yoke base are aligned using high-quality 3/4 inch hardened ball bearings, providing stability and reliability. The ingenious swivel section construction places the ball bearings in a sheer load position, ensuring exceptional strength and smooth operation even under heavy loads. With effortless swiveling capabilities, the 91 Series offers extended lifecycles and years of cost-effective operation. Constructed from hot forged C-1045 steel, this caster features a single ball race design with 7/8 inch diameter load/thrust ball bearings in a precision-machined 7-inch diameter raceway. This caster delivers durability, strength, and efficiency, making it the ideal choice for demanding industrial applications.

In addition, the Mold-On Rubber wheel combines the strength and resilience of rubber with a robust wheel core for exceptional performance. With superior traction, shock absorption, and non-marking properties, these caster wheels provide smooth and controlled movement while protecting floors. Engineered to withstand heavy loads, they offer durability and longevity, thanks to the securely bonded mold-on rubber tread and solid wheel core. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 1500 lbs.

Additional information

Weight 66 lbs
