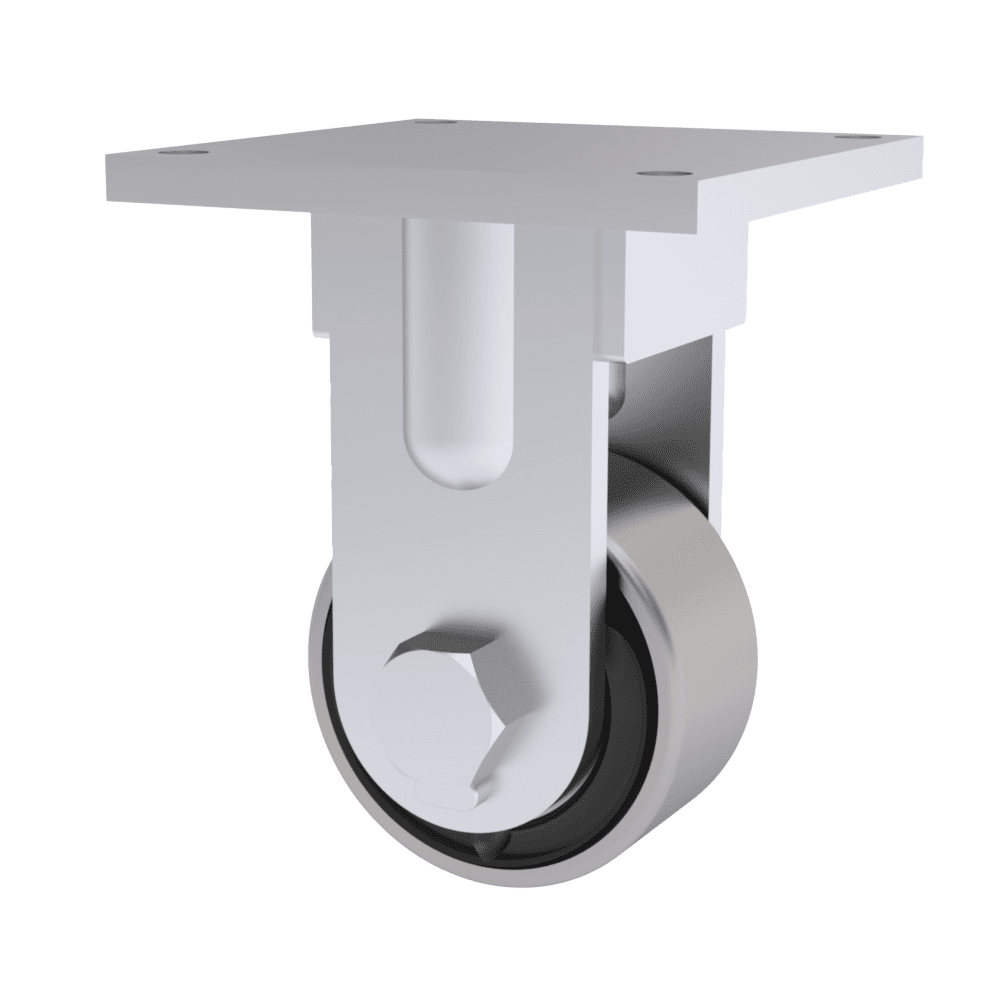

10×4 Forged Steel Rigid Caster

SKU: 97HD-10409-20-2
  • Load rating of 10000 lbs.
  • Overall height of 14.5 inches
  • Cast Iron Wheel - Durable and strong wheel material with high load-bearing capacity, suitable for heavy-duty applications. Resistant to wear and abrasion.

Categories: , , , Tag:


Specifications

Product Type: Caster
Series: 97
Capacity: 10,000 lbs.
Caster Material: Steel
Wheel Material: Forged Steel
Wheel Configuration: Single Wheel
Wheel Width: 4"
Wheel Diameter: 10"
Caster Style: Rigid Caster
Overall Height: 14.5"
*Temperature Range (Continuous): -40 to 320°F
*Temperature Range (Intermittent): -40 to 320°F
Top Plate Size: 8.5 x 8.5
Bolt Hole Pattern: 7 x 7
Bolt Size: 0.625"
Bearing Type: Precision Tapered Bearing
SKU: 97HD-10409-20-2
Caster Weight: lbs.
*High temperature grease must be used over 200°F

Product Description

This 10-inch by 4-inch 97 Series caster, provides superior maneuverability, reducing the strain on powered carts and AGVs while offering better ease of movement. Featuring a 1/2-inch x 4-inch steel leg design, and 1-1/4-inch diameter axle, this rigid caster guarantees effortless operation.

Combined with Forged Steel wheels, these casters become a powerhouse solution for heavy-duty industrial applications. These wheels are hot forged from high carbon steel billets, enhancing their grain structure, ductility, and tensile strength (64,000 psi). With precision machining, they meet tight tolerances, ensuring flat surfaces with rounded edges. Offering the greatest load capacity, impact strength, and rollability among caster wheels. With the proper wheels and bearings, these wheels are capable of withstanding temperatures up to 800 degrees. Featuring our precision tapered bearings, the wheels are capable of absorbing excessive side thrust loading and can be used where high speed operation is essential, all with a load rating of 10000 lbs.
