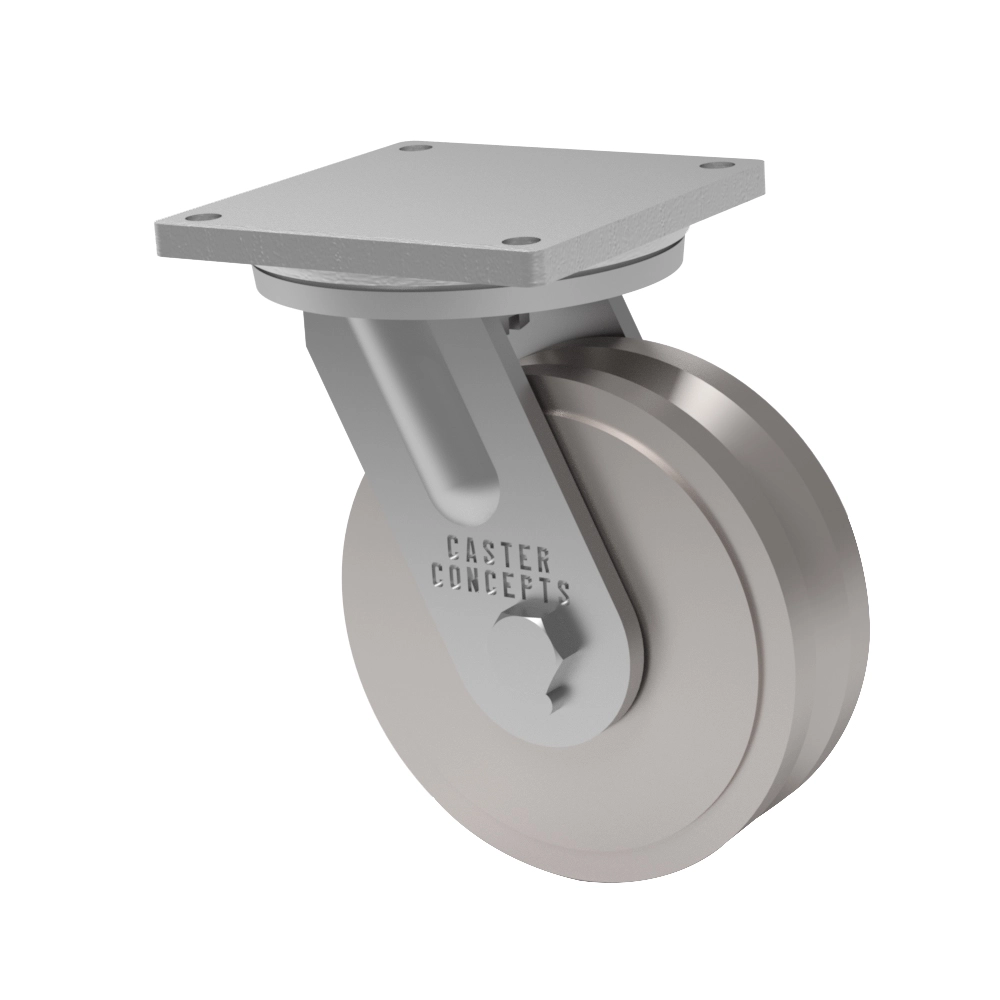

10×3 V-Groove H.D. Cast Iron Swivel Caster

SKU: 80-10301-16-1
  • Load rating of 4000 lbs.
  • Overall height of 12.5 inches
  • Cast Iron Wheel - Durable and strong wheel material with high load-bearing capacity, suitable for heavy-duty applications. Resistant to wear and abrasion.

$420.09$679.51 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*
Engineered Casters Produced and Shipped in 4 Days

Categories: , , , Tags:


Specifications

Product Type: Caster
Series: 80
Capacity: 4,000 lbs.
Caster Material: Steel
Wheel Material: H.D. Cast Iron
Wheel Configuration: Single Wheel
Wheel Type: V-Groove
Wheel Width: 3"
Wheel Diameter: 10"
Caster Style: Swivel Caster
Caster Type: Kingpin
Overall Height: 12.5"
Swivel Lead: 2.5"
Top Plate Size: 6 x 7.5
Bolt Hole Pattern: 4.5 x 6
Bolt Size: 0.5"
Bearing Type: Straight Roller Bearing
SKU: 80-10301-16-1
Caster Weight: 55 lbs.

Product Description

This 10-inch by 3-inch 80 series extra heavy duty caster, is meticulously engineered to withstand the most abusive applications. These casters are designed with heat-treated raceways to prevent brinelling and ensure long-lasting performance. The laser-cut formed legs provide additional strength, making them ideal for applications with side loading or skidding. Crafted with durability in mind, the yoke and top plate are manufactured through a drop forged process using C-1045 steel. The top plate features a machined raceway, while the threaded kingpin and 5-inch diameter machined yoke base raceway enhance stability. Components are heat treated to achieve a hardness of 40 + 2 Rc. The caster is equipped with a 1.25-inch precision tapered thrust bearing pressed over the kingpin, along with hardened ball bearings to complete the load-bearing raceway. With exceptional strength and reliable construction, the 80 Series Extra Heavy Duty Casters are the perfect choice for rugged industrial applications.

The wheels are constructed of premium Class 30 gray iron for maximum load capacity and impact strength. They feature heavy cross section castings for heavy duty use, abrasion resistance and a long service life. Each wheel is precision machined with rounded edges to finished tolerance. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 4000 lbs.

Description

This 10-inch by 3-inch 80 series extra heavy duty caster, is meticulously engineered to withstand the most abusive applications. These casters are designed with heat-treated raceways to prevent brinelling and ensure long-lasting performance. The laser-cut formed legs provide additional strength, making them ideal for applications with side loading or skidding. Crafted with durability in mind, the yoke and top plate are manufactured through a drop forged process using C-1045 steel. The top plate features a machined raceway, while the threaded kingpin and 5-inch diameter machined yoke base raceway enhance stability. Components are heat treated to achieve a hardness of 40 + 2 Rc. The caster is equipped with a 1.25-inch precision tapered thrust bearing pressed over the kingpin, along with hardened ball bearings to complete the load-bearing raceway. With exceptional strength and reliable construction, the 80 Series Extra Heavy Duty Casters are the perfect choice for rugged industrial applications.

The wheels are constructed of premium Class 30 gray iron for maximum load capacity and impact strength. They feature heavy cross section castings for heavy duty use, abrasion resistance and a long service life. Each wheel is precision machined with rounded edges to finished tolerance. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 4000 lbs.

Additional information

Weight 55 lbs
