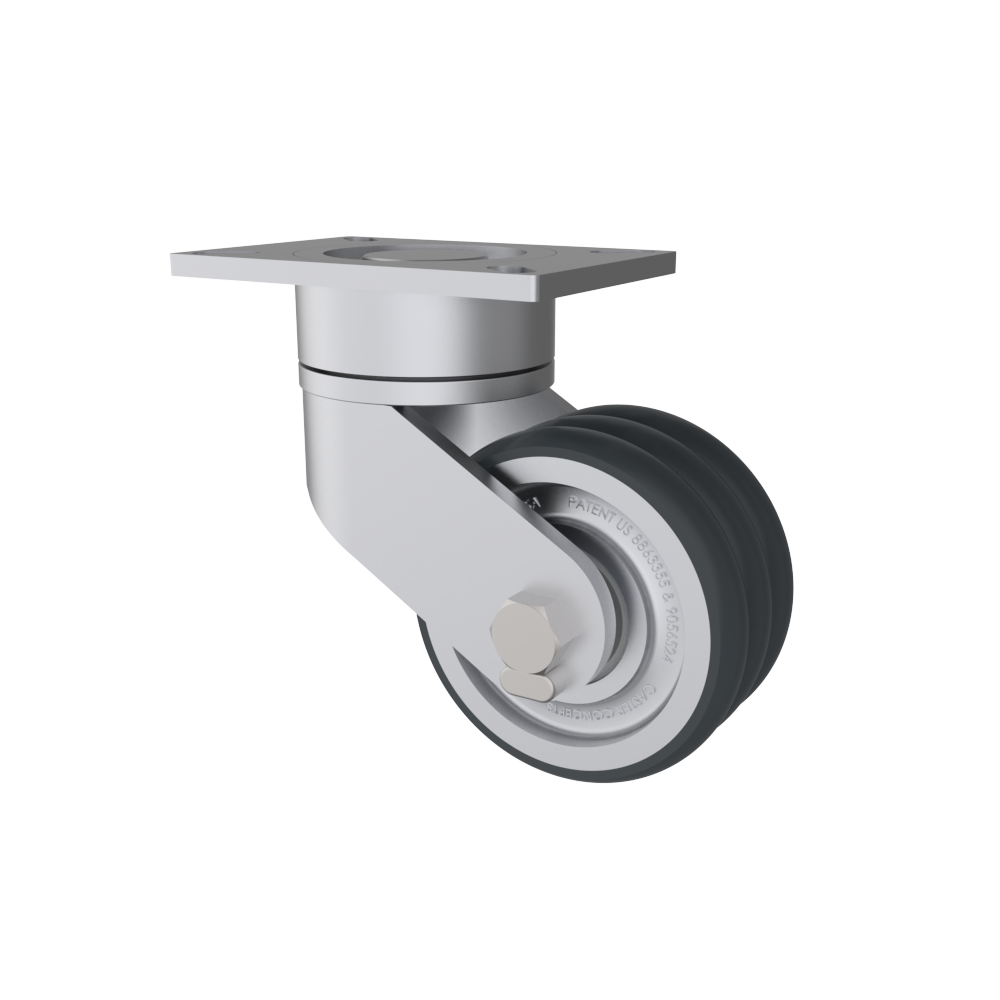

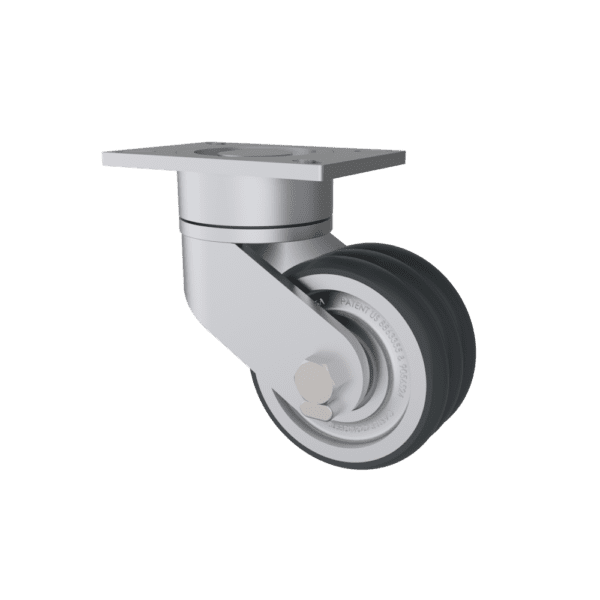

10×3 TWERGO T/R-95 Polyurethane Swivel Caster

SKU: 77-10302-94-1
  • Load rating of 3100 lbs.
  • Overall height of 12.5 inches
  • T/R 95A PU Wheel - High tear resistance, extended wear, ergonomic benefits, good solvent and oil resistance. (Shore 95A Hardness)

$516.49$759.23 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*
Engineered Casters Produced and Shipped in 4 Days

Categories: , , , , Tags:


Specifications

Product Type: Caster
Series: 77
Capacity: 3,100 lbs.
Caster Material: Steel
Wheel Material: T/R-95 Polyurethane
Wheel Configuration: Single Wheel
Wheel Type: TWERGO
Wheel Width: 3"
Wheel Diameter: 10"
Caster Style: Swivel Caster
Caster Type: Maintenance Free
Overall Height: 12.5"
Swivel Radius: 8.63"
Swivel Lead: 3.5"
Brand: TWERGO
Top Plate Size: 5 x 7.25
Bolt Hole Pattern: 3.375 x 5.25 Slotted to 4.125 x 6.125
Bolt Size: 0.5"
Bearing Type: Precision Ball Bearing
SKU: 77-10302-94-1
Caster Weight: 22.63 lbs.

Product Description

This 10-inch by 3-inch 77 series caster utilizes a dual (precision sealed ball) bearing design, enabling smooth and easy rotation.  This caster series is the first in the Maintenance Free line to support 3″ wide wheels, up to a 10″ diameter. The dual precision sealed ball bearings help reduce push force when moving the cart from a stopped position while the wheels are not all parallel.



TWERGO Wheel

Designed with ergonomics in mind, TWERGO minimizes overexertion injuries by reducing initial push force and wheel friction during movement. Featuring a unique multi-wheel design and independently rotating parabolic wheels, TWERGO provides exceptional maneuverability and reduced friction, resulting in smoother navigation and less strain on operators. On average, you’ll receive up to a 25% reduction in rolling resistance, allowing for easier movement and increased productivity. The T/R95 Polyurethane caster wheel features our specialized formulation designed for challenging applications. With superior tear resistance and increased strength, this wheel ensures extended wear and durability even in demanding environments. The T/R 95 tread offers enhanced ergonomic benefits and a longer service life compared to standard 95A polyurethane. Featuring precision sealed ball bearings, the caster provides quiet operation and requires no maintenance, all with a load rating of 3100 lbs.

Description

This 10-inch by 3-inch 77 series caster utilizes a dual (precision sealed ball) bearing design, enabling smooth and easy rotation.  This caster series is the first in the Maintenance Free line to support 3″ wide wheels, up to a 10″ diameter. The dual precision sealed ball bearings help reduce push force when moving the cart from a stopped position while the wheels are not all parallel.

TWERGO Wheel

Designed with ergonomics in mind, TWERGO minimizes overexertion injuries by reducing initial push force and wheel friction during movement. Featuring a unique multi-wheel design and independently rotating parabolic wheels, TWERGO provides exceptional maneuverability and reduced friction, resulting in smoother navigation and less strain on operators. On average, you’ll receive up to a 25% reduction in rolling resistance, allowing for easier movement and increased productivity. The T/R95 Polyurethane caster wheel features our specialized formulation designed for challenging applications. With superior tear resistance and increased strength, this wheel ensures extended wear and durability even in demanding environments. The T/R 95 tread offers enhanced ergonomic benefits and a longer service life compared to standard 95A polyurethane. Featuring precision sealed ball bearings, the caster provides quiet operation and requires no maintenance, all with a load rating of 3100 lbs.

Additional information

Weight 22.63 lbs
