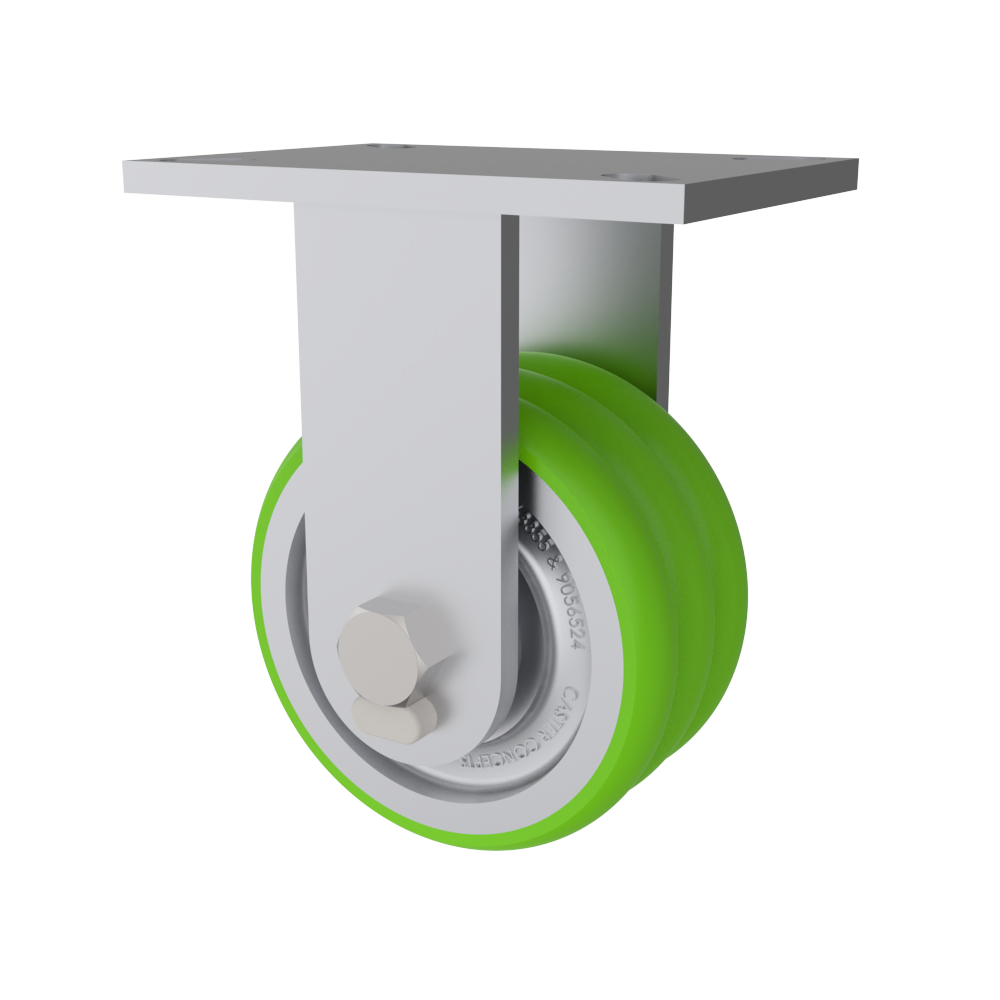

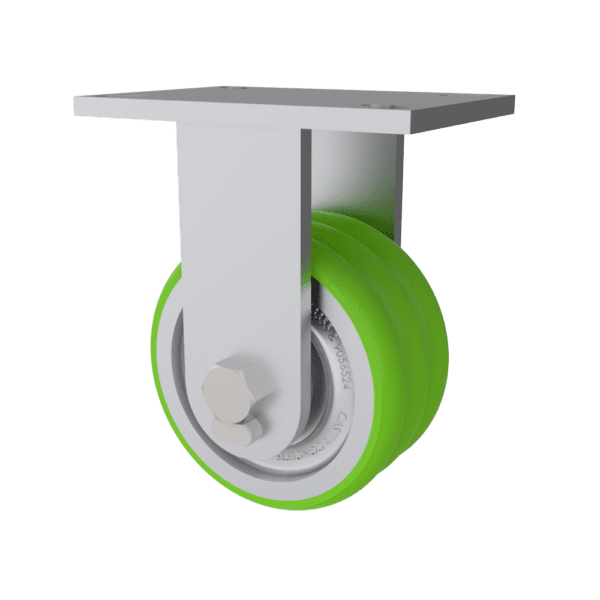

10×3 TWERGO ErgoTread Rigid Caster

SKU: 77-10302-44-2
  • Load rating of 2280 lbs.
  • Overall height of 12.5 inches
  • 85A ErgoTread PU Wheel - Energy-returning, ergonomic formulation, reduces strain and risk of injuries, debris-resistant, noise-reducing. (Shore 85A Hardness)

Categories: , , , , Tags:


Specifications

Product Type: Caster
Series: 77
Capacity: 2,280 lbs.
Caster Material: Steel
Wheel Material: ErgoTread
Wheel Configuration: Single Wheel
Wheel Type: TWERGO
Wheel Width: 3"
Wheel Diameter: 10"
Caster Style: Rigid Caster
Overall Height: 12.5"
*Temperature Range (Continuous): -50 to 200°F
*Temperature Range (Intermittent): -50 to 175°F
Brand: TWERGO
Top Plate Size: 5 x 7.25
Bolt Hole Pattern: 3.375 x 5.25 Slotted to 4.125 x 6.125
Bolt Size: 0.5"
Bearing Type: Precision Ball Bearing
SKU: 77-10302-44-2
Caster Weight: 22.63 lbs.
*High temperature grease must be used over 200°F

Product Description

This 10-inch by 3-inch 77 series caster, is engineered for exceptional performance and reduced ergonomic forces. The legs, made from 3/8" x 2 3/4" steel, are continuously welded both inside and outside the yoke base, ensuring robust construction. With a 3/4" diameter axle, this caster delivers smooth rotation and reliable operation.



TWERGO Wheel

Designed with ergonomics in mind, TWERGO minimizes overexertion injuries by reducing initial push force and wheel friction during movement. Featuring a unique multi-wheel design and independently rotating parabolic wheels, TWERGO provides exceptional maneuverability and reduced friction, resulting in smoother navigation and less strain on operators. On average, you’ll receive up to a 25% reduction in rolling resistance, allowing for easier movement and increased productivity.The wheel utilizes our ErgoTread formulation that consists of a high-rebound, energy returning polyurethane. Featuring precision sealed ball bearings, the caster wheel provides quiet operation and requires no maintenance, all with a load rating of 2280 lbs.

Description

This 10-inch by 3-inch 77 series caster, is engineered for exceptional performance and reduced ergonomic forces. The legs, made from 3/8″ x 2 3/4″ steel, are continuously welded both inside and outside the yoke base, ensuring robust construction. With a 3/4″ diameter axle, this caster delivers smooth rotation and reliable operation.

TWERGO Wheel

Designed with ergonomics in mind, TWERGO minimizes overexertion injuries by reducing initial push force and wheel friction during movement. Featuring a unique multi-wheel design and independently rotating parabolic wheels, TWERGO provides exceptional maneuverability and reduced friction, resulting in smoother navigation and less strain on operators. On average, you’ll receive up to a 25% reduction in rolling resistance, allowing for easier movement and increased productivity.The wheel utilizes our ErgoTread formulation that consists of a high-rebound, energy returning polyurethane. Featuring precision sealed ball bearings, the caster wheel provides quiet operation and requires no maintenance, all with a load rating of 2280 lbs.

Additional information

Weight 22.63 lbs
