Specifications

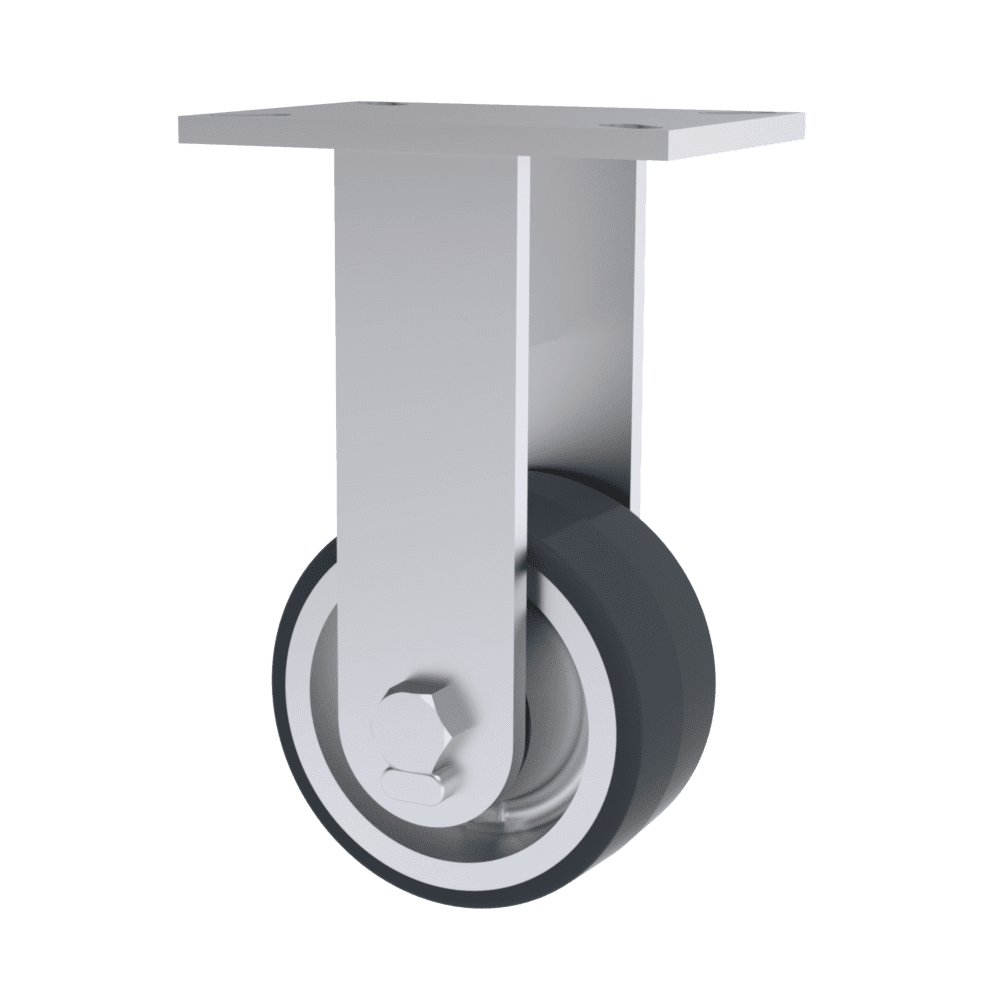

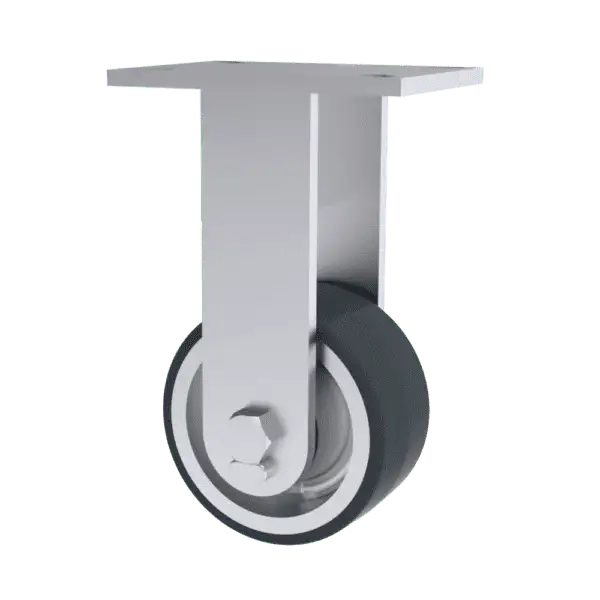

Product Type: Caster
Series: 154
Capacity: 3,100 lbs.
Caster Material: Steel
Wheel Material: T/R-95 Polyurethane
Wheel Configuration: Single Wheel
Wheel Width: 3.00"
Wheel Diameter: 10.00"
Caster Style: Rigid Caster
Overall Height: 15.25"
*Temperature Range (Continuous): '-50 to 200°F
*Temperature Range (Intermittent): '-50 to 175°F
Top Plate Size: 5 x 7.25
Bolt Hole Pattern: 3.375 x 5.25 Slotted to 4.125 x 6.125
Bolt Size: 0.5"
Bearing Type: Precision Ball Bearing
SKU: 154-10302-91-2
Caster Weight: 50.4 lbs.
*High temperature grease must be used over 200°F
Product Description
This 10-inch by 3-inch 154 series Swivel on Swivel (SoS) Caster, is a high-performance solution designed for exceptional maneuverability and reduced push/pull forces. The caster features 1/4" x 2" steel legs that are formed and continuously welded for maximum strength and stability. The 1/2" diameter axle ensures durability and reliability.
The T/R95 Polyurethane caster wheel features our specialized formulation designed for challenging applications. With superior tear resistance and increased strength, this wheel ensures extended wear and durability even in demanding environments. The T/R 95 tread offers enhanced ergonomic benefits and a longer service life compared to standard 95A polyurethane. Featuring precision sealed ball bearings, the caster wheel provides quiet operation and requires no maintenance, all with a load rating of 3100 lbs.
