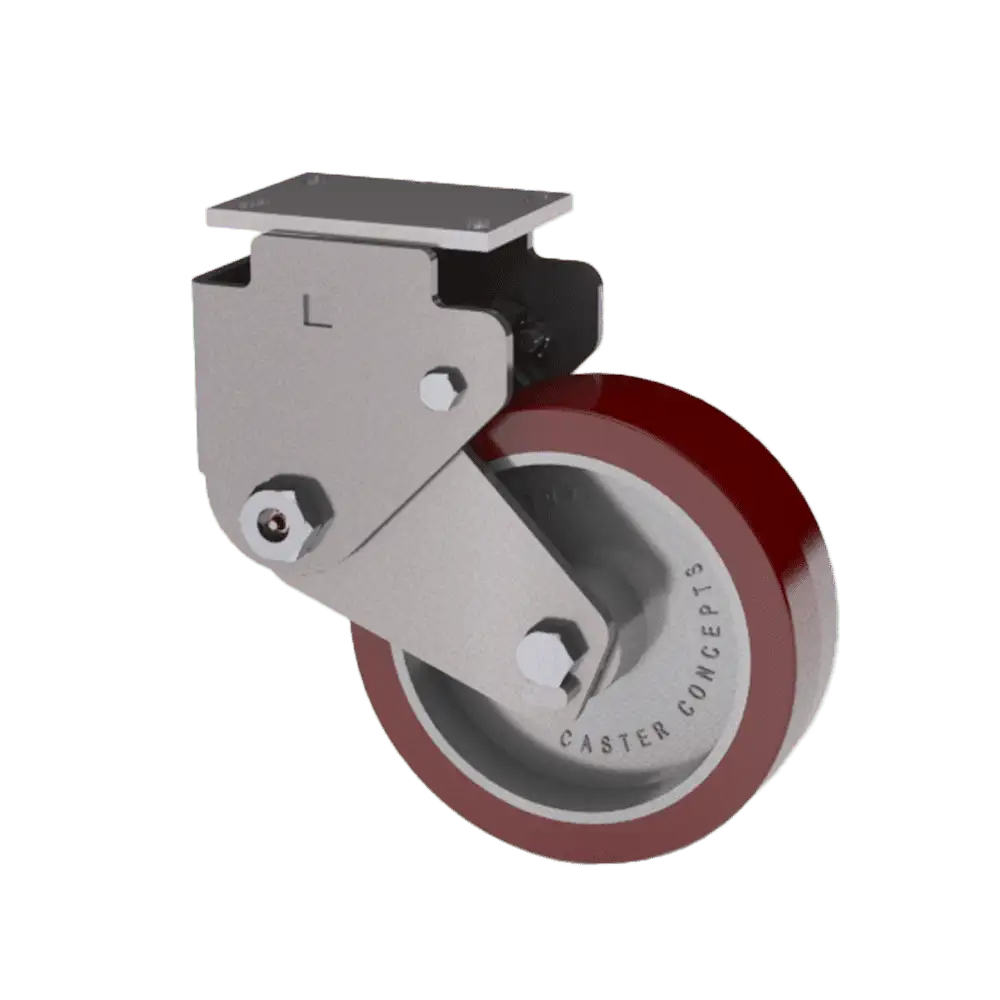

10×3 Standard Polyurethane Spring Loaded Rigid Caster

SKU: 83-10309-60-2
  • Load rating of 1700 lbs.
  • Overall height of 14.5 inches
  • 95A Standard PU Wheel - Non-marking, high tear strength, resistance to flat spotting, good solvent and water resistance. (Shore 95A Hardness)

$845.00$1,950.00 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*
Engineered Casters Produced and Shipped in 4 Days

Categories: , , , Tags:


Specifications

Product Type: Caster
Series: 83
Capacity: 1,700 lbs.
Caster Material: Steel
Wheel Material: Standard Polyurethane
Wheel Configuration: Single Wheel
Wheel Width: 3"
Wheel Diameter: 10"
Caster Style: Rigid Caster
Caster Type: Spring Loaded
Overall Height: 14.5"
*Temperature Range (Continuous): -50 to 200°F
*Temperature Range (Intermittent): -50 to 175°F
Top Plate Size: 6 x 7.5
Bolt Hole Pattern: 4.5 x 6
Bolt Size: 0.5"
Bearing Type: Precision Tapered Bearing
SKU: 83-10309-60-2
Caster Weight: 65 lbs.
*High temperature grease must be used over 200°F

Product Description

This 10-inch by 3-inch 83 series Spring-Loaded caster is designed to absorb shocks and reduce noise, these fixed casters excel on uneven surfaces and protect delicate loads. Our expert engineers determine the ideal spring deflection, ensuring reliable performance without causing damage. Built with high-strength chrome vanadium springs, they offer durability and cushioned loads, while the long swivel lead minimizes vibration during towing.

Paired with our general-purpose, Standard Polyurethane (Shore 95A Hardness) wheel, this caster becomes good for numerous industrial applications. It is non-marking with high tear strength and resistance to flat spotting, as well as a good solvent and water resistance. This wheel is capable carrying loads up to 3700 lbs. and has a 1-inch thick tread which is denoted by the H.D. in the wheel material. Featuring our precision tapered bearings, the wheels are capable of absorbing excessive side thrust loading and can be used where high speed operation is essential, all with a load rating of 1700 lbs.

Description

This 10-inch by 3-inch 83 series Spring-Loaded caster is designed to absorb shocks and reduce noise, these fixed casters excel on uneven surfaces and protect delicate loads. Our expert engineers determine the ideal spring deflection, ensuring reliable performance without causing damage. Built with high-strength chrome vanadium springs, they offer durability and cushioned loads, while the long swivel lead minimizes vibration during towing.

Paired with our general-purpose, Standard Polyurethane (Shore 95A Hardness) wheel, this caster becomes good for numerous industrial applications. It is non-marking with high tear strength and resistance to flat spotting, as well as a good solvent and water resistance. This wheel is capable carrying loads up to 3700 lbs. and has a 1-inch thick tread which is denoted by the H.D. in the wheel material. Featuring our precision tapered bearings, the wheels are capable of absorbing excessive side thrust loading and can be used where high speed operation is essential, all with a load rating of 1700 lbs.

Additional information

Weight 65 lbs
