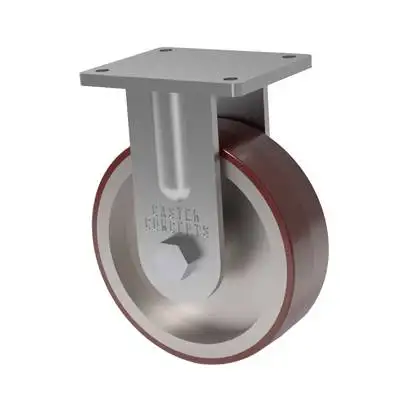

Picture may not be an exact representation of actual product*
10×3 Standard Polyurethane Rigid Caster
SKU: 80-10309-60-2
Load rating of 3000 lbs.
Overall height of 12.5 inches
95A Standard PU Wheel - Non-marking, high tear strength, resistance to flat spotting, good solvent and water resistance. (Shore 95A Hardness)
$390.00 – $975.00Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions. Price range does not include options or accessories* Engineered Casters Produced and Shipped in 4 Days
NOTICE: You must be logged in to download a CAD Model.
You can create an account or login using the links below. Once you're logged in we'll bring you back here.
Specifications
Product Type: Caster
Series: 80
Capacity: 3000 lbs.
Caster Material: Steel
Wheel Material: Standard Polyurethane
Wheel Configuration: Single Wheel
Wheel Type: Polyurethane
Wheel Width: 3.00"
Wheel Diameter: 10.00"
Caster Style: Rigid Caster
Overall Height: 12.50"
*Temperature Range (Continuous): '-50 to 200°F
*Temperature Range (Intermittent): '-50 to 175°F
Top Plate Size: 6 x 7.5
Bolt Hole Pattern: 4.5 x 6
Bolt Size: 0.5"
Bearing Type: Precision Tapered Bearing
SKU: 80-10309-60-2
Caster Weight: 49 lbs.
*High temperature grease must be used over 200°F
Product Description
This 10-inch by 3-inch 80 series extra heavy duty caster, is meticulously engineered to withstand the most abusive applications. The laser-cut formed legs provide additional strength, making them ideal for applications with side loading or skidding. Components are heat treated to achieve a hardness of 40 + 2 Rc. With exceptional strength and reliable construction, these fixed 80 Series Extra Heavy Duty Casters are the perfect choice for rugged industrial applications.
Paired with our general-purpose, Standard Polyurethane (Shore 95A Hardness) wheel, this caster becomes good for numerous industrial applications. It is non-marking with high tear strength and resistance to flat spotting, as well as a good solvent and water resistance. This wheel is capable carrying loads up to 3700 lbs. and has a 1-inch thick tread which is denoted by the H.D. in the wheel material. Featuring our precision tapered bearings, the wheels are capable of absorbing excessive side thrust loading and can be used where high speed operation is essential, all with a load rating of 3000 lbs.
This 10-inch by 3-inch 80 series extra heavy duty caster, is meticulously engineered to withstand the most abusive applications. The laser-cut formed legs provide additional strength, making them ideal for applications with side loading or skidding. Components are heat treated to achieve a hardness of 40 + 2 Rc. With exceptional strength and reliable construction, these fixed 80 Series Extra Heavy Duty Casters are the perfect choice for rugged industrial applications.
Paired with our general-purpose, Standard Polyurethane (Shore 95A Hardness) wheel, this caster becomes good for numerous industrial applications. It is non-marking with high tear strength and resistance to flat spotting, as well as a good solvent and water resistance. This wheel is capable carrying loads up to 3700 lbs. and has a 1-inch thick tread which is denoted by the H.D. in the wheel material. Featuring our precision tapered bearings, the wheels are capable of absorbing excessive side thrust loading and can be used where high speed operation is essential, all with a load rating of 3000 lbs.
