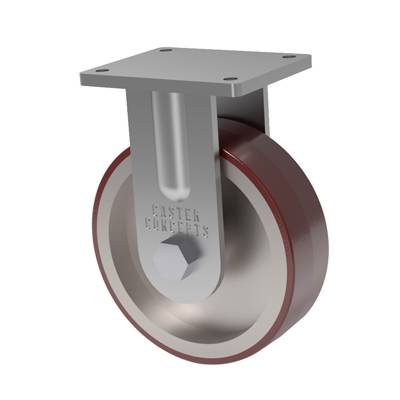

Picture may not be an exact representation of actual product*
10×3 Standard Polyurethane Rigid Caster
NOTICE: You must be logged in to download a CAD Model.
You can create an account or login using the links below. Once you're logged in we'll bring you back here.
Specifications
Product Type: Caster
Series: 80
Capacity: 3000 lbs.
Caster Material: Steel
Wheel Material: Standard Polyurethane
Wheel Configuration: Single Wheel
Wheel Type: Polyurethane
Wheel Width: 3.00"
Wheel Diameter: 10.00"
Caster Style: Rigid Caster
Overall Height: 12.50"
*Temperature Range (Continuous): -50 to 200°F
*Temperature Range (Intermittent): -50 to 175°F
Top Plate Size: 6 x 7.5
Bolt Hole Pattern: 4.5 x 6
Bolt Size: 0.5"
Bearing Type: Straight Roller Bearing
SKU: 80-10301-60-2
Caster Weight: 49 lbs.
*High temperature grease must be used over 200°F
Product Description
This 10-inch by 3-inch 80 series extra heavy duty caster, is meticulously engineered to withstand the most abusive applications. The laser-cut formed legs provide additional strength, making them ideal for applications with side loading or skidding. Components are heat treated to achieve a hardness of 40 + 2 Rc. With exceptional strength and reliable construction, these fixed 80 Series Extra Heavy Duty Casters are the perfect choice for rugged industrial applications.
Paired with our general-purpose, Standard Polyurethane (Shore 95A Hardness) wheel, this caster becomes good for numerous industrial applications. It is non-marking with high tear strength and resistance to flat spotting, as well as a good solvent and water resistance. This wheel is capable carrying loads up to 3700 lbs. and has a 1-inch thick tread which is denoted by the H.D. in the wheel material. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 3000 lbs.
Description
This 10-inch by 3-inch 80 series extra heavy duty caster, is meticulously engineered to withstand the most abusive applications. The laser-cut formed legs provide additional strength, making them ideal for applications with side loading or skidding. Components are heat treated to achieve a hardness of 40 + 2 Rc. With exceptional strength and reliable construction, these fixed 80 Series Extra Heavy Duty Casters are the perfect choice for rugged industrial applications.
Paired with our general-purpose, Standard Polyurethane (Shore 95A Hardness) wheel, this caster becomes good for numerous industrial applications. It is non-marking with high tear strength and resistance to flat spotting, as well as a good solvent and water resistance. This wheel is capable carrying loads up to 3700 lbs. and has a 1-inch thick tread which is denoted by the H.D. in the wheel material. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 3000 lbs.
