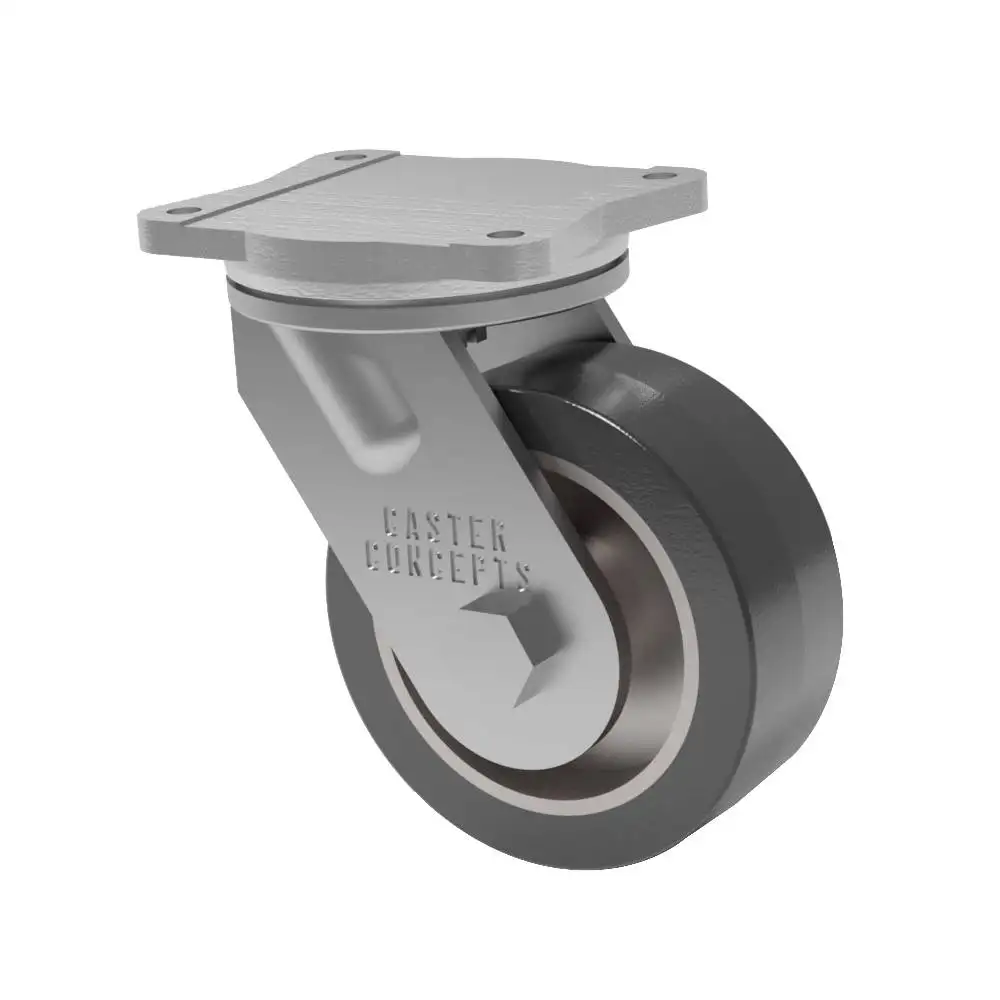

This 10-inch by 3-inch 85 series caster sets the standard for durability and precision with its high-quality construction. The yoke and top plate are forged through a drop forged process using C-1045 steel, ensuring exceptional strength and reliability. The kingpin is an integral component of the top plate, providing seamless integration. The top plate is machined to incorporate the raceway, while the threaded kingpin and yoke base raceway are machined to a 5-inch diameter. Although the raceway is not heat treated, a precision tapered load bearing (with dimensions of 3.875 inch ID x 5.00 inch OD) is positioned between the top plate and yoke base, enhancing precision and load-bearing capacity. To complete the assembly, a 1.25-inch precision tapered thrust bearing is pressed over the kingpin, engaging the yoke. This meticulous design results in a swivel section with outstanding load carrying capacity for its class. The 85 Series excels in providing an exceptionally tight tolerance fit, ensuring smooth and precise movements. Moreover, the integrally forged kingpin and slotted adjusting nut significantly contribute to the strength and longevity of the swivel section, further enhancing the caster’s lifespan.
In addition, the Mold-On Rubber wheel combines the strength and resilience of rubber with a robust wheel core for exceptional performance. With superior traction, shock absorption, and non-marking properties, these caster wheels provide smooth and controlled movement while protecting floors. Engineered to withstand heavy loads, they offer durability and longevity, thanks to the securely bonded mold-on rubber tread and solid wheel core. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 1000 lbs.
