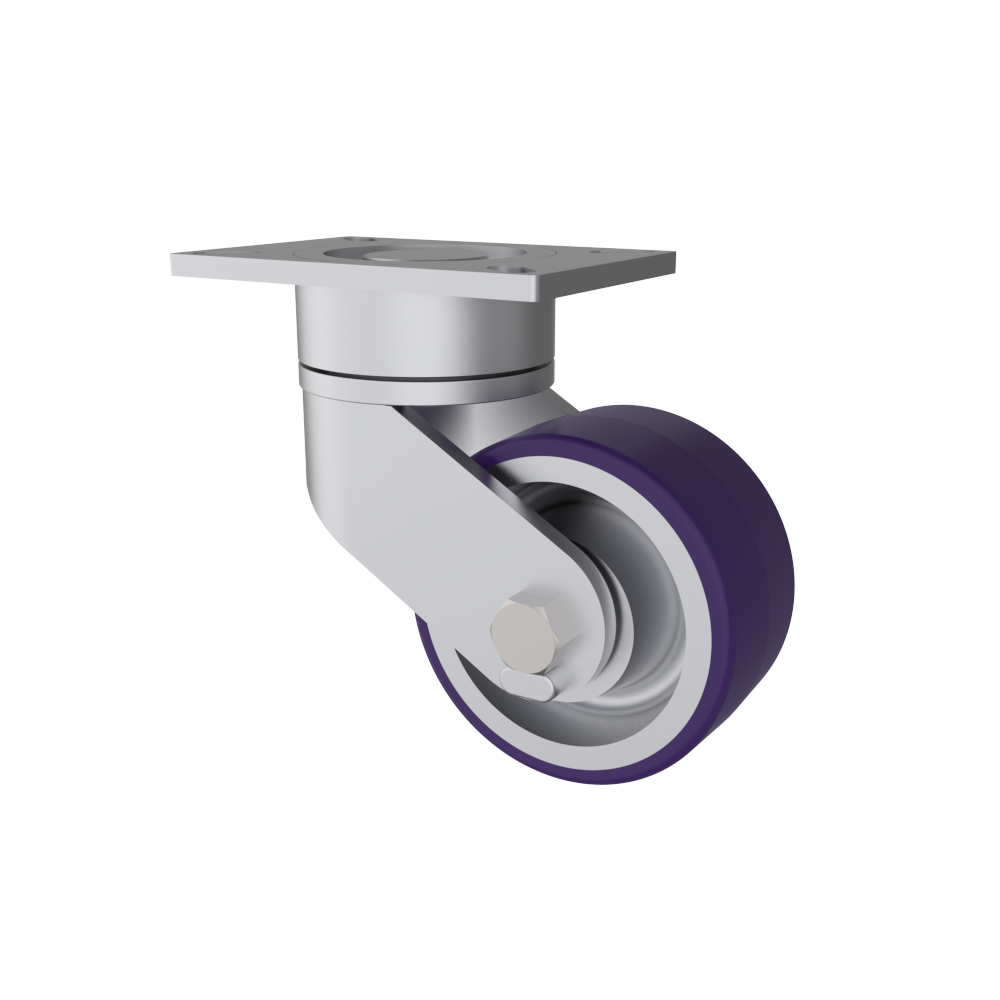

10×3 HPPT Polyurethane Maintenance Free Swivel Caster

SKU: 77-10302-90-1
  • Load rating of 3450 lbs.
  • Overall height of 12.5 inches
  • 92A HPPT PU Wheel - High-performance formulation, heat resistant, higher weight capacities, resistant to tearing and abrasions. (Shore 92A Hardness)

Categories: , , , , Tags:


Specifications

Product Type: Caster
Series: 77
Capacity: 3,450 lbs.
Caster Material: Steel
Wheel Material: HPPT Polyurethane
Wheel Configuration: Single Wheel
Wheel Width: 3"
Wheel Diameter: 10"
Caster Style: Swivel Caster
Caster Type: Maintenance Free
Overall Height: 12.5"
Swivel Radius: 8.63"
Swivel Lead: 3.5"
Top Plate Size: 5 x 7.25
Bolt Hole Pattern: 3.375 x 5.25 Slotted to 4.125 x 6.125
Bolt Size: 0.5"
Bearing Type: Precision Ball Bearing
SKU: 77-10302-90-1
Caster Weight: 36.09 lbs.

Product Description

This 10-inch by 3-inch 77 series caster utilizes a dual (precision sealed ball) bearing design, enabling smooth and easy rotation.  This caster series is the first in the Maintenance Free line to support 3″ wide wheels, up to a 10″ diameter. The dual precision sealed ball bearings help reduce push force when moving the cart from a stopped position while the wheels are not all parallel.

The wheel utilizes our HPPT 92A Polyurethane that is a high-performance solution designed for dynamic applications. This features a heat-resistant polyurethane formulation that can handle higher weight capacities, making it perfect for AGVs, Tuggers, and other high-speed, heavy-duty scenarios. With superior tear and abrasion resistance, it maintains its structural integrity over extended periods, while its excellent solvent resistance ensures durability. Featuring precision sealed ball bearings, the caster provides quiet operation and requires no maintenance, all with a load rating of 3450 lbs.

Description

This 10-inch by 3-inch 77 series caster utilizes a dual (precision sealed ball) bearing design, enabling smooth and easy rotation.  This caster series is the first in the Maintenance Free line to support 3″ wide wheels, up to a 10″ diameter. The dual precision sealed ball bearings help reduce push force when moving the cart from a stopped position while the wheels are not all parallel.

The wheel utilizes our HPPT 92A Polyurethane that is a high-performance solution designed for dynamic applications. This features a heat-resistant polyurethane formulation that can handle higher weight capacities, making it perfect for AGVs, Tuggers, and other high-speed, heavy-duty scenarios. With superior tear and abrasion resistance, it maintains its structural integrity over extended periods, while its excellent solvent resistance ensures durability. Featuring precision sealed ball bearings, the caster provides quiet operation and requires no maintenance, all with a load rating of 3450 lbs.

Additional information

Weight 36.09 lbs
