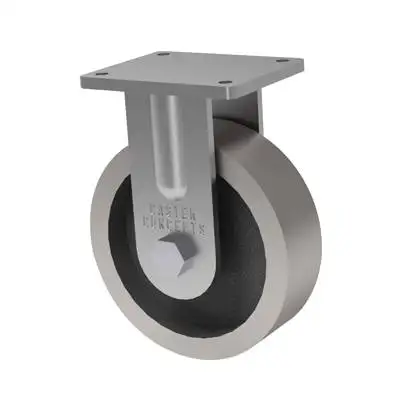

10×3 H.D. Forged Steel Rigid Caster

SKU: 80-10301-21-2
  • Load rating of 5000 lbs.
  • Overall height of 12.5 inches
  • Cast Iron Wheel - Durable and strong wheel material with high load-bearing capacity, suitable for heavy-duty applications. Resistant to wear and abrasion.

$390.00$975.00 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*
Engineered Casters Produced and Shipped in 4 Days

Categories: , , , Tags:


Specifications

Product Type: Caster
Series: 80
Capacity: 5,000 lbs.
Caster Material: Steel
Wheel Material: H.D. Forged Steel
Wheel Configuration: Single Wheel
Wheel Width: 3"
Wheel Diameter: 10"
Caster Style: Rigid Caster
Overall Height: 12.5"
*Temperature Range (Continuous): -40 to 320°F
*Temperature Range (Intermittent): -40 to 320°F
Top Plate Size: 6 x 7.5
Bolt Hole Pattern: 4.5 x 6
Bolt Size: 0.5"
Bearing Type: Straight Roller Bearing
SKU: 80-10301-21-2
Caster Weight: 54 lbs.
*High temperature grease must be used over 200°F

Product Description

This 10-inch by 3-inch 80 series extra heavy duty caster, is meticulously engineered to withstand the most abusive applications. The laser-cut formed legs provide additional strength, making them ideal for applications with side loading or skidding. Components are heat treated to achieve a hardness of 40 + 2 Rc. With exceptional strength and reliable construction, these fixed 80 Series Extra Heavy Duty Casters are the perfect choice for rugged industrial applications.

Combined with Forged Steel wheels, these casters become a powerhouse solution for heavy-duty industrial applications. These wheels are hot forged from high carbon steel billets, enhancing their grain structure, ductility, and tensile strength (64,000 psi). With precision machining, they meet tight tolerances, ensuring flat surfaces with rounded edges. Offering the greatest load capacity, impact strength, and rollability among caster wheels. With the proper wheels and bearings, these wheels are capable of withstanding temperatures up to 800 degrees. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 5000 lbs.

Description

This 10-inch by 3-inch 80 series extra heavy duty caster, is meticulously engineered to withstand the most abusive applications. The laser-cut formed legs provide additional strength, making them ideal for applications with side loading or skidding. Components are heat treated to achieve a hardness of 40 + 2 Rc. With exceptional strength and reliable construction, these fixed 80 Series Extra Heavy Duty Casters are the perfect choice for rugged industrial applications.

Combined with Forged Steel wheels, these casters become a powerhouse solution for heavy-duty industrial applications. These wheels are hot forged from high carbon steel billets, enhancing their grain structure, ductility, and tensile strength (64,000 psi). With precision machining, they meet tight tolerances, ensuring flat surfaces with rounded edges. Offering the greatest load capacity, impact strength, and rollability among caster wheels. With the proper wheels and bearings, these wheels are capable of withstanding temperatures up to 800 degrees. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 5000 lbs.

Additional information

Weight 54 lbs
