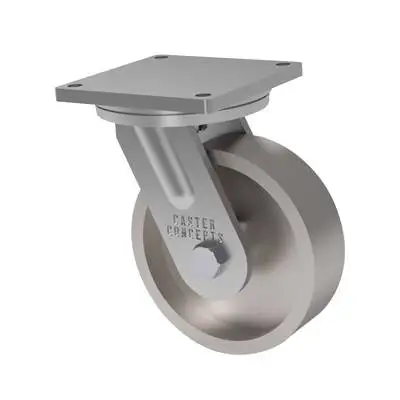

10×3 H.D. Cast Iron Swivel Caster

SKU: 95-10301-11-1
  • Load rating of 4000 lbs.
  • Overall height of 13 inches
  • Cast Iron Wheel - Durable and strong wheel material with high load-bearing capacity, suitable for heavy-duty applications. Resistant to wear and abrasion.

$473.41$766.98 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*
Engineered Casters Produced and Shipped in 4 Days

Categories: , , , Tags:


Specifications

Product Type: Caster
Series: 95
Capacity: 4,000 lbs.
Caster Material: Steel
Wheel Material: H.D. Cast Iron
Wheel Configuration: Single Wheel
Wheel Width: 3"
Wheel Diameter: 10"
Caster Style: Swivel Caster
Caster Type: Kingpin
Overall Height: 13"
Swivel Radius: 7.65"
Swivel Lead: 2.5"
Top Plate Size: 8.5 x 8.5
Bolt Hole Pattern: 7 x 7
Bolt Size: 0.625"
Bearing Type: Straight Roller Bearing
SKU: 95-10301-11-1
Caster Weight: 61 lbs.

Product Description

This 10-inch by 3-inch 95 Series caster is the perfect choice for applications demanding high load capacities and continuous use under load. With an integrally forged kingpin and slotted adjusting nut, this caster enhances strength and ensures long-lasting performance in the swivel section. Crafted from hot forged C-1045 steel, the 95 Series features a robust construction. The 7-inch diameter load raceway is precision-machined and accommodates 5/8 inch diameter ball bearings along with a 1-1/4 inch tapered thrust bearing. These components work together seamlessly, providing exceptional load-bearing capacity and reliable operation. The 95 Series Caster guarantees durability and longevity, making it an excellent solution for demanding industrial applications.

The wheels are constructed of premium Class 30 gray iron for maximum load capacity and impact strength. They feature heavy cross section castings for heavy duty use, abrasion resistance and a long service life. Each wheel is precision machined with rounded edges to finished tolerance. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 4000 lbs.

Description

This 10-inch by 3-inch 95 Series caster is the perfect choice for applications demanding high load capacities and continuous use under load. With an integrally forged kingpin and slotted adjusting nut, this caster enhances strength and ensures long-lasting performance in the swivel section. Crafted from hot forged C-1045 steel, the 95 Series features a robust construction. The 7-inch diameter load raceway is precision-machined and accommodates 5/8 inch diameter ball bearings along with a 1-1/4 inch tapered thrust bearing. These components work together seamlessly, providing exceptional load-bearing capacity and reliable operation. The 95 Series Caster guarantees durability and longevity, making it an excellent solution for demanding industrial applications.

The wheels are constructed of premium Class 30 gray iron for maximum load capacity and impact strength. They feature heavy cross section castings for heavy duty use, abrasion resistance and a long service life. Each wheel is precision machined with rounded edges to finished tolerance. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 4000 lbs.

Additional information

Weight 61 lbs
