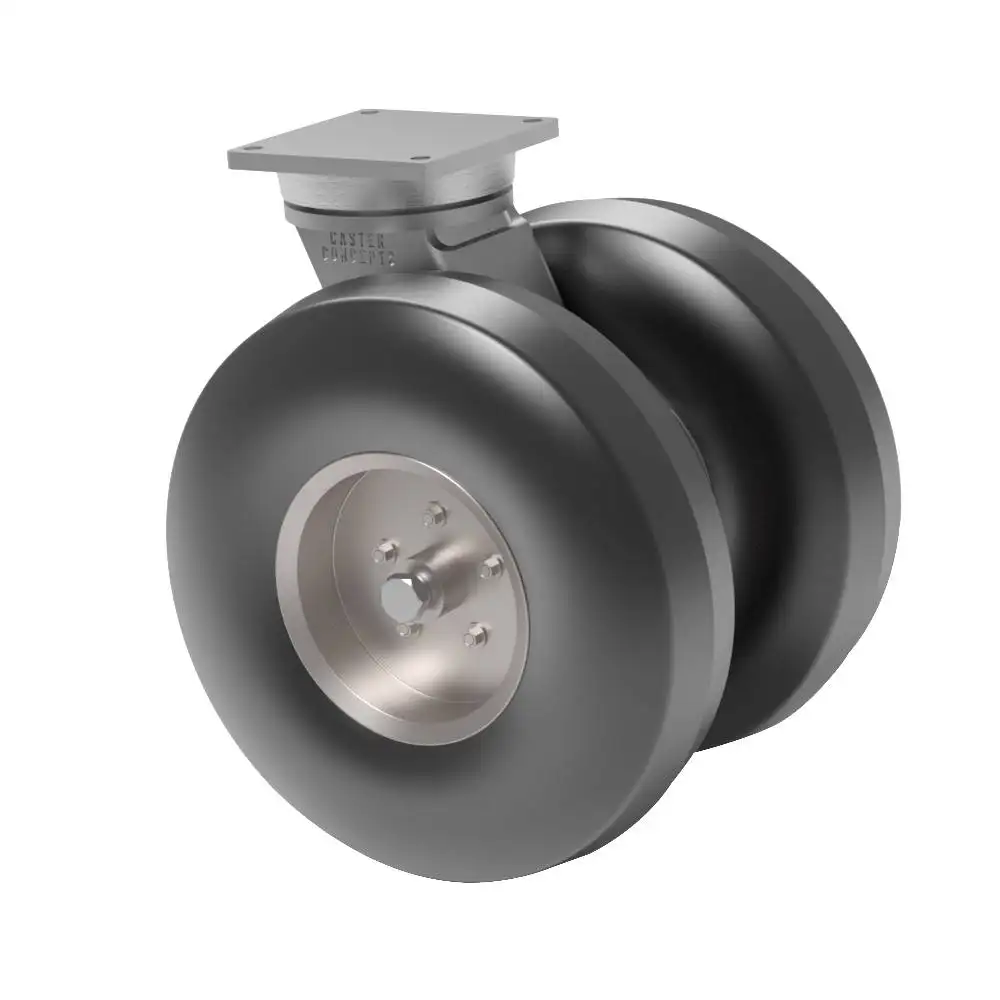

10×3 Dual Wheel H.D. Forged Steel Swivel Caster

SKU: 2-91-10301-21-1
  • Load rating of 12000 lbs.
  • Overall height of 13.5 inches
  • Cast Iron Wheel - Durable and strong wheel material with high load-bearing capacity, suitable for heavy-duty applications. Resistant to wear and abrasion.

Categories: , , , Tags:


Specifications

Product Type: Caster
Series: 91
Capacity: 12,000 lbs.
Caster Material: Steel
Wheel Material: H.D. Forged Steel
Wheel Configuration: Dual Wheel
Wheel Width: 3"
Wheel Diameter: 10"
Caster Style: Swivel Caster
Caster Type: Kingpinless
Overall Height: 13.5"
Swivel Radius: 8.28"
Swivel Lead: 2.5"
Top Plate Size: 8.5 x 8.5
Bolt Hole Pattern: 7 x 7
Bolt Size: 0.625"
Bearing Type: Straight Roller Bearing
SKU: 2-91-10301-21-1
Caster Weight: 123 lbs.

Product Description

This 10-inch by 3-inch 91 Series Extra Heavy Duty Kingpinless caster, is a highly acclaimed industrial solution that excels in rugged applications while minimizing maintenance costs. This caster is valued for its simplicity and ability to withstand industrial environments with prevalent shock loading. The top plate and yoke base are aligned using high-quality 3/4 inch hardened ball bearings, providing stability and reliability. The ingenious swivel section construction places the ball bearings in a sheer load position, ensuring exceptional strength and smooth operation even under heavy loads. With effortless swiveling capabilities, the 91 Series offers extended lifecycles and years of cost-effective operation. Constructed from hot forged C-1045 steel, this caster features a single ball race design with 7/8 inch diameter load/thrust ball bearings in a precision-machined 7-inch diameter raceway. This caster delivers durability, strength, and efficiency, making it the ideal choice for demanding industrial applications.



Dual Wheel Casters

Dual Wheel Caster configurations are engineered for exceptional load capacity, stability, and versatility in demanding industrial applications. With a dual wheel configuration and low overall height, these casters offer the highest capacity while maintaining space efficiency. Our casters ensure even weight distribution, reducing pressure on flooring and ground surfaces to prevent damage. The innovative design allows for the use of smaller diameter dual wheels, providing optimal load distribution and effortless directional changes.

Combined with Forged Steel wheels, these casters become a powerhouse solution for heavy-duty industrial applications. These wheels are hot forged from high carbon steel billets, enhancing their grain structure, ductility, and tensile strength (64,000 psi). With precision machining, they meet tight tolerances, ensuring flat surfaces with rounded edges. Offering the greatest load capacity, impact strength, and rollability among caster wheels. With the proper wheels and bearings, these wheels are capable of withstanding temperatures up to 800 degrees. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 12000 lbs.

Description

This 10-inch by 3-inch 91 Series Extra Heavy Duty Kingpinless caster, is a highly acclaimed industrial solution that excels in rugged applications while minimizing maintenance costs. This caster is valued for its simplicity and ability to withstand industrial environments with prevalent shock loading. The top plate and yoke base are aligned using high-quality 3/4 inch hardened ball bearings, providing stability and reliability. The ingenious swivel section construction places the ball bearings in a sheer load position, ensuring exceptional strength and smooth operation even under heavy loads. With effortless swiveling capabilities, the 91 Series offers extended lifecycles and years of cost-effective operation. Constructed from hot forged C-1045 steel, this caster features a single ball race design with 7/8 inch diameter load/thrust ball bearings in a precision-machined 7-inch diameter raceway. This caster delivers durability, strength, and efficiency, making it the ideal choice for demanding industrial applications.

Dual Wheel Casters

Dual Wheel Caster configurations are engineered for exceptional load capacity, stability, and versatility in demanding industrial applications. With a dual wheel configuration and low overall height, these casters offer the highest capacity while maintaining space efficiency. Our casters ensure even weight distribution, reducing pressure on flooring and ground surfaces to prevent damage. The innovative design allows for the use of smaller diameter dual wheels, providing optimal load distribution and effortless directional changes.

Combined with Forged Steel wheels, these casters become a powerhouse solution for heavy-duty industrial applications. These wheels are hot forged from high carbon steel billets, enhancing their grain structure, ductility, and tensile strength (64,000 psi). With precision machining, they meet tight tolerances, ensuring flat surfaces with rounded edges. Offering the greatest load capacity, impact strength, and rollability among caster wheels. With the proper wheels and bearings, these wheels are capable of withstanding temperatures up to 800 degrees. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 12000 lbs.

Additional information

Weight 123 lbs
