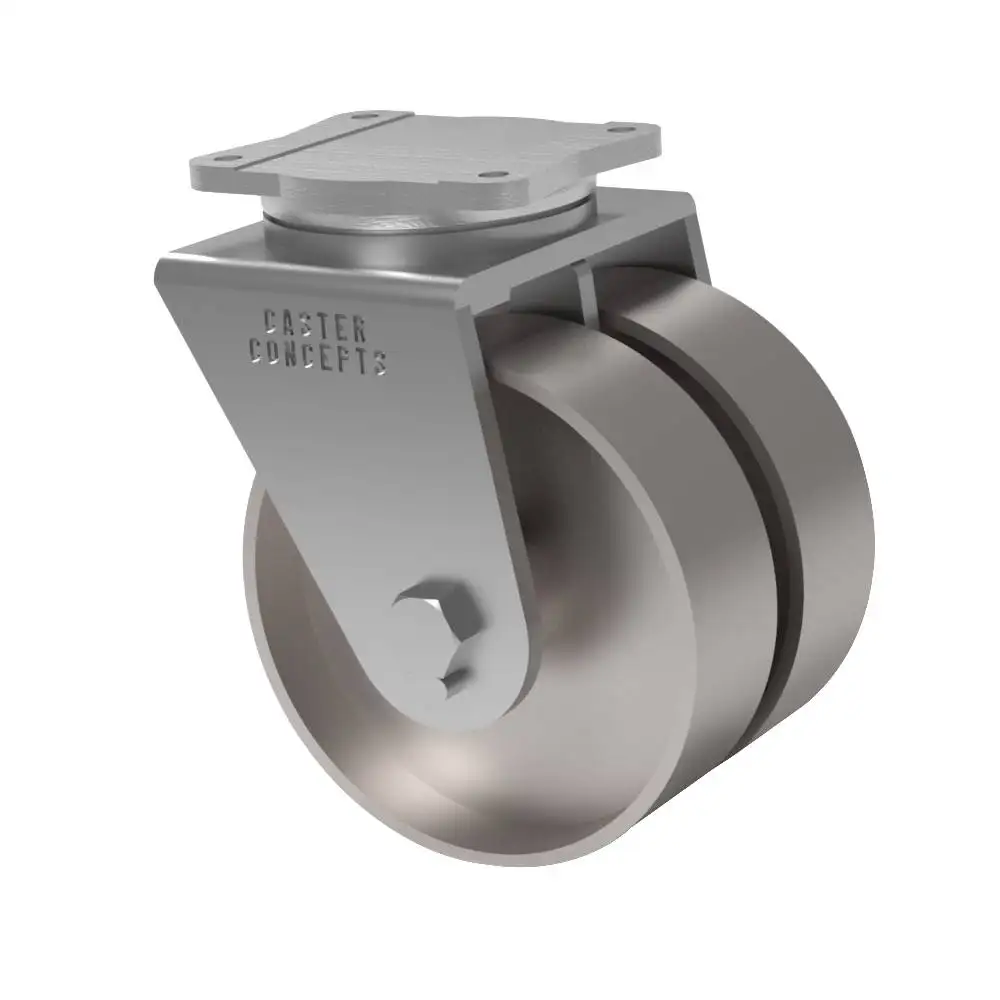

10×3 Dual Wheel Cast Iron Rigid Caster

SKU: 86-10301-10-2
  • Load rating of 6000 lbs.
  • Overall height of 13 inches
  • Cast Iron Wheel - Durable and strong wheel material with high load-bearing capacity, suitable for heavy-duty applications. Resistant to wear and abrasion.

Categories: , , , Tags:


Specifications

Product Type: Caster
Series: 86
Capacity: 6,000 lbs.
Caster Material: Steel
Wheel Material: Cast Iron
Wheel Configuration: Dual Wheel
Wheel Width: 3"
Wheel Diameter: 10"
Caster Style: Rigid Caster
Overall Height: 13"
*Temperature Range (Continuous): -40 to 320°F
*Temperature Range (Intermittent): -40 to 320°F
Top Plate Size: 6 x 7.5
Bolt Hole Pattern: 4.5 x 6
Bolt Size: 0.5"
Bearing Type: Straight Roller Bearing
SKU: 86-10301-10-2
Caster Weight: 71 lbs.
*High temperature grease must be used over 200°F

Product Description

This 10-inch by 3-inch 86 series Dual Wheel caster is designed for excellent load limit, strength, and adaptability in requesting modern applications. With a dual wheel setup and low by and significant level, these casters offer the most elevated limit while keeping up with space proficiency. Our casters guarantee even weight dissemination, reducing strain on tier and ground surfaces to forestall harm. The inventive plan considers the utilization of more modest-width dual wheels, giving ideal burden circulation and easy directional changes. Our dual wheel rigid casters with wavering axles adjust consistently for lopsided surfaces, guaranteeing soundness and execution.



The wheels are developed of premium Class 30 gray iron for the most extreme load limits and effect strength. They include heavy cross segment castings for heavy duty use, scraped spot obstruction, and extended help life. Each wheel is accurately machined with adjusted edges to complete resistance. Loaded with our straight roller bearings, which are best for heavy loads and are an incredible choice while confronting inordinate push stacking, these casters are evaluated for 6000 lbs.

Description

This 10-inch by 3-inch 86 series Dual Wheel caster is designed for excellent load limit, strength, and adaptability in requesting modern applications. With a dual wheel setup and low by and significant level, these casters offer the most elevated limit while keeping up with space proficiency. Our casters guarantee even weight dissemination, reducing strain on tier and ground surfaces to forestall harm. The inventive plan considers the utilization of more modest-width dual wheels, giving ideal burden circulation and easy directional changes. Our dual wheel rigid casters with wavering axles adjust consistently for lopsided surfaces, guaranteeing soundness and execution.

The wheels are developed of premium Class 30 gray iron for the most extreme load limits and effect strength. They include heavy cross segment castings for heavy duty use, scraped spot obstruction, and extended help life. Each wheel is accurately machined with adjusted edges to complete resistance. Loaded with our straight roller bearings, which are best for heavy loads and are an incredible choice while confronting inordinate push stacking, these casters are evaluated for 6000 lbs.

Additional information

Weight 71 lbs
