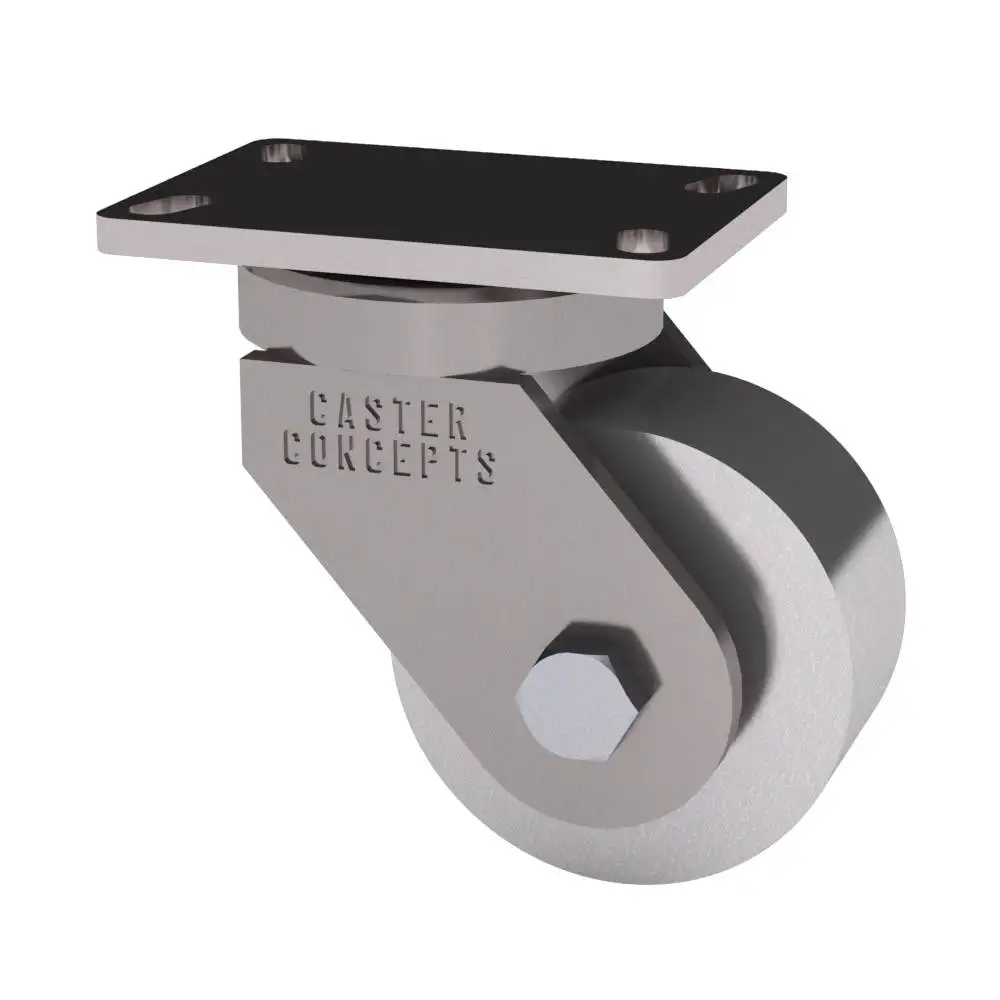

10×3 Cast Iron Swivel Caster

SKU: 71-10309-10-1
  • Load rating of 3500 lbs.
  • Overall height of 12.5 inches
  • Cast Iron Wheel - Durable and strong wheel material with high load-bearing capacity, suitable for heavy-duty applications. Resistant to wear and abrasion.

$252.64$532.23 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*
Engineered Casters Produced and Shipped in 4 Days

Categories: , , , Tags:


Specifications

Product Type: Caster
Series: 71
Capacity: 3,500 lbs.
Caster Material: Steel
Wheel Material: Cast Iron
Wheel Configuration: Single Wheel
Wheel Width: 3"
Wheel Diameter: 10"
Caster Style: Swivel Caster
Caster Type: Kingpinless
Overall Height: 12.5"
Swivel Radius: 8.14"
Swivel Lead: 3"
Top Plate Size: 5 x 7.25
Bolt Hole Pattern: 3.375 x 5.25 Slotted to 4.125 x 6.125
Bolt Size: 0.5"
Bearing Type: Precision Tapered Bearing
SKU: 71-10309-10-1
Caster Weight: 40 lbs.

Product Description

This 10-inch by 3-inch 71 series caster has the highest load capacity rating in our line-up of single ball race swivel sections. The bearings in the swivel section act as both load and thrust components and lock the swivel section together to distribute the load over a larger area.

The wheels are constructed of premium Class 30 gray iron for maximum load capacity and impact strength. They feature heavy cross section castings for heavy duty use, abrasion resistance and a long service life. Each wheel is precision machined with rounded edges to finished tolerance. Featuring our precision tapered bearings, the wheels are capable of absorbing excessive side thrust loading and can be used where high speed operation is essential, all with a load rating of 3500 lbs.

Description

This 10-inch by 3-inch 71 series caster has the highest load capacity rating in our line-up of single ball race swivel sections. The bearings in the swivel section act as both load and thrust components and lock the swivel section together to distribute the load over a larger area.

The wheels are constructed of premium Class 30 gray iron for maximum load capacity and impact strength. They feature heavy cross section castings for heavy duty use, abrasion resistance and a long service life. Each wheel is precision machined with rounded edges to finished tolerance. Featuring our precision tapered bearings, the wheels are capable of absorbing excessive side thrust loading and can be used where high speed operation is essential, all with a load rating of 3500 lbs.

Additional information

Weight 40 lbs
