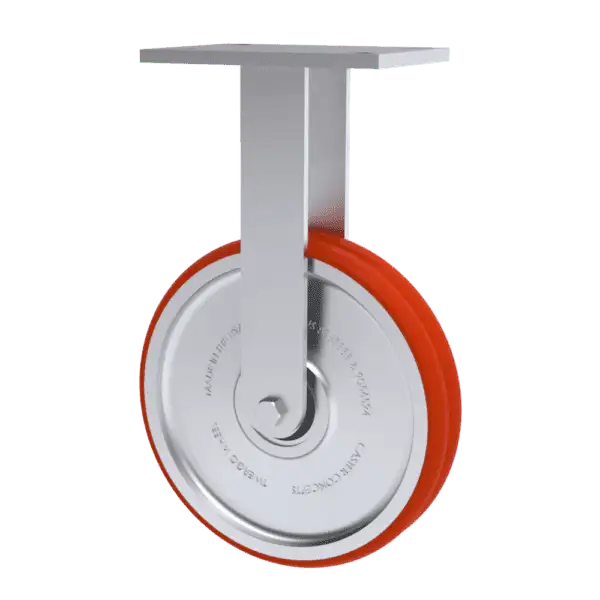

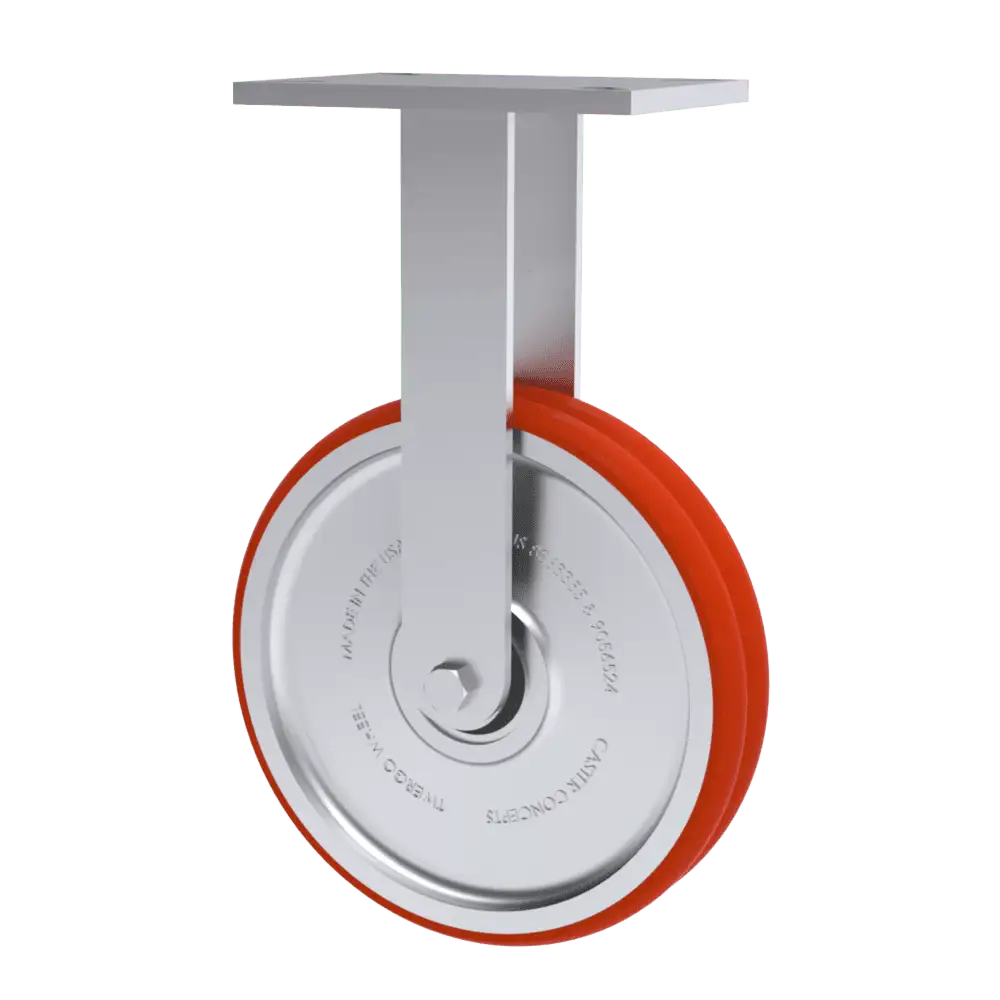

10×2 T/R Polyurethane Rigid Caster W/ TWERGO Wheel

SKU: 134-10202-93-2
  • Load rating of 1600 lbs.
  • Overall height of 15.25 inches
  • T/R 85A PU Wheel - Industrial strength with a softer touch, high tear and debris resistance, moderate solvent and oil resistance. (Shore 85A Hardness)

Categories: , , , , Tags:


Specifications

Product Type: Caster
Series: 134
Capacity: 1,600 lbs.
Caster Material: Steel
Wheel Material: T/R Polyurethane
Wheel Configuration: Single Wheel
Wheel Type: TWERGO
Wheel Width: 2"
Wheel Diameter: 10"
Caster Style: Rigid Caster
Overall Height: 15.25"
*Temperature Range (Continuous): -50 to 200°F
*Temperature Range (Intermittent): -50 to 175°F
Top Plate Size: 5 x 7.25
Bolt Hole Pattern: 3.375 x 5.25 Slotted to 4.125 x 6.125
Bolt Size: 0.5"
Bearing Type: Precision Ball Bearing
SKU: 134-10202-93-2
Caster Weight: 28.3 lbs.
*High temperature grease must be used over 200°F

Product Description

This 10-inch by 2-inch 134 series Swivel on Swivel (SoS) Caster, is a high-performance solution designed for exceptional maneuverability and reduced push/pull forces. The caster features 1/4" x 2" steel legs that are formed and continuously welded for maximum strength and stability. The 1/2" diameter axle ensures durability and reliability.

Combined with a T/R 85A polyurethane wheel, this caster is a versatile solution that brings industrial-strength performance with a softer touch. This specialized formulation is engineered for easy and quiet rolling, making it an ideal choice for a wide range of applications. With its high tear and debris resistance, this wheel ensures exceptional durability and longevity. While offering moderate solvent and oil resistance, it is important to note its lack of water resistance and unsuitability for hot and humid environments due to the risk of microbial attack. Featuring precision sealed ball bearings, the caster wheel provides quiet operation and requires no maintenance, all with a load rating of 1600 lbs.

Description

This 10-inch by 2-inch 134 series Swivel on Swivel (SoS) Caster, is a high-performance solution designed for exceptional maneuverability and reduced push/pull forces. The caster features 1/4″ x 2″ steel legs that are formed and continuously welded for maximum strength and stability. The 1/2″ diameter axle ensures durability and reliability.

Combined with a T/R 85A polyurethane wheel, this caster is a versatile solution that brings industrial-strength performance with a softer touch. This specialized formulation is engineered for easy and quiet rolling, making it an ideal choice for a wide range of applications. With its high tear and debris resistance, this wheel ensures exceptional durability and longevity. While offering moderate solvent and oil resistance, it is important to note its lack of water resistance and unsuitability for hot and humid environments due to the risk of microbial attack. Featuring precision sealed ball bearings, the caster wheel provides quiet operation and requires no maintenance, all with a load rating of 1600 lbs.

Additional information

Weight 28.3 lbs
