Specifications
Product Type: Caster
Series: 112
Capacity: 1,500 lbs.
Caster Material: Steel
Wheel Material: ErgoTread
Wheel Configuration: Single Wheel
Wheel Type: TWERGO
Wheel Width: 2.00"
Wheel Diameter: 10.00"

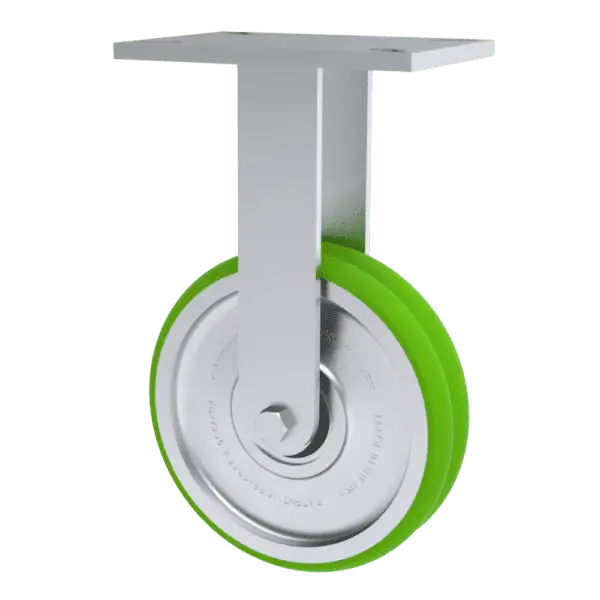

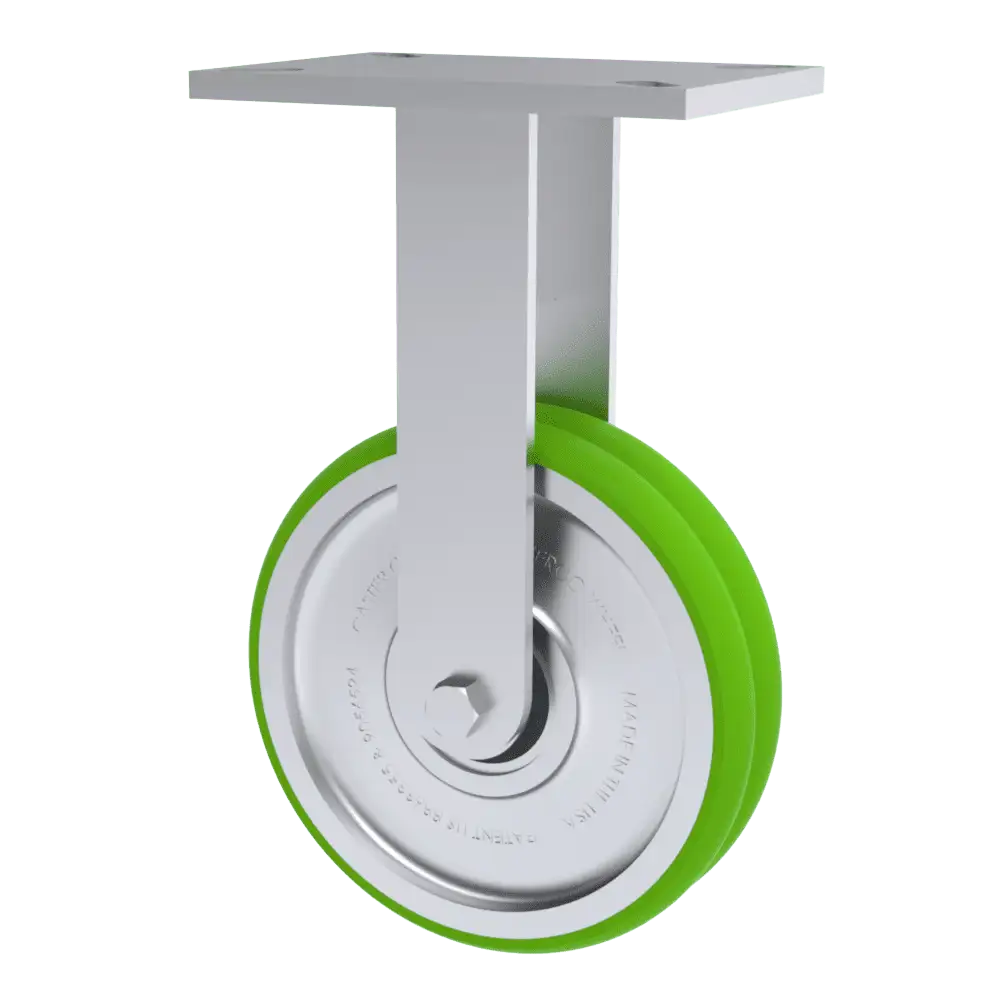

Caster Style: Rigid Caster
Overall Height: 13.88"
*Temperature Range (Continuous): '-50 to 200°F
*Temperature Range (Intermittent): '-50 to 175°F
Top Plate Size: 4.5 x 6.25
Bolt Hole Pattern: 2.438 x 4.938 Slotted to 3.375 x 5.25
Bolt Size: 0.5"
Bearing Type: Precision Ball Bearing
SKU: 112-10202-44-2
Caster Weight: 30.3 lbs.
*High temperature grease must be used over 200°F
Product Description
This 10-inch by 2-inch 112 series Swivel on Swivel (SoS) Caster, is a high-performance solution designed for exceptional maneuverability and reduced push/pull forces. The caster features 1/4" x 2" steel legs that are formed and continuously welded for maximum strength and stability. The 1/2" diameter axle ensures durability and reliability.
The wheel utilizes our ErgoTread formulation that consists of a high-rebound, energy returning polyurethane. Featuring precision sealed ball bearings, the caster wheel provides quiet operation and requires no maintenance, all with a load rating of 1500 lbs.
This 10-inch by 2-inch 112 series Swivel on Swivel (SoS) Caster, is a high-performance solution designed for exceptional maneuverability and reduced push/pull forces. The caster features 1/4″ x 2″ steel legs that are formed and continuously welded for maximum strength and stability. The 1/2″ diameter axle ensures durability and reliability.
The wheel utilizes our ErgoTread formulation that consists of a high-rebound, energy returning polyurethane. Featuring precision sealed ball bearings, the caster wheel provides quiet operation and requires no maintenance, all with a load rating of 1500 lbs.
