55 Series – 1,000 Lbs. Max Capacity – 4 x 5 Top Plate – Maintenance Free

Swivel Section: Sealed precision ball bearing (2.83 inch OD) with hardened raceways and neoprene seals is the foundation of the caster

Legs: ¼ inch x 2 inch laser cut mild steel, CNC formed and continuously welded on the inside and outside of the yoke base.

Kingpin: Kingpinless style design with precision ball bearing.

Axle: ½ inch diameter, zinc plated, fine thread

Lubrication: Sealed ball bearing is lubricated and requires zero maintenance.

Wheels: 4 inch to 8 inch diameter wheels are available with sealed precision ball bearings.

Finish: Clear zinc plating, wet paint and powder coat paint are options.

Top Plate: The top plate is laser cut mild steel and holds the maintenance free bearings firmly in place-4 inch X 5 inch standard size. Optional sizes available

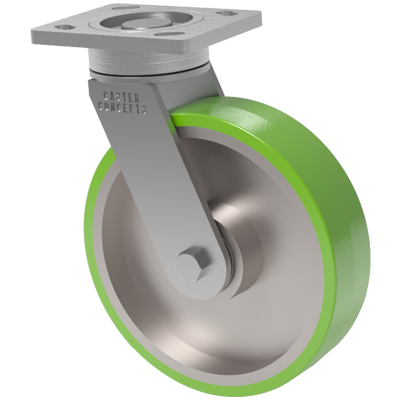

55 Series Caster

Overview

The 55 Series provides the ultimate maintenance free combination. The swivel section is made from a high quality precision ball bearing. The raceways of the bearing are hardened for long life and the bearing is then sealed with neoprene seals to assure protection from contamination. No greasing is necessary. The smooth swivel action combined with an extended lead, help to lower ergonomic forces and minimize employee injuries.

Application

Excellent for production racks power transported and manually handled, mobile fixtures, parts bins, conveyer systems, and other applications where maintenance free casters and ergonomics are concerns.

Custom CAD

Options

Caster Concepts has a wide variety of caster options. Many of these not only improve function – but also provide safety and add longevity to the product. When considering safety options, the most common consideration would be caster locks, caster brakes, toe guards, and reinforced legs. Options that extend the life of a caster are primarily options that seal the bearing of the caster to prevent contamination of the precision parts.

Other options include threaded zerks for when an application is difficult and high level of maintenance is required and rack brush wipers that keep debris from stopping movement or damaging a wheel. These options can be added at the time of manufacturing or after the caster is fully assembled.


Brakes


Locks


More
