How the right casters offer easier maneuverability and reduce power consumption in AGVs.

Automated Guided Vehicles (AGVs) have become essential in various industries, particularly in manufacturing and warehousing environments. These vehicles are designed to transport materials efficiently and autonomously, improving productivity and reducing labor costs.

One of the critical factors influencing AGV performance is the selection of appropriate casters, which facilitate smooth movement and maneuverability.

The proper caster can significantly impact the ease of operation and power consumption, ultimately contributing to overall efficiency. For this reason, they play a critical role in achieving the desired output from an AGV system.

Key Takeaways

  • Optimal caster selection is critical to AGV performance, reducing power consumption and increasing battery life while minimizing wear and tear on components.
  • Factors to consider when choosing casters for AGVs include load weight capacity, material type, rolling resistance, swivel radius, and mounting configuration.
  • High-quality, maintenance-free casters designed for industrial settings can save money on repairs and replacements while minimizing safety risks.
  • Choosing the right caster design tailored to unique application needs enables industries to maximize efficiency while minimizing energy consumption for their AGVs.

Choosing the Right Caster for Your AGV

Several factors must be considered when choosing casters for your AGV, including load weight capacity, material type, and rolling resistance. Investing in high-quality, maintenance-free casters specifically designed for industrial settings can save money on repairs and replacements while minimizing the safety risks associated with faulty or inadequate casters.

When selecting the best caster for your AGV, consider the following key elements:

Load weight capacity

First, you must ensure that the chosen caster can support the maximum weight anticipated on the AGV. This means you’ll have to choose a caster that can accommodate and exceed (for safety reasons) the heaviest load your AGV will transport to prevent caster failure from overloading.

Purple Polyurethane Caster WheelsCaster material

Evaluate materials like nylon, polyurethane, rubber, or steel based on their durability and compatibility with floor conditions in the operating environment. Depending on your specific needs, certain materials might be better suited for the application than others. For example, our 92A HPPT Poly tread resists heat buildup and can carry higher weight capacities, making it ideal for AGVs, Tuggers, and other higher-speed, higher-weight applications.

Caster wheel size

The caster wheel size should be proportionate to the load weight, as smaller caster wheels tend to distribute the load more evenly and provide better overall stability [1]. Additionally, a more giant wheel means less effort to push it along, so you’ll need to weigh your priorities between maneuverability and longevity.

Caster brake type

When evaluating the caster brake type, consider the environment in which it will be used and how often you anticipate making adjustments.

A rigid-type brake is typically best for high-traffic or heavier loads as it provides more stability than a swivel-type brake. In contrast, swivel brakes are easier to maneuver over uneven surfaces and take up less space. Additionally, some caster brakes require a lever to engage them. Others have built-in pads that allow for manual activation.

Rolling resistance and power consumption

You can always try to optimize energy efficiency by selecting a caster with low rolling resistance to minimize friction between wheel surfaces and flooring.

Considering these factors when choosing maintenance-free casters for your AGV, you will optimize its overall performance and extend its service life while reducing power consumption during operation. This ultimately leads to improved productivity within industrial settings where AGVs are critical in transporting heavy loads safely and efficiently throughout facilities.

Improving Maneuverability

Enhancing the maneuverability of an automated guided vehicle (AGV) is based on the ease of directional changes and how well the caster accommodates various floor conditions. A crucial component that greatly influences mobility [2], energy consumption, and overall performance within industrial settings.

For example, casters with a large swivel radius facilitate smoother turning movements while reducing resistance against the driving force of the AGV. And low rolling resistance is achieved by choosing wheels made from materials like polyurethane or high-quality rubber, which can improve agility by minimizing friction between the wheel and the floor surface. This reduction in resistance ultimately results in lower energy consumption during operation and contributes to better overall performance for AGVs in their designated workspaces.

Swivel on Swivel Caster

Swivel on Swivel Caster

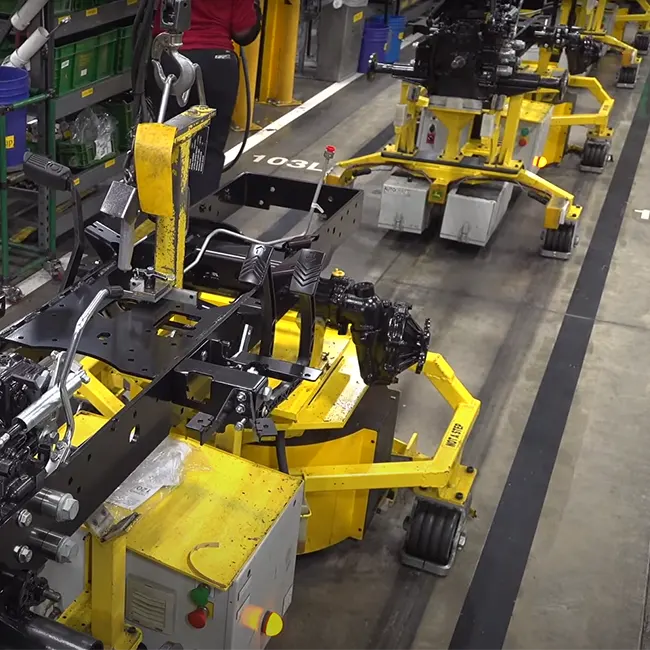

For example, innovative caster designs such as Twergo wheels or our swivel-on-swivel caster (SOS) have been introduced to address these concerns, providing more efficient solutions for AGV applications.

Specifically, Twergo wheels are designed with multiple wheelsets mounted on a single axle that work together to minimize friction during turns; this results in less energy consumption than traditional caster wheels.

Similarly, A swivel caster with lock provides enhanced agility by allowing simultaneous rotation around two axes instead of one; this design reduces drag and allows smoother directional changes without excessive force or energy expenditure.

Reducing Power Usage

There are several ways in which a careful selection of the right caster can lead to reduced friction between the wheel and the ground, resulting in less energy required for movement.

For example, selecting a caster with an appropriate wheel diameter can help reduce the energy needed to move it. This is achieved by ensuring the wheel’s contact patch with the ground surface is as small as possible.

Several factors contribute to reducing power usage when selecting the right caster for AGVs:

  • Material choice: Utilizing high-quality materials such as polyurethane or nylon wheels can provide a smoother rolling experience, decreasing energy consumption.
  • Bearing selection: Precision bearings reduce rolling resistance and improve overall efficiency, ultimately lowering power requirements for AGV operation.
  • Caster configuration: Optimal caster placement and configuration can enhance weight distribution across all wheels, ensuring minimal frictional losses while maintaining stability during movement.

Save Money On Repairs And Replacements With The Right Caster

High-quality casters designed for industrial settings can save money in the long run by minimizing repair and replacement costs. Due to their robust construction, these casters are more durable than their cheaper counterparts and require less frequent maintenance and replacement.

For this reason, although it might be more costly initially, investing in high-quality casters could be a significant investment. By choosing the right caster for your application, you can be sure it will last longer under typical operational conditions.

Final Thoughts

In conclusion, selecting the appropriate caster for an AGV significantly impacts its overall performance, maneuverability, and power efficiency. A suitable caster design will optimize energy consumption while providing ease of movement in various operating conditions.

To maximize the efficiency of an AGV system, it is essential to consider factors such as load capacity, wheel material, and bearing type during the caster selection process. Ultimately, this decision ensures improved productivity and reduced operational costs in industrial settings.

And if you need any help making the right choice, Caster Concepts is here to help. Our commitment to manufacturing all equipment in the US, our receipt of the Governors Corporate Impact Award, and our long-standing reputation as a leader in caster solutions for a variety of industries, including automotive, aerospace, marine, agriculture, and AGV casters, speaks volumes about our dedication to providing the best products on the market.

We pride ourselves on being able to help our customers find the best caster solution for their AGV, taking into account factors such as maneuverability and energy efficiency. Contact us today. With our extensive experience and expertise in this field, we are confident that we can provide the caster that will meet your needs and exceed your expectations.


[1] Zepeda, R., Chan, F., & Sawatzky, B. (2016). The effect of caster wheel diameter and mass distribution on drag forces in manual wheelchairs. Journal of Rehabilitation Research & Development, 53(6).

[2] Tomlinson, J. D. (2000). Managing maneuverability and rear stability of adjustable manual wheelchairs: an update. Physical therapy, 80(9), 904-911.
