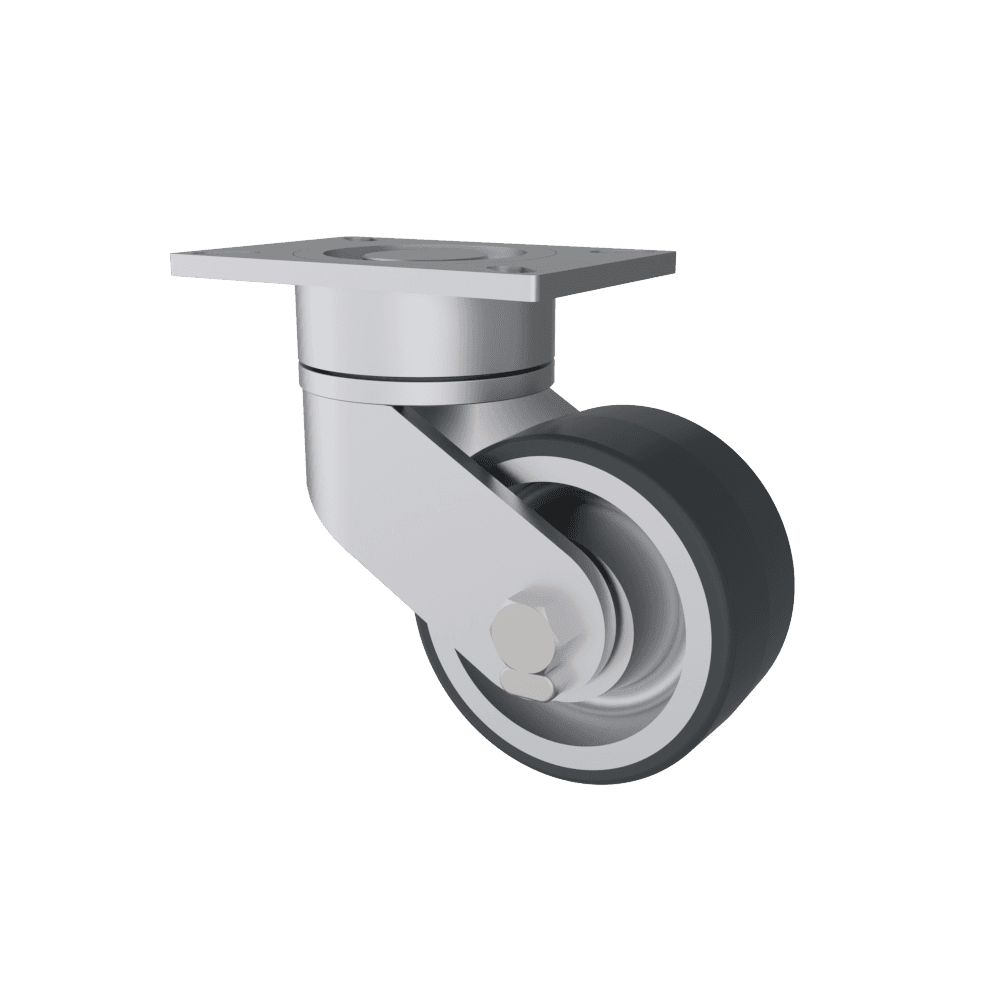

8x3 T/R-95 Polyurethane Maintenance Free Swivel Caster

SKU: 77-08302-91-1

8x3 T/R-95 Polyurethane Maintenance Free Swivel Caster

Caster
  • Load rating of 2800 lbs.
  • Overall height of 10.5 inches
  • T/R 95A PU Wheel - High tear resistance, extended wear, ergonomic benefits, good solvent and oil resistance. (Shore 95A Hardness)

Features

Easy SwivelErgonomic CastersFlat Faced CastersMaintenance Free Casters

Specifications

Series
77
Capacity
2,800
Overall Height
10.5"
Bearing Type
Precision Ball Bearing
Wheel Material
T/R-95 Polyurethane
Wheel Diameter
8"
Wheel Width
3"
Wheel Configuration
Single Wheel
Caster Material
Steel
Caster Style
Swivel Caster
Caster Type
Maintenance Free
Swivel Radius
7.65"
Swivel Lead
3.5"
Bolt Size
0.5
Top Plate Size
5 x 7.25
Bolt Hole Pattern
3.375 x 5.25 Slotted to 4.125 x 6.125

Description

This 8-inch by 3-inch 77 series caster utilizes a dual (precision sealed ball) bearing design, enabling smooth and easy rotation.  This caster series is the first in the Maintenance Free line to support 3″ wide wheels, up to a 10″ diameter. The dual precision sealed ball bearings help reduce push force when moving the cart from a stopped position while the wheels are not all parallel. The T/R95 Polyurethane caster wheel features our specialized formulation designed for challenging applications. With superior tear resistance and increased strength, this wheel ensures extended wear and durability even in demanding environments. The T/R 95 tread offers enhanced ergonomic benefits and a longer service life compared to standard 95A polyurethane. Featuring precision sealed ball bearings, the caster provides quiet operation and requires no maintenance, all with a load rating of 2800 lbs.
