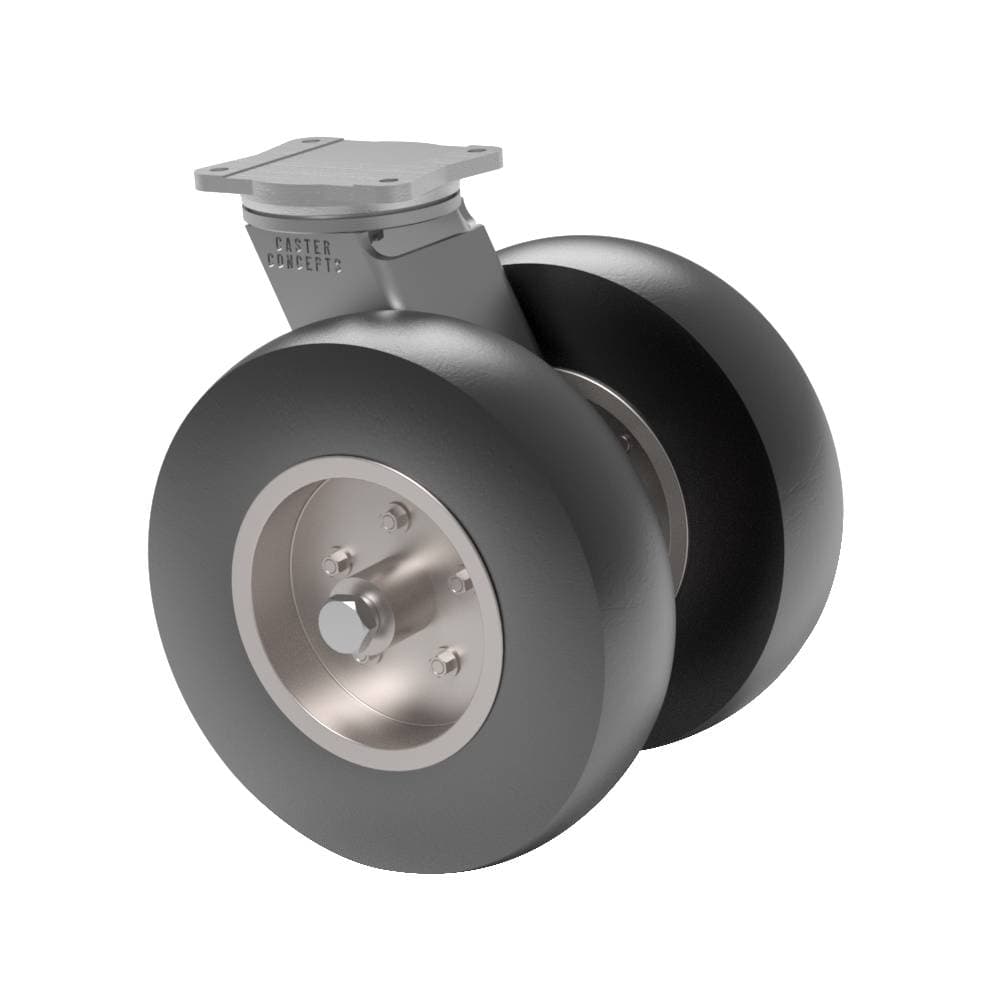

8x3 Dual Wheel Standard Polyurethane Swivel Caster

SKU: 82-08301-60-1

8x3 Dual Wheel Standard Polyurethane Swivel Caster

CasterExtra Heavy Duty Casters – Built for the Toughest Loads (15,000lbs. to 34,999lbs.)Swivel Casters
  • Load rating of 5000 lbs.
  • Overall height of 11 inches
  • 95A Standard PU Wheel - Non-marking, high tear strength, resistance to flat spotting, good solvent and water resistance. (Shore 95A Hardness)

Features

Dual WheelFlat Faced CastersKingpin Casters
CAD DOWNLOAD

Specifications

Series
82
Capacity
5,000
Overall Height
11"
Bearing Type
Straight Roller Bearing
Wheel Material
Standard Polyurethane
Wheel Diameter
8"
Wheel Width
3"
Wheel Configuration
Dual Wheel
Caster Material
Steel
Caster Style
Swivel Caster
Caster Type
Kingpin
Swivel Radius
7.4"
Swivel Lead
2.5"
Bolt Size
0.5
Top Plate Size
6 x 7.5
Bolt Hole Pattern
4.5 x 6

Description

This 8-inch by 3-inch 82 series Dual Wheel caster is engineered for exceptional load capacity, stability, and versatility in demanding industrial applications. With a dual wheel configuration and low overall height, these casters offer the highest capacity while maintaining space efficiency. Our casters ensure even weight distribution, reducing pressure on flooring and ground surfaces to prevent damage. The innovative design allows for the use of smaller diameter dual wheels, providing optimal load distribution and effortless directional changes. For uneven surfaces, our dual wheel casters with oscillating axles adapt seamlessly, ensuring stability and performance. Paired with our general-purpose, Standard Polyurethane (Shore 95A Hardness) wheel, this caster becomes good for numerous industrial applications. It is non-marking with high tear strength and resistance to flat spotting, as well as a good solvent and water resistance. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 5000 lbs.
