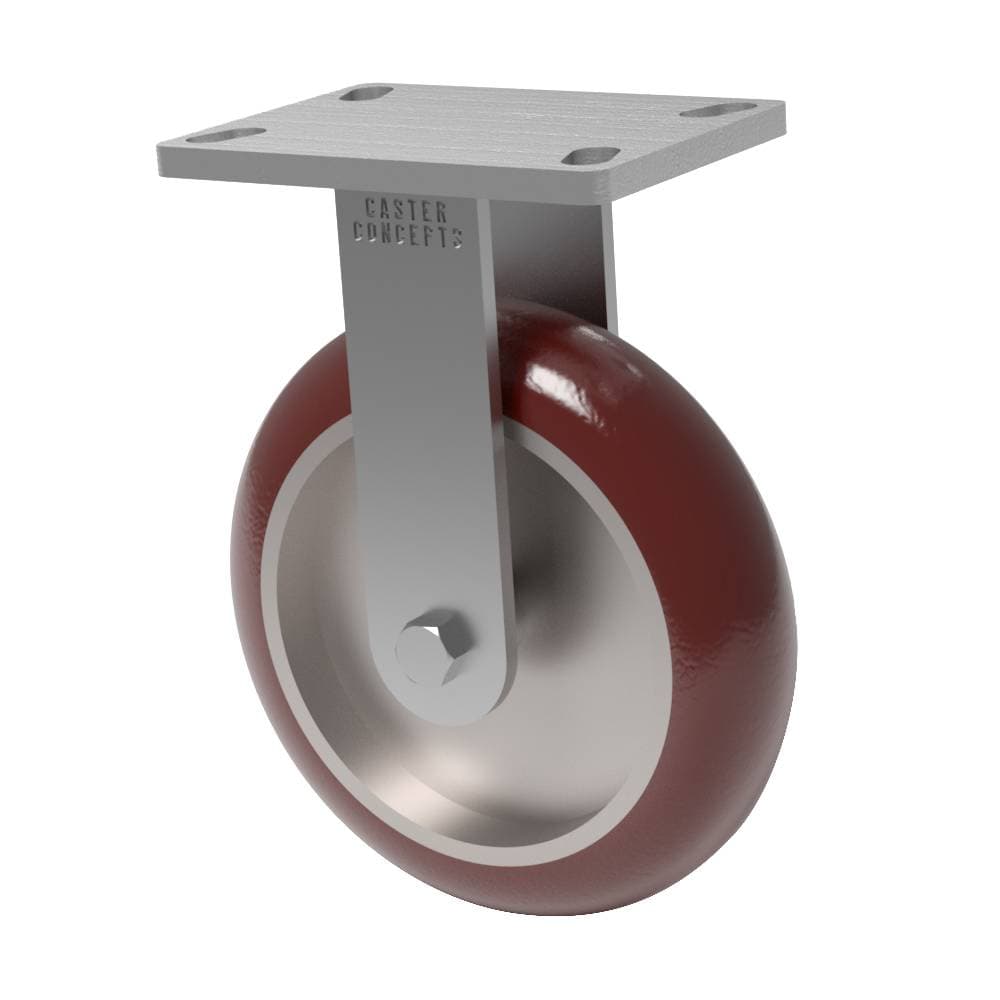

8x2 Round Tread Standard Polyurethane Rigid Caster

SKU: 57-08202-50-2

8x2 Round Tread Standard Polyurethane Rigid Caster

Caster
  • Load rating of 1000 lbs.
  • Overall height of 10.13 inches
  • 95A Standard PU Wheel - Non-marking, high tear strength, resistance to flat spotting, good solvent and water resistance. (Shore 95A Hardness)

Features

Ergonomic CastersRound Tread

Specifications

Series
57
Capacity
1,000
Overall Height
10.13"
Bearing Type
Precision Ball Bearing
Wheel Material
Standard Polyurethane
Wheel Type
Round Tread
Wheel Diameter
8"
Wheel Width
2"
Wheel Configuration
Single Wheel
Caster Material
Steel
Caster Style
Rigid Caster
Bolt Size
0.5
Top Plate Size
6.25 x 4.5
Bolt Hole Pattern
2.438 x 4.938 Slotted to 3.375 x 5.25
Temp (Continuous)
-50 to 200
Temp (Intermittent)
-50 to 175

Description

This 8-inch by 2-inch 57 series caster, is engineered for exceptional performance and reduced ergonomic forces. The legs, made from 1/4" x 2" steel, are continuously welded both inside and outside the yoke base, ensuring robust construction. With a 1/2" diameter axle, this caster delivers smooth rotation and reliable operation. Paired with our general-purpose, Standard Polyurethane (Shore 95A Hardness) wheel, this caster becomes good for numerous industrial applications. It is non-marking with high tear strength and resistance to flat spotting, as well as a good solvent and water resistance. This wheel is capable carrying loads up to 3700 lbs. and has a 1-inch thick tread which is denoted by the H.D. in the wheel material. Featuring precision sealed ball bearings, the caster wheel provides quiet operation and requires no maintenance, all with a load rating of 1000 lbs.
