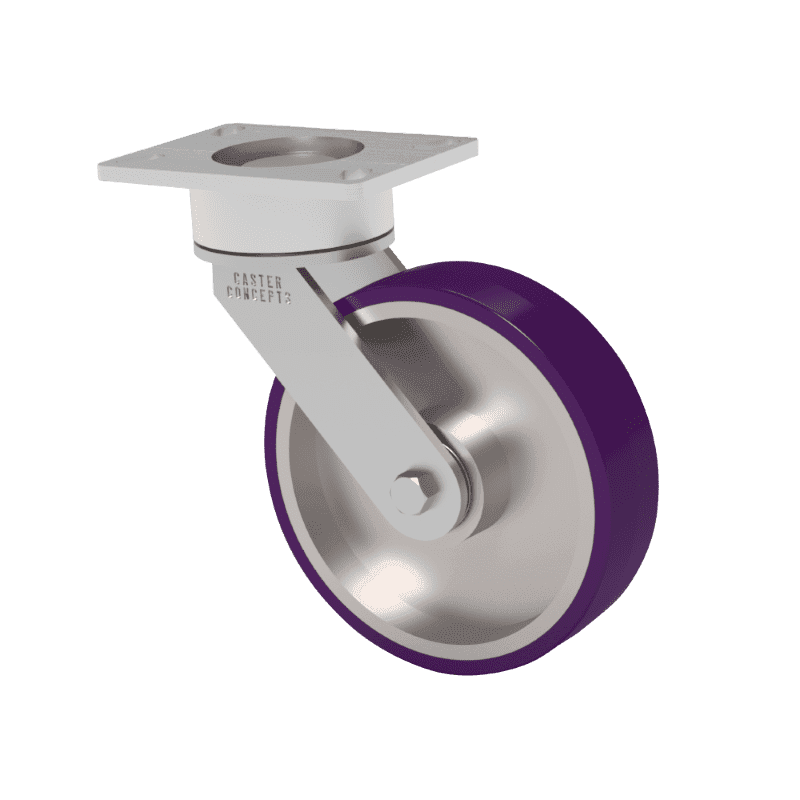

8x2 HPPT Polyurethane Maintenance Free Swivel Caster

SKU: 57EXT-08202-90-1

8x2 HPPT Polyurethane Maintenance Free Swivel Caster

Caster
  • Load rating of 1200 lbs.
  • Overall height of 10.13 inches
  • 92A HPPT PU Wheel - High-performance formulation, heat resistant, higher weight capacities, resistant to tearing and abrasions. (Shore 92A Hardness)

Features

Easy SwivelErgonomic CastersFlat Faced CastersMaintenance Free Casters

Specifications

Series
57EXT
Capacity
1,200
Overall Height
10.13"
Bearing Type
Precision Ball Bearing
Wheel Material
HPPT Polyurethane
Wheel Diameter
8"
Wheel Width
2"
Wheel Configuration
Single Wheel
Caster Material
Steel
Caster Style
Swivel Caster
Caster Type
Maintenance Free
Swivel Radius
7.57"
Swivel Lead
3.5"
Bolt Size
0.5
Top Plate Size
4.5 x 6.25
Bolt Hole Pattern
2.438 x 4.938 Slotted to 3.375 x 5.25

Description

This 8-inch by 2-inch 57 Series caster with extended swivel lead was designed to improve material handling operations through increased ergonomics. This caster combines exceptional strength, durability, and maneuverability for challenging environments. The extended swivel lead provides enhanced maneuverability and precise control, significantly improving ergonomic conditions for operators. By reducing the force and effort required to move carts or equipment, it minimizes operator fatigue and the risk of injuries. The wheel utilizes our HPPT 92A Polyurethane that is a high-performance solution designed for dynamic applications. This features a heat-resistant polyurethane formulation that can handle higher weight capacities, making it perfect for AGVs, Tuggers, and other high-speed, heavy-duty scenarios. With superior tear and abrasion resistance, it maintains its structural integrity over extended periods, while its excellent solvent resistance ensures durability. Featuring precision sealed ball bearings, the caster provides quiet operation and requires no maintenance, all with a load rating of 1200 lbs.
