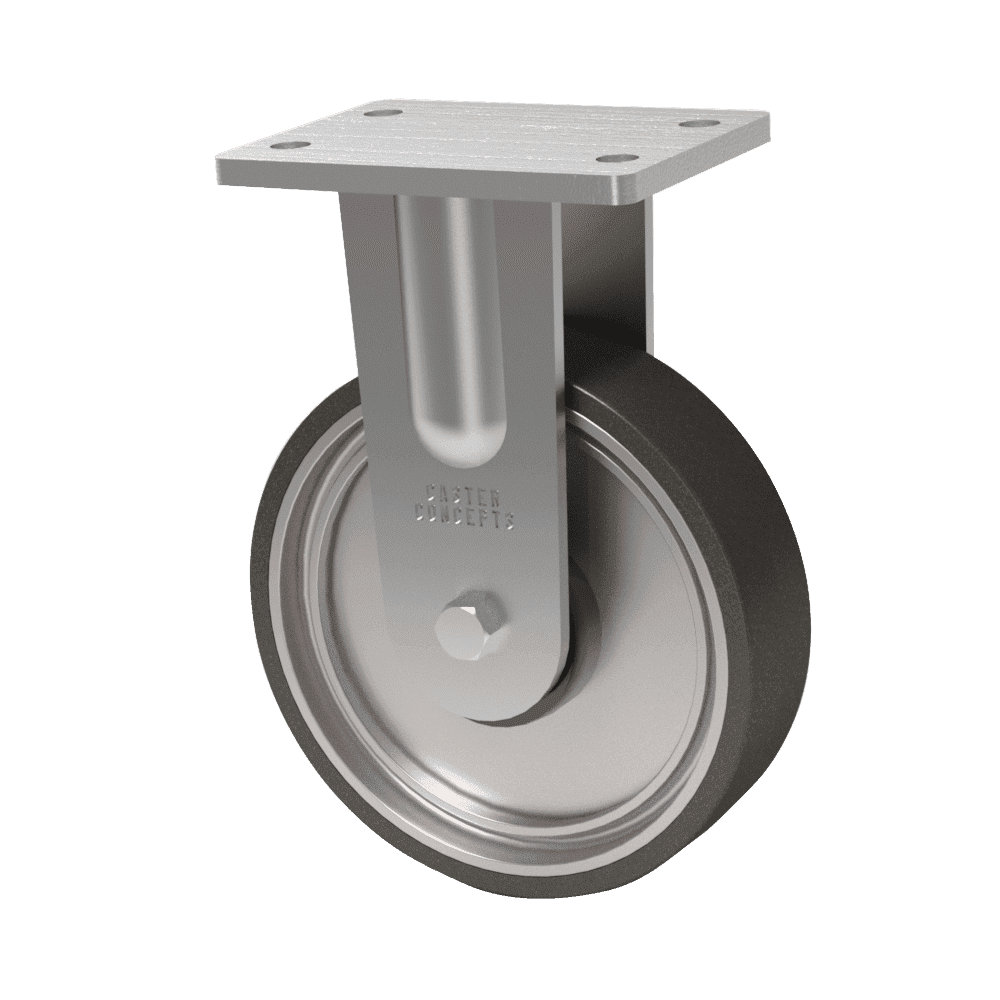

8x2 CasterShoX T/R-95 Polyurethane Rigid Caster

SKU: 57-08202-91-2XD9

8x2 CasterShoX T/R-95 Polyurethane Rigid Caster

Caster
  • Load rating of 1000 lbs.
  • Overall height of 10.5 inches
  • T/R 95A PU Wheel - High tear resistance, extended wear, ergonomic benefits, good solvent and oil resistance. (Shore 95A Hardness)

Features

Ergonomic CastersFlat Faced CastersNoise ReducingShock Absorbing

Specifications

Series
57
Capacity
1,000
Overall Height
10.5"
Bearing Type
Precision Ball Bearing
Wheel Material
T/R-95 Polyurethane
Wheel Type
CasterShoX
Wheel Diameter
8"
Wheel Width
2"
Wheel Configuration
Single Wheel
Caster Material
Steel
Caster Style
Rigid Caster
Bolt Size
0.5
Top Plate Size
6.25 x 4.5
Bolt Hole Pattern
2.438 x 4.938 Slotted to 3.375 x 5.25
Temp (Continuous)
-50 to 200
Temp (Intermittent)
-50 to 175

Description

This 8-inch by 2-inch 57 series caster, is engineered for exceptional performance and reduced ergonomic forces. The legs, made from 1/4" x 2" steel, are continuously welded both inside and outside the yoke base, ensuring robust construction. With a 1/2" diameter axle, this caster delivers smooth rotation and reliable operation. CasterShoX Wheels CasterShoX are the superior choice for reducing shock loads and noise in manufacturing environments. This patented design combines spring technology and polymer dampening to deliver unmatched performance. With an impressive 80% reduction in shock loads and a 15-decibel decrease in noise, CasterShoX creates a quieter and safer workplace. Retrofitting carts is effortless, as these casters fit seamlessly into the existing space. They excel in transporting fragile components and provide added value in ergonomic situations. Furthermore, CasterShoX helps businesses comply with OSHA regulations by increasing allowable exposure time for workers. Upgrade to CasterShoX and experience unparalleled shock load reduction, noise dampening, and ergonomic benefits for a more efficient and compliant workplace.The T/R95 Polyurethane caster wheel features our specialized formulation designed for challenging applications. With superior tear resistance and increased strength, this wheel ensures extended wear and durability even in demanding environments. The T/R 95 tread offers enhanced ergonomic benefits and a longer service life compared to standard 95A polyurethane. Featuring precision sealed ball bearings, the caster wheel provides quiet operation and requires no maintenance, all with a load rating of 1000 lbs.
