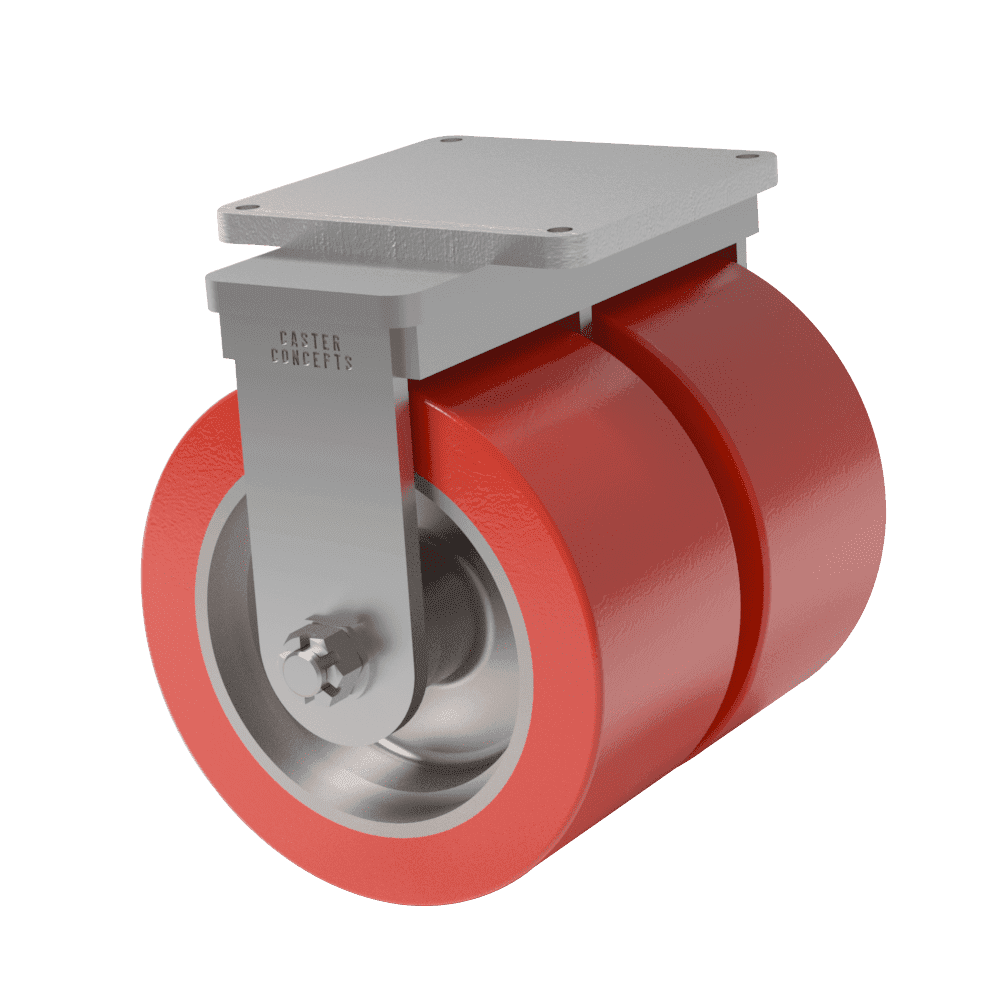

22x12 Dual Wheel H.D. T/R-95 Polyurethane Rigid Caster

SKU: 2-99HD-22129-96-2

22x12 Dual Wheel H.D. T/R-95 Polyurethane Rigid Caster

CasterRigid CastersSuper Heavy Duty Casters35,000 to 100,000 lbs. or greater
  • Load rating of 35000 lbs.
  • Overall height of 28 inches
  • T/R 95A PU Wheel - 1" Thick tread, high tear resistance, extended wear, ergonomic benefits, good solvent and oil resistance. (Shore 95A Hardness)

Features

Dual WheelFlat Faced CastersThick Tread

Specifications

Series
99HD
Capacity
35,000
Overall Height
28"
Bearing Type
Precision Tapered Bearing
Wheel Material
H.D. T/R-95 Polyurethane
Wheel Diameter
22"
Wheel Width
12"
Wheel Configuration
Dual Wheel
Caster Material
Steel
Caster Style
Rigid Caster
Bolt Size
0.75
Top Plate Size
14 x 14
Bolt Hole Pattern
12 x 12
Temp (Continuous)
-50 to 200
Temp (Intermittent)
-50 to 175

Description

This 22-inch by 12-inch 99 Series Extra Heavy Duty caster, is the epitome of strength and reliability. Engineered to carry the heaviest loads with ease and deliver flawless performance, this caster sets the standard for quality and dependability in the industry. Dual Wheel Casters Dual Wheel Caster configurations are engineered for exceptional load capacity, stability, and versatility in demanding industrial applications. With a dual wheel configuration and low overall height, these casters offer the highest capacity while maintaining space efficiency. Our casters ensure even weight distribution, reducing pressure on flooring and ground surfaces to prevent damage. The innovative design allows for the use of smaller diameter dual wheels, providing optimal load distribution and effortless directional changes. The 1-inch thick tread, T/R95 Polyurethane caster wheel features our specialized formulation designed for challenging applications. With superior tear resistance and increased strength, this wheel ensures extended wear and durability even in demanding environments. The T/R 95 tread offers enhanced ergonomic benefits and a longer service life compared to standard 95A polyurethane. Featuring our precision tapered bearings, the wheels are capable of absorbing excessive side thrust loading and can be used where high speed operation is essential, all with a load rating of 35000 lbs.
