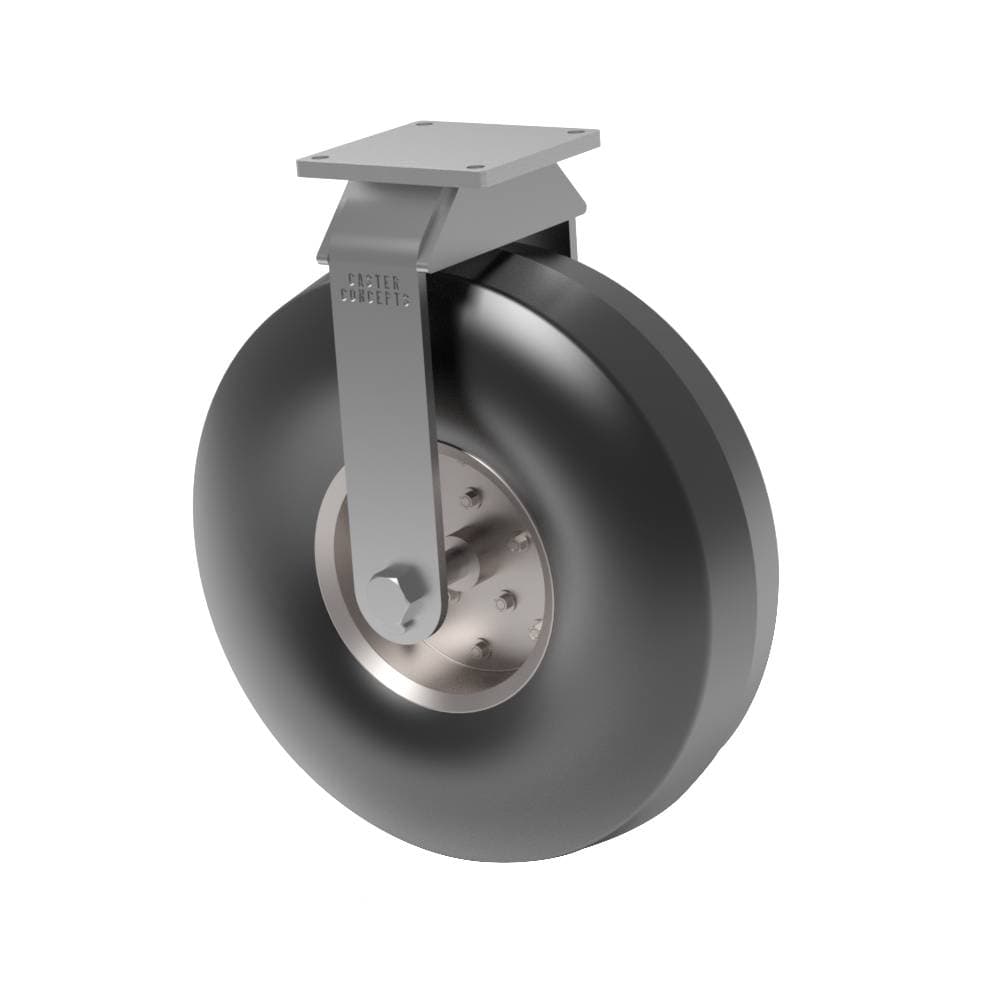

16x400 x 8 Pneumatic Rubber Rigid Caster

SKU: 90-16509-78-2

16x400 x 8 Pneumatic Rubber Rigid Caster

CasterHeavy Duty Casters: 5,000 lbs to 14,999 lbsRigid Casters
  • Load rating of 2900 lbs.
  • Overall height of 19 inches
  • Pneumatic Rubber Wheel - Rubber tire, providing excellent shock absorption, traction, and smooth rolling on uneven surfaces.

Features

Pneumatic Casters

Specifications

Series
90
Capacity
2,900
Overall Height
19"
Bearing Type
Precision Tapered Bearing
Wheel Material
Pneumatic Rubber
Wheel Type
Semi Pneumatic
Wheel Diameter
16"
Wheel Configuration
Single Wheel
Caster Material
Steel
Caster Style
Rigid Caster
Bolt Size
0.625
Top Plate Size
8.5 x 8.5
Bolt Hole Pattern
7 x 7
Temp (Continuous)
-30 to 120
Temp (Intermittent)
-30 to 120

Description

This 16-inch by 400 x 8-inch 90 series caster, is a durable and high-performance solution designed to excel in demanding applications. Through rigorous heat treatment, all components are fortified for enhanced durability. With its impressive load capacity and excellent value, the 90 Series fixed caster is a trusted choice for applications that demand durability, precision, and cost-effectiveness, delivering exceptional performance and long-lasting reliability. With wheels that mimick car tires, Pneumatic Casters feature rubber wheels around a metal hub, providing exceptional performance. They excel in moving fragile loads with minimal jarring on various surfaces including grass, pavement, and industrial floors. With quiet operation and load cushioning, they offer protection to both loads and floors. Constructed with hot forged steel and double row ball bearing swivels, these casters ensure durability and a long service life. The pneumatic tires cushion the load, absorb shocks, and effortlessly roll over obstructions. Featuring our precision tapered bearings, the wheels are capable of absorbing excessive side thrust loading and can be used where high speed operation is essential, all with a load rating of 2900 lbs.
