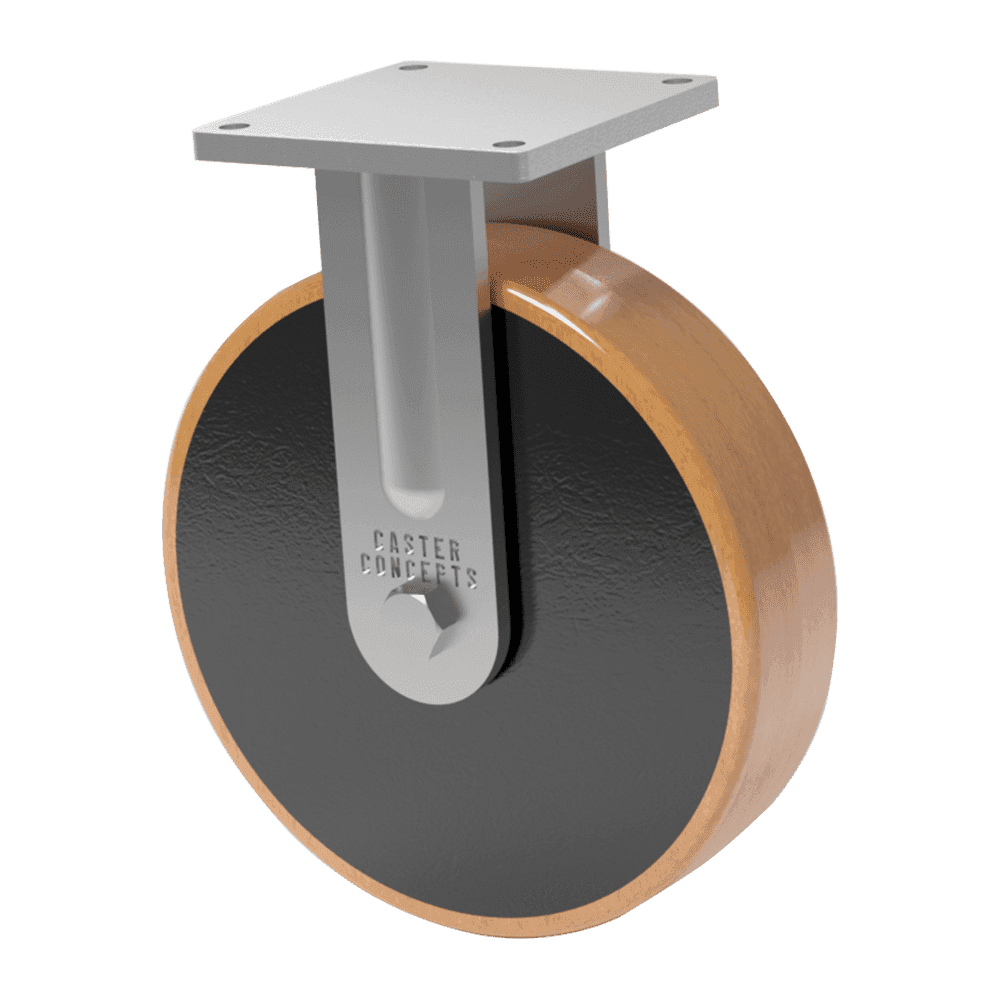

16x4 Laminated Phenolic Rigid Caster

CasterExtra Heavy Duty Casters – Built for the Toughest Loads (15,000lbs. to 34,999lbs.)Rigid Casters

Load rating of 8000 lbs.
Overall height of 19 inches
Laminated Phenolic - Wheel made from layers of phenolic resin, offering high load capacity, impact resistance, and resistance to chemicals and solvents.

Features

Flat Faced Casters

Specifications

Series

Capacity

8,000

Overall Height

19"

Bearing Type

Straight Roller Bearing

Wheel Material

Laminated Phenolic

Wheel Diameter

16"

Wheel Width

Wheel Configuration

Single Wheel

Caster Material

Steel

Caster Style

Rigid Caster

Bolt Size

0.625

Top Plate Size

8.5 x 8.5

Bolt Hole Pattern

7 x 7

Temp (Continuous)

-50 to 300

Temp (Intermittent)

-50 to 300

Description

This 16-inch by 4-inch 90 series caster, is a durable and high-performance solution designed to excel in demanding applications. Through rigorous heat treatment, all components are fortified for enhanced durability. With its impressive load capacity and excellent value, the 90 Series fixed caster is a trusted choice for applications that demand durability, precision, and cost-effectiveness, delivering exceptional performance and long-lasting reliability. Laminated Phenolic Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 8000 lbs.
