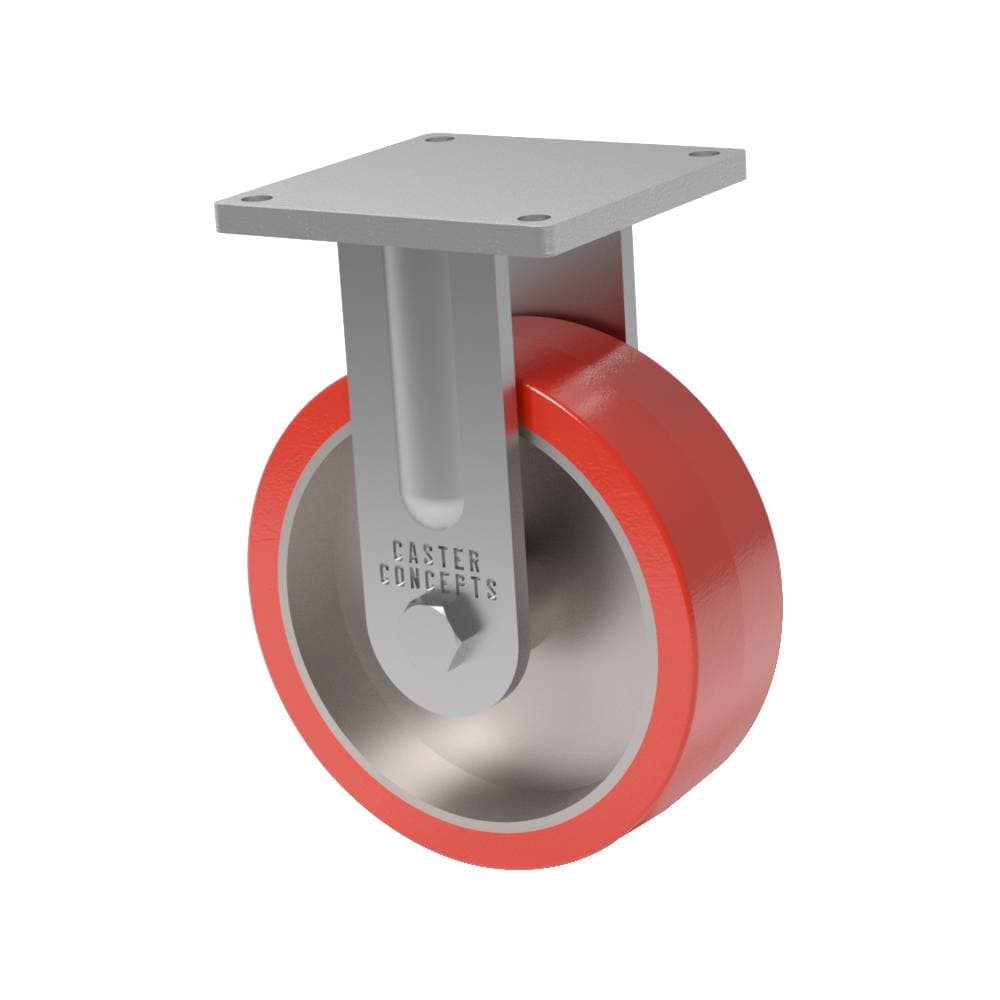

12x4 H.D. T/R Polyurethane Rigid Caster

SKU: 90-12401-66-2

12x4 H.D. T/R Polyurethane Rigid Caster

Caster
  • Load rating of 3800 lbs.
  • Overall height of 15.5 inches
  • T/R 85A PU Wheel - 1" Thick tread, industrial strength with a softer touch, high tear and debris resistance, moderate solvent and oil resistance. (Shore 85A Hardness)

Features

Flat Faced CastersThick Tread

Specifications

Series
90
Capacity
3,800
Overall Height
15.5"
Bearing Type
Straight Roller Bearing
Wheel Material
H.D. T/R Polyurethane
Wheel Diameter
12"
Wheel Width
4"
Wheel Configuration
Single Wheel
Caster Material
Steel
Caster Style
Rigid Caster
Bolt Size
0.625
Top Plate Size
8.5 x 8.5
Bolt Hole Pattern
7 x 7
Temp (Continuous)
-50 to 200
Temp (Intermittent)
-50 to 175

Description

This 12-inch by 4-inch 90 series caster, is a durable and high-performance solution designed to excel in demanding applications. Through rigorous heat treatment, all components are fortified for enhanced durability. With its impressive load capacity and excellent value, the 90 Series fixed caster is a trusted choice for applications that demand durability, precision, and cost-effectiveness, delivering exceptional performance and long-lasting reliability. Combined with our 1-inch thick tread, T/R 85A polyurethane wheel, this caster is a versatile solution that brings industrial-strength performance with a softer touch. This specialized formulation is engineered for easy and quiet rolling, making it an ideal choice for a wide range of applications. With its high tear and debris resistance, this wheel ensures exceptional durability and longevity. While offering moderate solvent and oil resistance, it is important to note its lack of water resistance and unsuitability for hot and humid environments due to the risk of microbial attack. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 3800 lbs.
