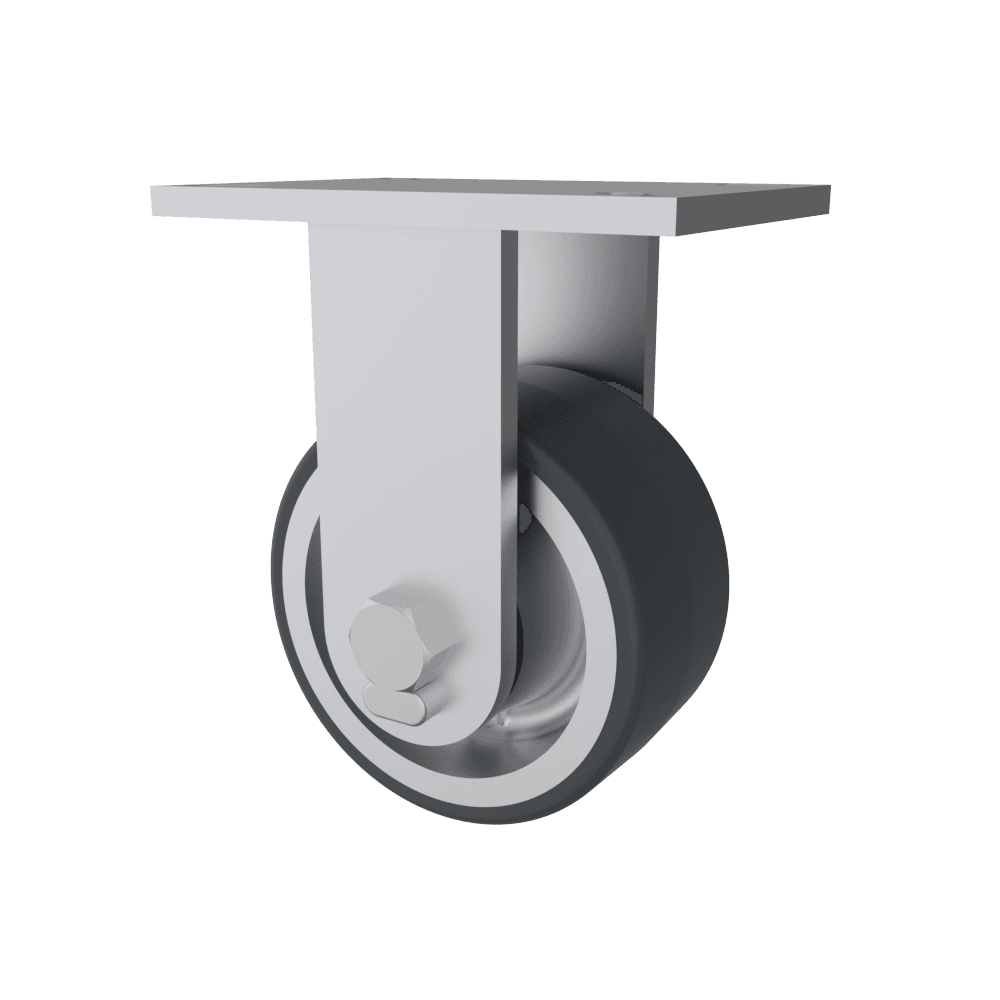

12x3 T/R-95 Polyurethane Rigid Caster

SKU: 77-12302-91-2

12x3 T/R-95 Polyurethane Rigid Caster

Caster
  • Load rating of 3400 lbs.
  • Overall height of 15.5 inches
  • T/R 95A PU Wheel - High tear resistance, extended wear, ergonomic benefits, good solvent and oil resistance. (Shore 95A Hardness)

Features

Ergonomic CastersFlat Faced Casters

Specifications

Series
77
Capacity
3,400
Overall Height
15.5"
Bearing Type
Precision Ball Bearing
Wheel Material
T/R-95 Polyurethane
Wheel Diameter
12"
Wheel Width
3"
Wheel Configuration
Single Wheel
Caster Material
Steel
Caster Style
Rigid Caster
Bolt Size
0.5
Top Plate Size
5 x 7.25
Bolt Hole Pattern
3.375 x 5.25 Slotted to 4.125 x 6.125
Temp (Continuous)
-50 to 200
Temp (Intermittent)
-50 to 175

Description

This 12-inch by 3-inch 77 series caster, is engineered for exceptional performance and reduced ergonomic forces. The legs, made from 3/8" x 2 3/4" steel, are continuously welded both inside and outside the yoke base, ensuring robust construction. With a 3/4" diameter axle, this caster delivers smooth rotation and reliable operation. The T/R95 Polyurethane caster wheel features our specialized formulation designed for challenging applications. With superior tear resistance and increased strength, this wheel ensures extended wear and durability even in demanding environments. The T/R 95 tread offers enhanced ergonomic benefits and a longer service life compared to standard 95A polyurethane. Featuring precision sealed ball bearings, the caster wheel provides quiet operation and requires no maintenance, all with a load rating of 3400 lbs.
