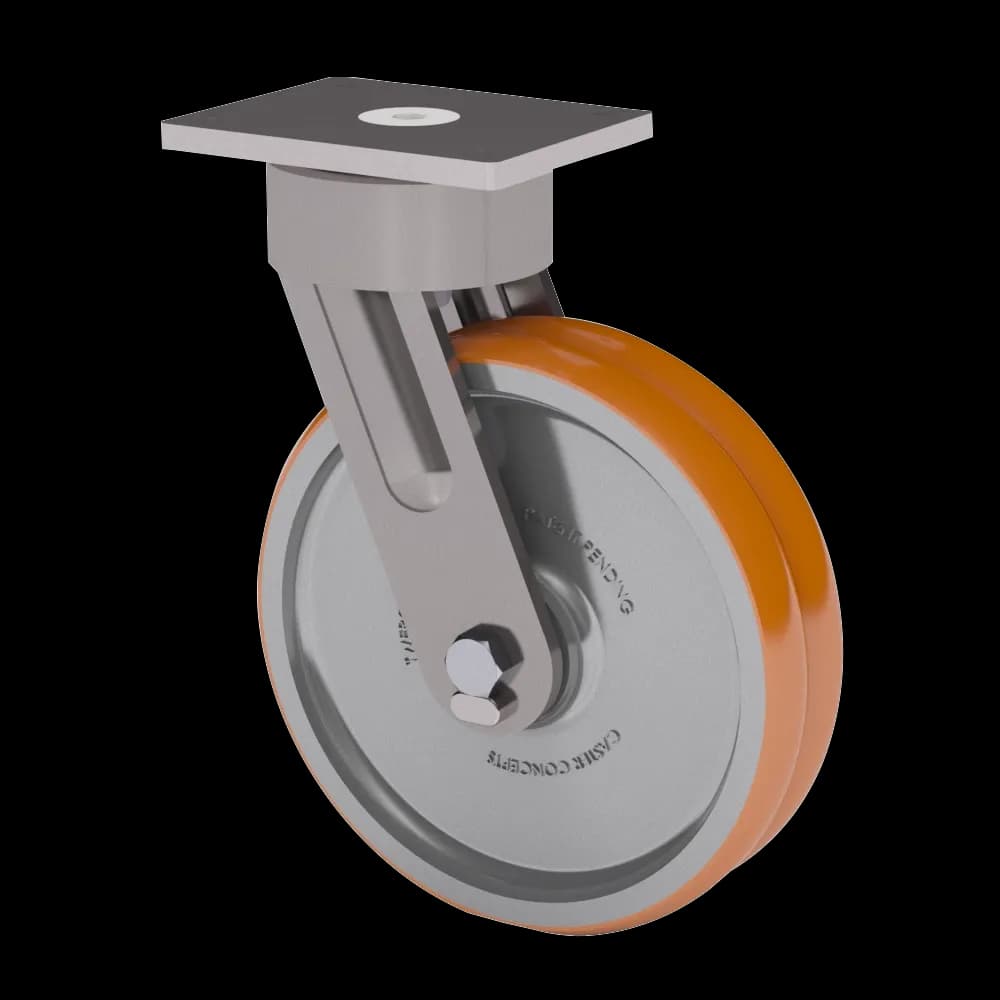

12x3 T/R-95 Polyurethane Maintenance Free Swivel Caster

SKU: 87-12302-91-1

12x3 T/R-95 Polyurethane Maintenance Free Swivel Caster

Caster
  • Load rating of 3400 lbs.
  • Overall height of 15.75 inches
  • T/R 95A PU Wheel - High tear resistance, extended wear, ergonomic benefits, good solvent and oil resistance. (Shore 95A Hardness)

Features

Easy SwivelErgonomic CastersFlat Faced CastersMaintenance Free Casters

Specifications

Series
87
Capacity
3,400
Overall Height
15.75"
Bearing Type
Precision Ball Bearing
Wheel Material
T/R-95 Polyurethane
Wheel Diameter
12"
Wheel Width
3"
Wheel Configuration
Single Wheel
Caster Material
Steel
Caster Style
Swivel Caster
Caster Type
Maintenance Free
Swivel Radius
9.12"
Swivel Lead
3"
Bolt Size
0.5
Top Plate Size
6 x 7.5
Bolt Hole Pattern
4.5 x 6

Description

This 12-inch by 3-inch 87 series caster utilizes a dual (precision sealed ball) bearing design, enabling smooth and easy rotation. The dual precision sealed ball bearings with hardened raceways help reduce push force when moving the cart from a stopped position while the wheels are not all parallel. The T/R95 Polyurethane caster wheel features our specialized formulation designed for challenging applications. With superior tear resistance and increased strength, this wheel ensures extended wear and durability even in demanding environments. The T/R 95 tread offers enhanced ergonomic benefits and a longer service life compared to standard 95A polyurethane. Featuring precision sealed ball bearings, the caster provides quiet operation and requires no maintenance, all with a load rating of 3400 lbs.
