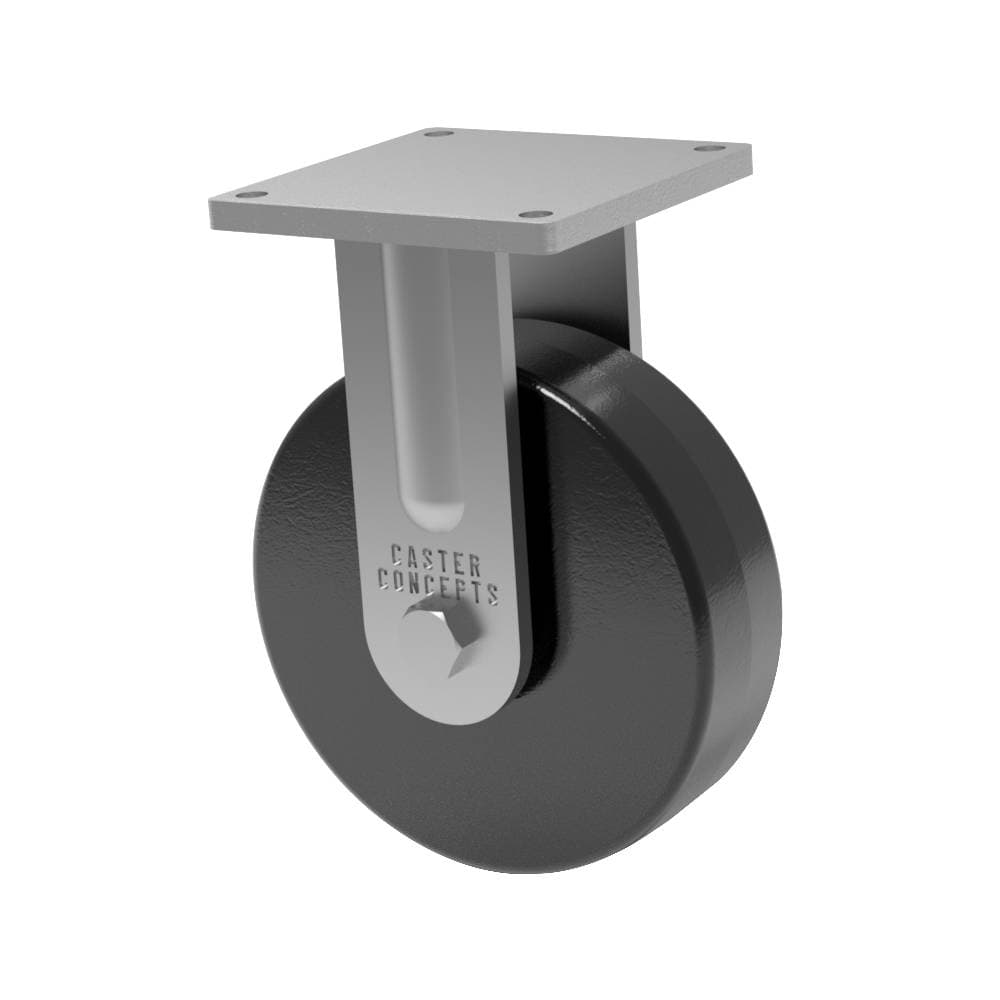

12x3.5 Phenolic Resin Rigid Caster

SKU: 90-12351-30-2

12x3.5 Phenolic Resin Rigid Caster

CasterHeavy Duty Casters: 5,000 lbs to 14,999 lbsRigid Casters
  • Load rating of 4000 lbs.
  • Overall height of 15.5 inches
  • Phenolic Resin Wheel - Known for its high heat resistance, dimensional stability, and low rolling resistance.

Features

Flat Faced Casters

Specifications

Series
90
Capacity
4,000
Overall Height
15.5"
Bearing Type
Straight Roller Bearing
Wheel Material
Phenolic Resin
Wheel Diameter
12"
Wheel Width
3.5"
Wheel Configuration
Single Wheel
Caster Material
Steel
Caster Style
Rigid Caster
Bolt Size
0.625
Top Plate Size
8.5 x 8.5
Bolt Hole Pattern
7 x 7
Temp (Continuous)
-50 to 300
Temp (Intermittent)
-50 to 300

Description

This 12-inch by 3.5-inch 90 series caster, is a durable and high-performance solution designed to excel in demanding applications. Through rigorous heat treatment, all components are fortified for enhanced durability. With its impressive load capacity and excellent value, the 90 Series fixed caster is a trusted choice for applications that demand durability, precision, and cost-effectiveness, delivering exceptional performance and long-lasting reliability. Paired with a Phenolic Resin wheel, that is crafted from high-quality phenolic resin material, this wheel delivers exceptional strength, durability, and heat resistance. With superior load-bearing capacity and impact resistance, it ensures stability and reliability during movement. Also, with its precision tapered bearing you get the added benefit of your wheel being able to handle both axial and radial loads making them ideal for manufacturing, warehousing, and automotive industries. Its chemical resistance and low rolling resistance guarantee longevity, smooth maneuverability, and dependable performance. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 4000 lbs.
