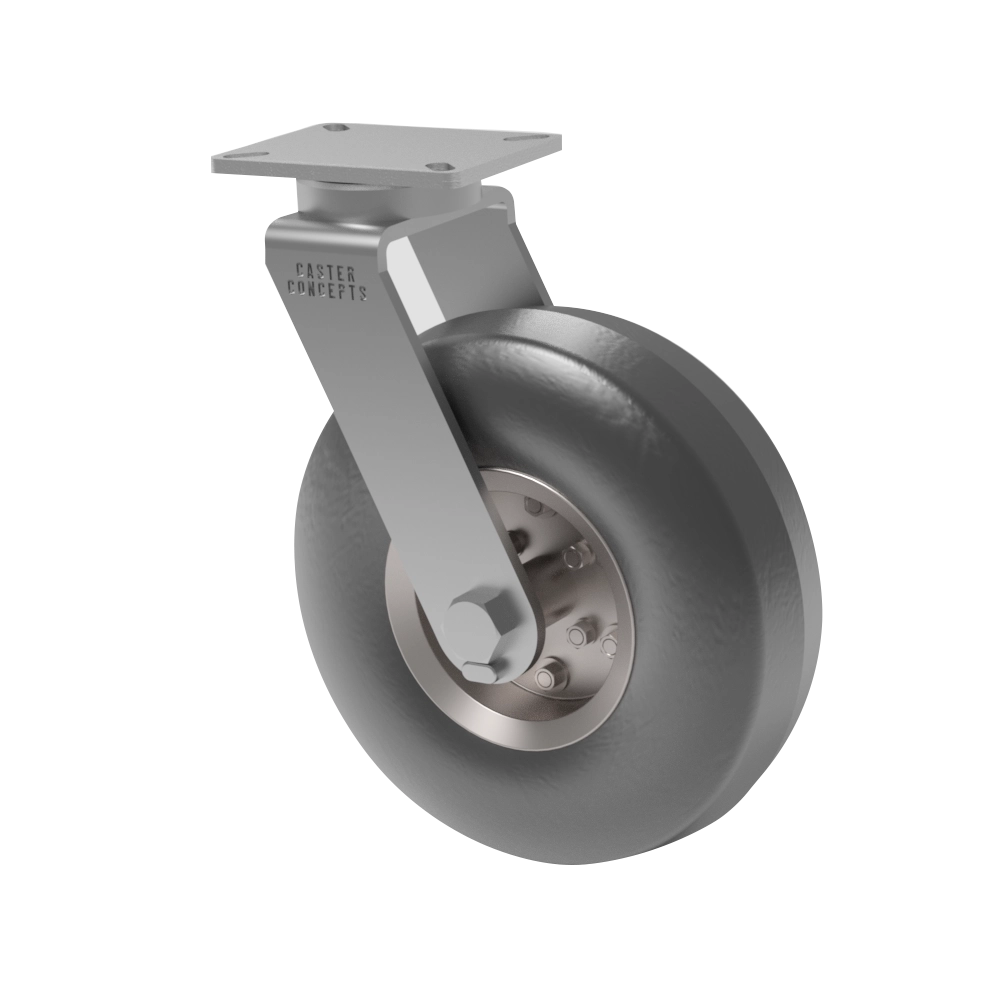

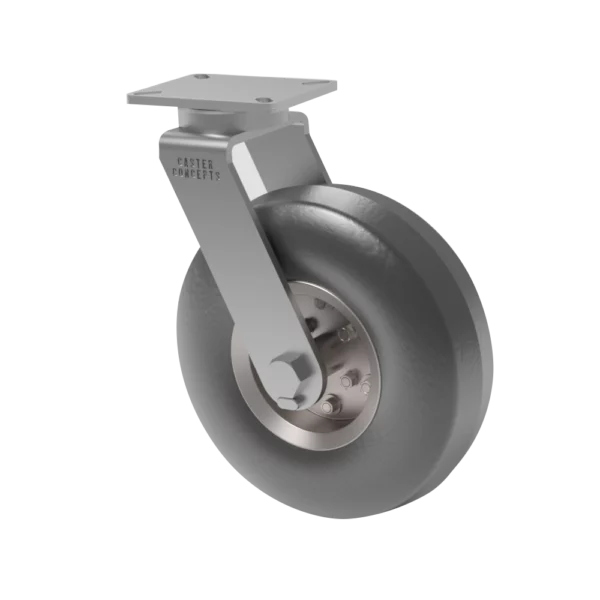

14x5.30/6 Pneumatic Rubber Swivel Caster

SKU: 71-14451-76-1

14x5.30/6 Pneumatic Rubber Swivel Caster

CasterMedium Heavy Duty Casters for 900, 1000, and Up to 1,999 lbsSwivel Casters
  • Load rating of 710 lbs.
  • Overall height of 17.75 inches
  • Pneumatic Rubber Wheel - Rubber tire, providing excellent shock absorption, traction, and smooth rolling on uneven surfaces.

Features

Kingpinless CasterPneumatic Casters
CAD DOWNLOAD

Specifications

Series
71
Capacity
710
Overall Height
17.75"
Bearing Type
Straight Roller Bearing
Wheel Material
Pneumatic Rubber
Wheel Type
Pneumatic
Wheel Diameter
14"
Wheel Configuration
Single Wheel
Caster Material
Steel
Caster Style
Swivel Caster
Caster Type
Kingpinless
Swivel Radius
11.23"
Swivel Lead
4"
Bolt Size
0.5
Top Plate Size
5 x 7.25
Bolt Hole Pattern
3.375 x 5.25 Slotted to 4.125 x 6.125

Description

This 14-inch by 5.30/6-inch 71 series caster has the highest load capacity rating in our line-up of single ball race swivel sections. The bearings in the swivel section act as both load and thrust components and lock the swivel section together to distribute the load over a larger area. With wheels that mimick car tires, Pneumatic Casters feature rubber wheels around a metal hub, providing exceptional performance. They excel in moving fragile loads with minimal jarring on various surfaces including grass, pavement, and industrial floors. With quiet operation and load cushioning, they offer protection to both loads and floors. Constructed with hot forged steel and double row ball bearing swivels, these casters ensure durability and a long service life. The pneumatic tires cushion the load, absorb shocks, and effortlessly roll over obstructions. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 710 lbs.
