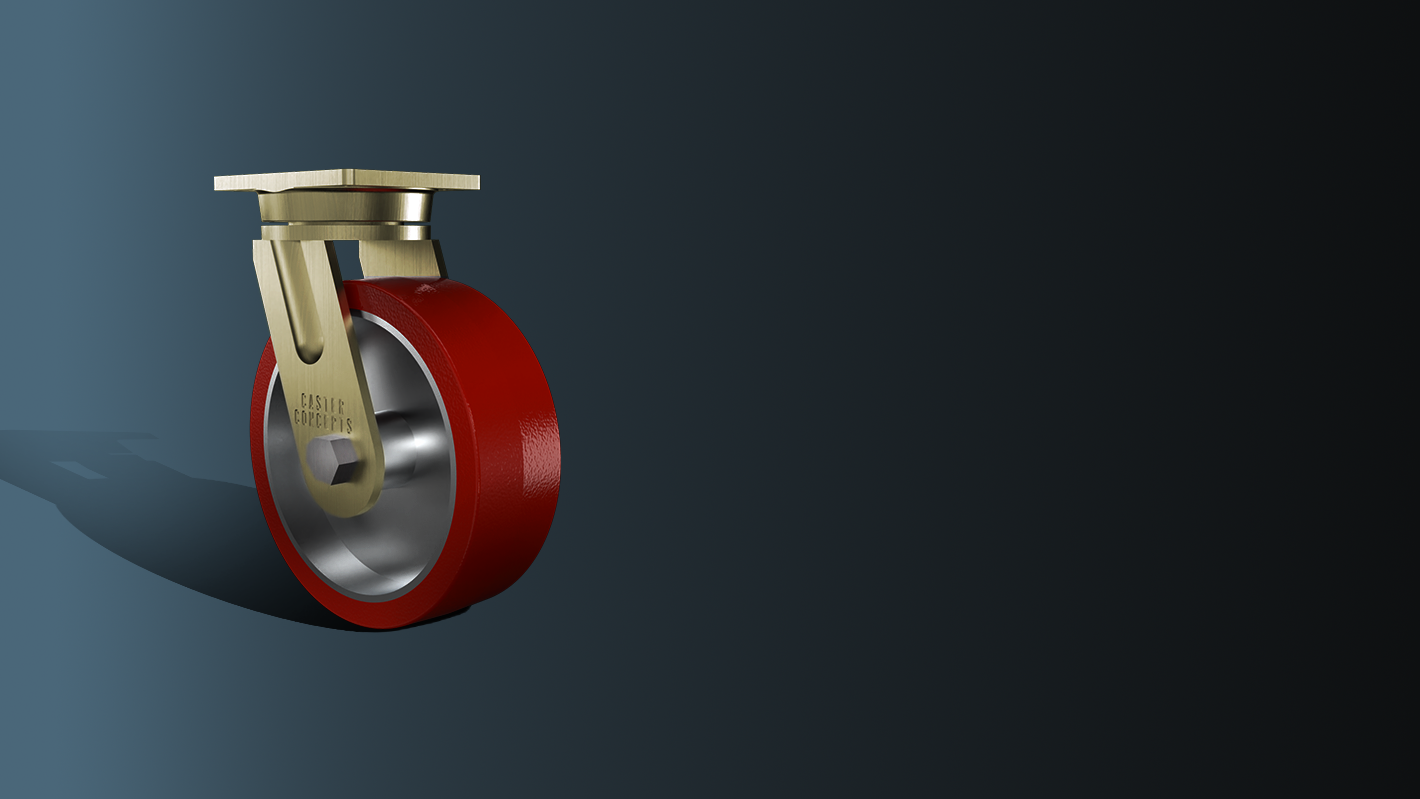

95-SERIES
Rugged applications include die carts, towed trailers, automotive plant equipment, aircraft maintenance stands, production line delivery trailers, paving machinery and boat dollies.
FEATURES
Available in Rigid or Swivel: Swivel section is constructed of hot-forged C-1045 steel with a 7” diameter raceway. Features straight roller bearings and a tapered thrust bearing.
Legs: 1/2” x 4” legs formed and continuously welded both inside and outside for greater strength.
Kingpin: 1-1/4” integrally forged kingpin with slotted adjusting nut.
Axle: 1-1/4” diameter axle.
Lubrication: Pre-lubricated before shipping.
Wheels: 6” to 18” diameter wheels.

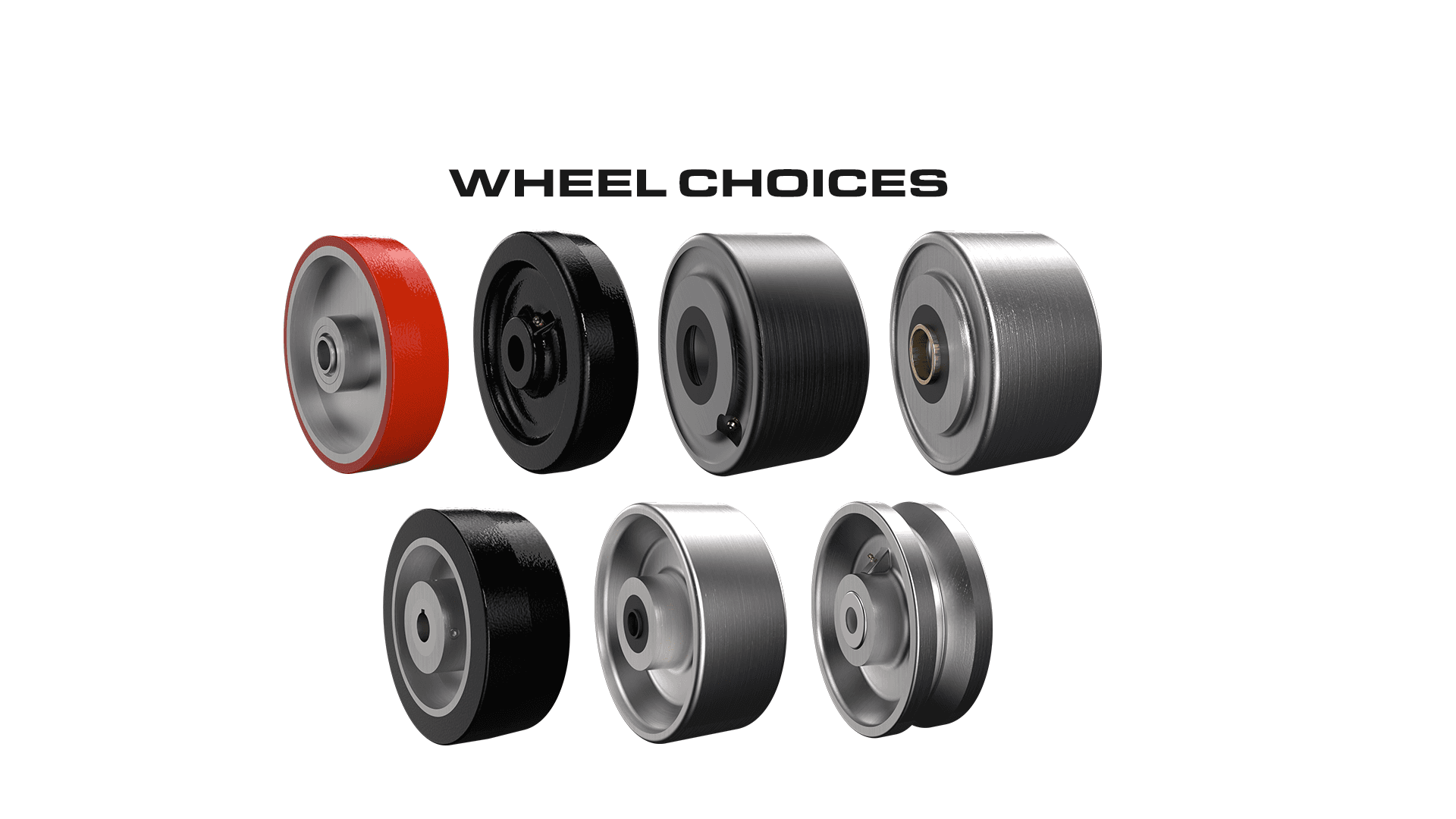

Wheel Choices: Polyurethane: (95A Standard, T/R85A, 70D Hard) ▪ Metal: (Forged Steel, Cast Iron, Ductile Iron) ▪ Composite: (Phenolic, Laminated Phenolic) ▪ Mold On Rubber ▪ Track Wheels
Finish: Gold Powder Coat.
OPTIONS
BRAKES
Poly Lock
Wrap Around
Face Contact
SWIVEL LOCKS
Factory Installed
Heavy Duty Demountable
Foot Actuated
SEALED SWIVEL SECTION
SEALED WHEELS
TOE GUARD
NOT SURE WHICH CASTER IS RIGHT FOR YOUR APPLICATION?
