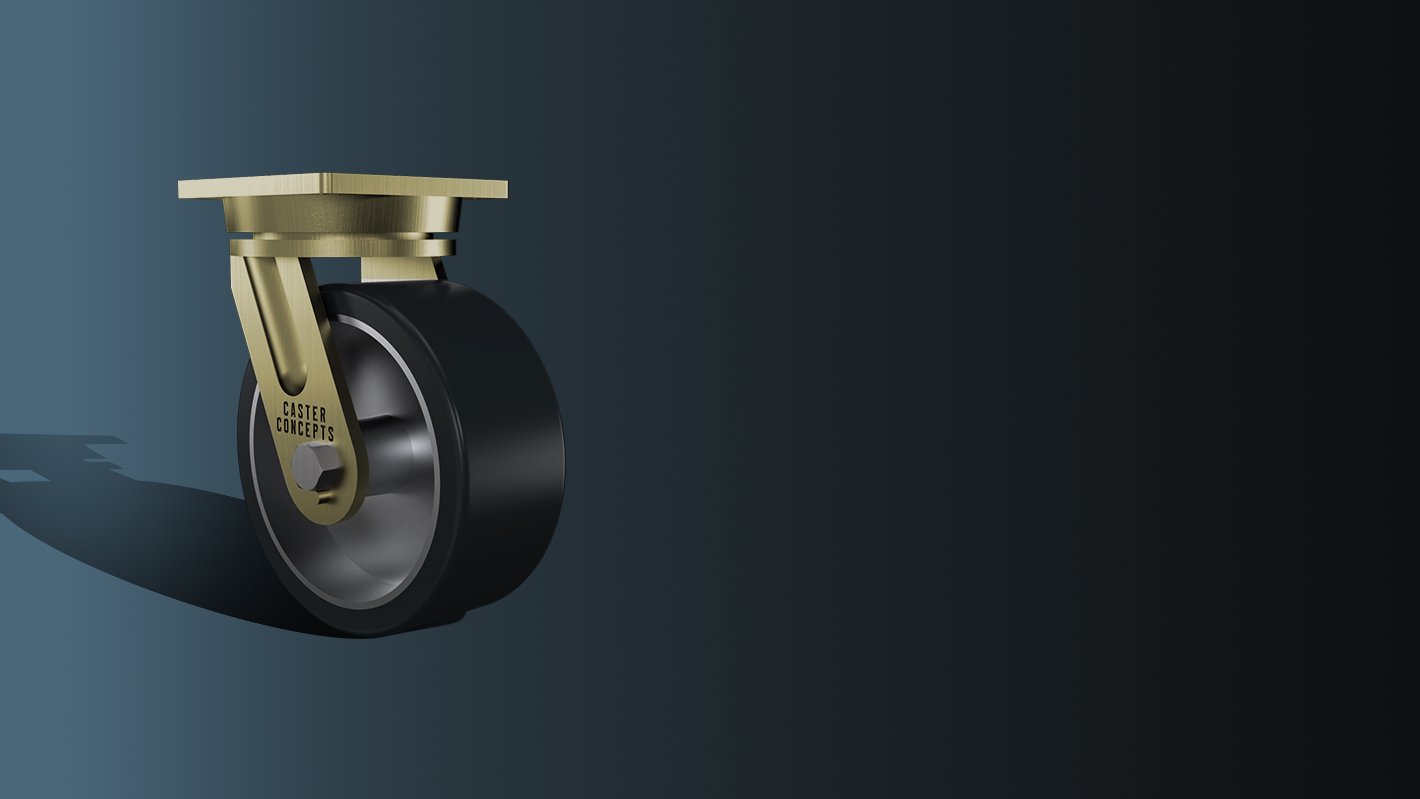

91-SERIES

Specifically designed for severe applications, the 91 Series is ideal for die carts, tooling fixtures, aircraft engine stands, ground support equipment, aerospace A-frame skin dollies, portable jigs, large work platforms, mobile military equipment, aircraft maintenance stands and production line delivery trailers.

FEATURES

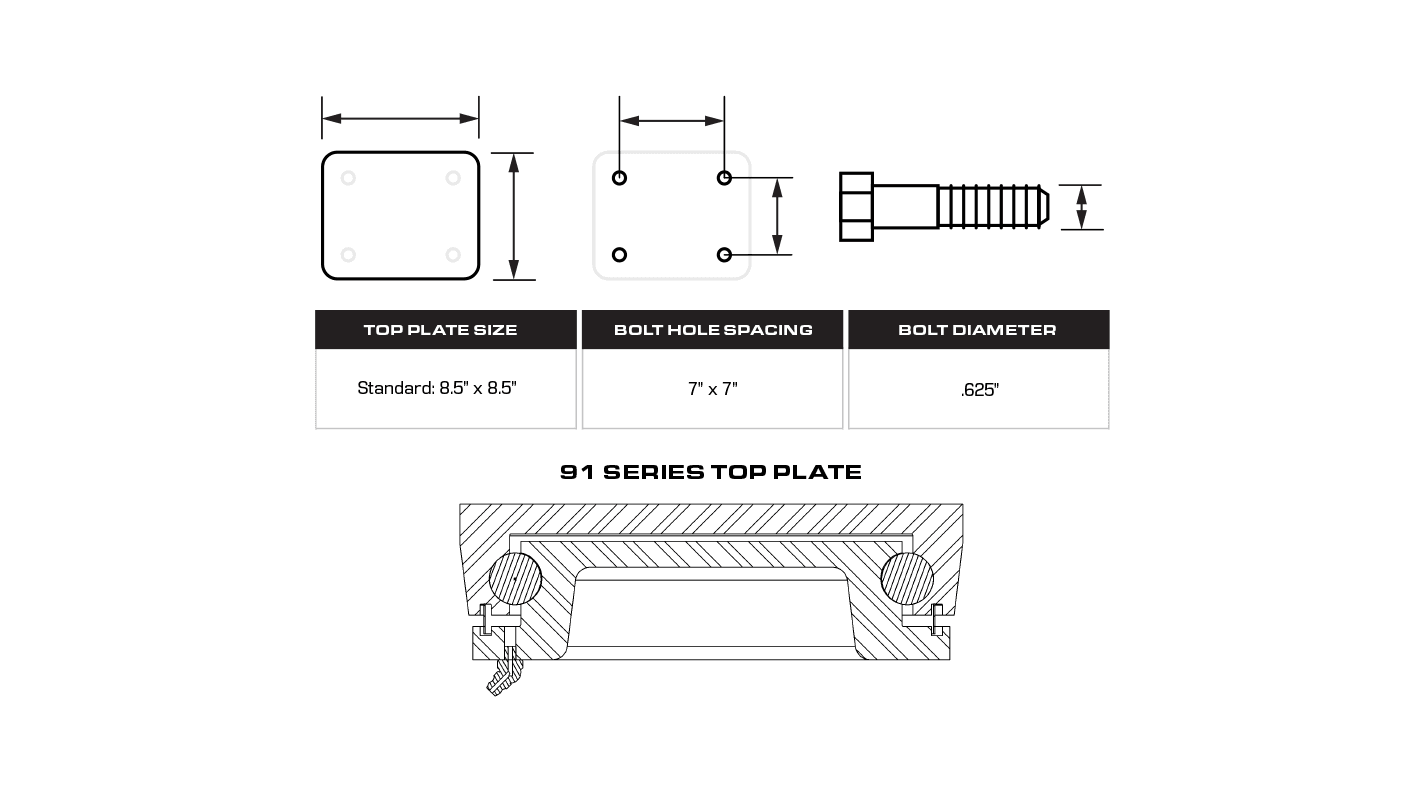

Available in Rigid or Swivel: Swivel section is constructed of hot-forged C-1045 steel. The single-ball-race design features 7/8” diameter load/thrust ball bearings in a 7” diameter precision-machined load raceway. The HD version handles an additional 5,000 lbs. by utilizing a unique swivel section that places the ball bearing in a shear load configuration.

Legs: 1/2” x 4” legs are formed and continuously welded both inside and outside for greater strength.

Kingpin: Kingpinless style design.

Axle: 1-1/4”, Grade 5.

Lubrication: Pre-lubricated before shipping.

Wheels: 6” to 18” diameter wheels, 3” to 5” widths.

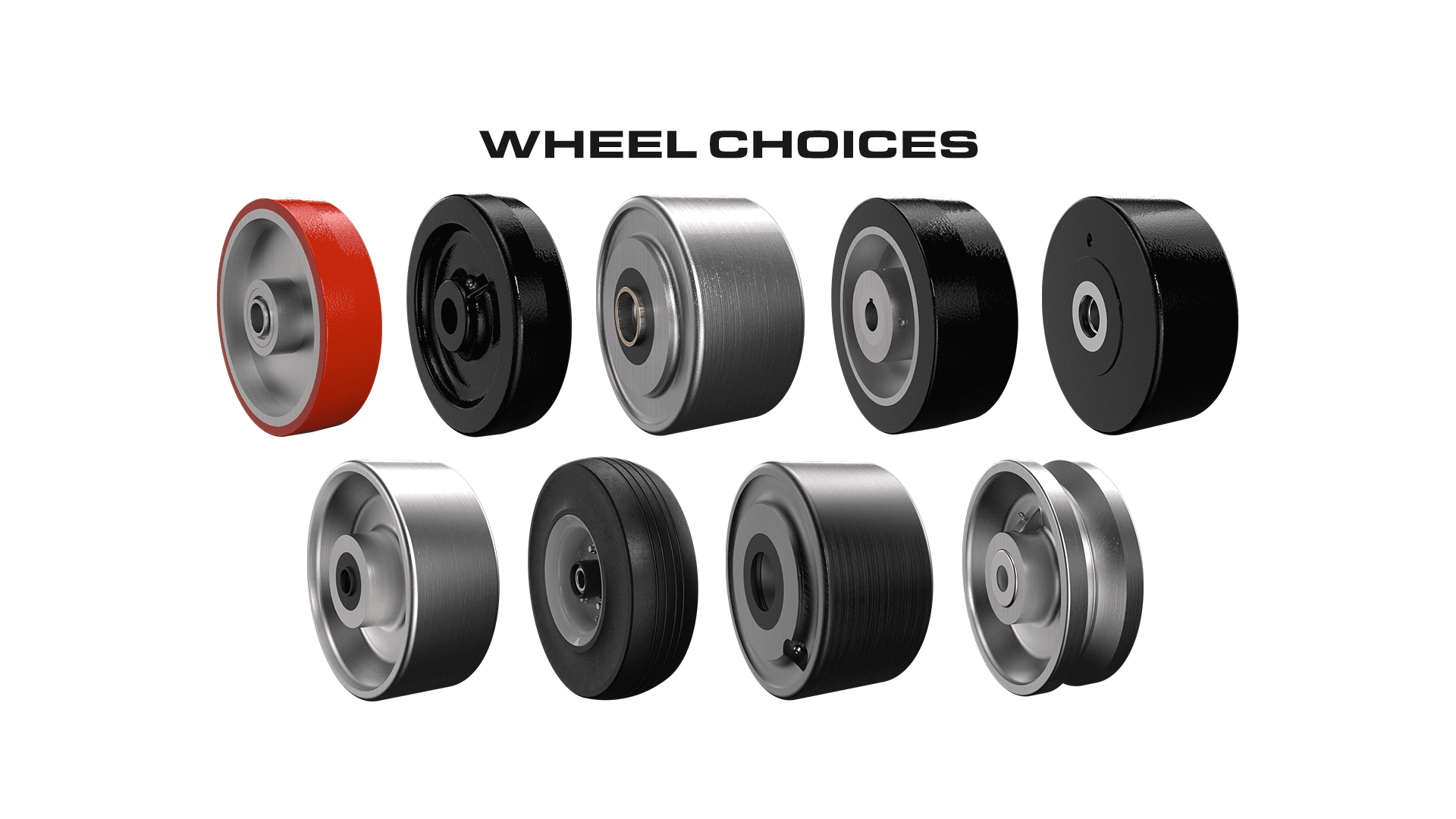

Wheel Choices: Polyurethane: (95A Standard, T/R 70D Hard) ▪ Metal: (Forged Steel ▪ Cast Iron ▪ Ductile Iron) ▪ Composite: (Phenolic, NYTEC) ▪ Mold On Rubber ▪ Pneumatic ▪ Track Wheels

Finish: Gold Powder Coat.

Standard: Shielded swivel to reduce dust and dirt contamination.

OPTIONS

BRAKES

Poly Lock

Wrap Around

Face Contact

SWIVEL LOCKS

Factory Installed

Heavy Duty Demountable

Foot Actuated

SEALED SWIVEL SECTION

SEALED WHEELS

TOE GUARD
