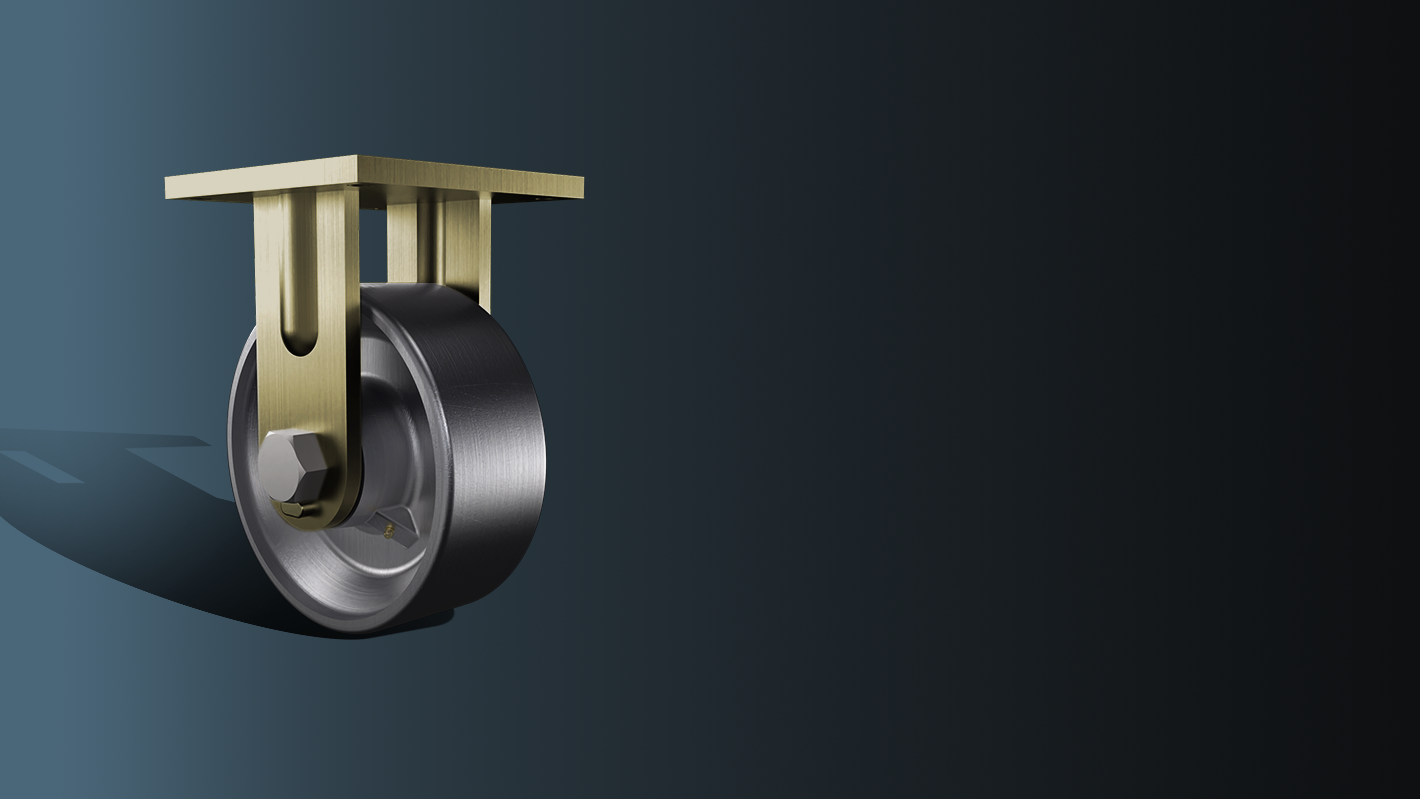

90-SERIES
The 90 Series are used for power drawn equipment, stamping racks, trash gondolas, material delivery trailers, and towed trailers. These casters are also widely used on aircraft ground support equipment, in automotive plants and within steel mills.
FEATURES

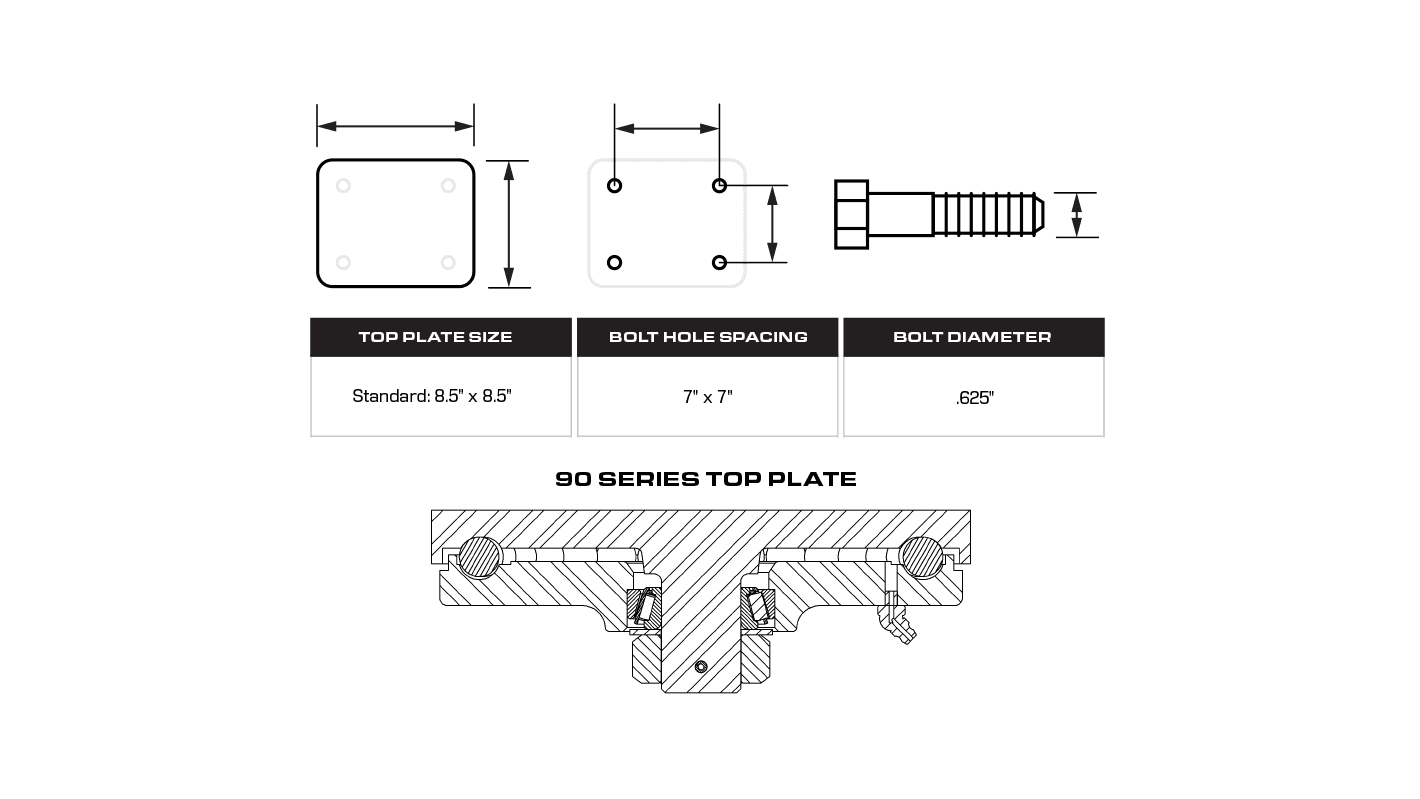

Swivel Section: Constructed of hot forged C-1045 steel with a 7” diameter machined load raceway featuring 5/8” diameter ball bearings with 1-1/4” tapered thrust bearing.
Legs: 1/2” x 4” legs formed and continuously welded both inside and outside for greater strength.
Kingpin: 1-1/4” integrally forged kingpin with slotted adjusting nut.
Axle: 1-1/4”, Grade 5.
Lubrication: Pre-lubricated before shipping.
Wheels: 6” to 18” diameter wheels, 3” to 5” widths.

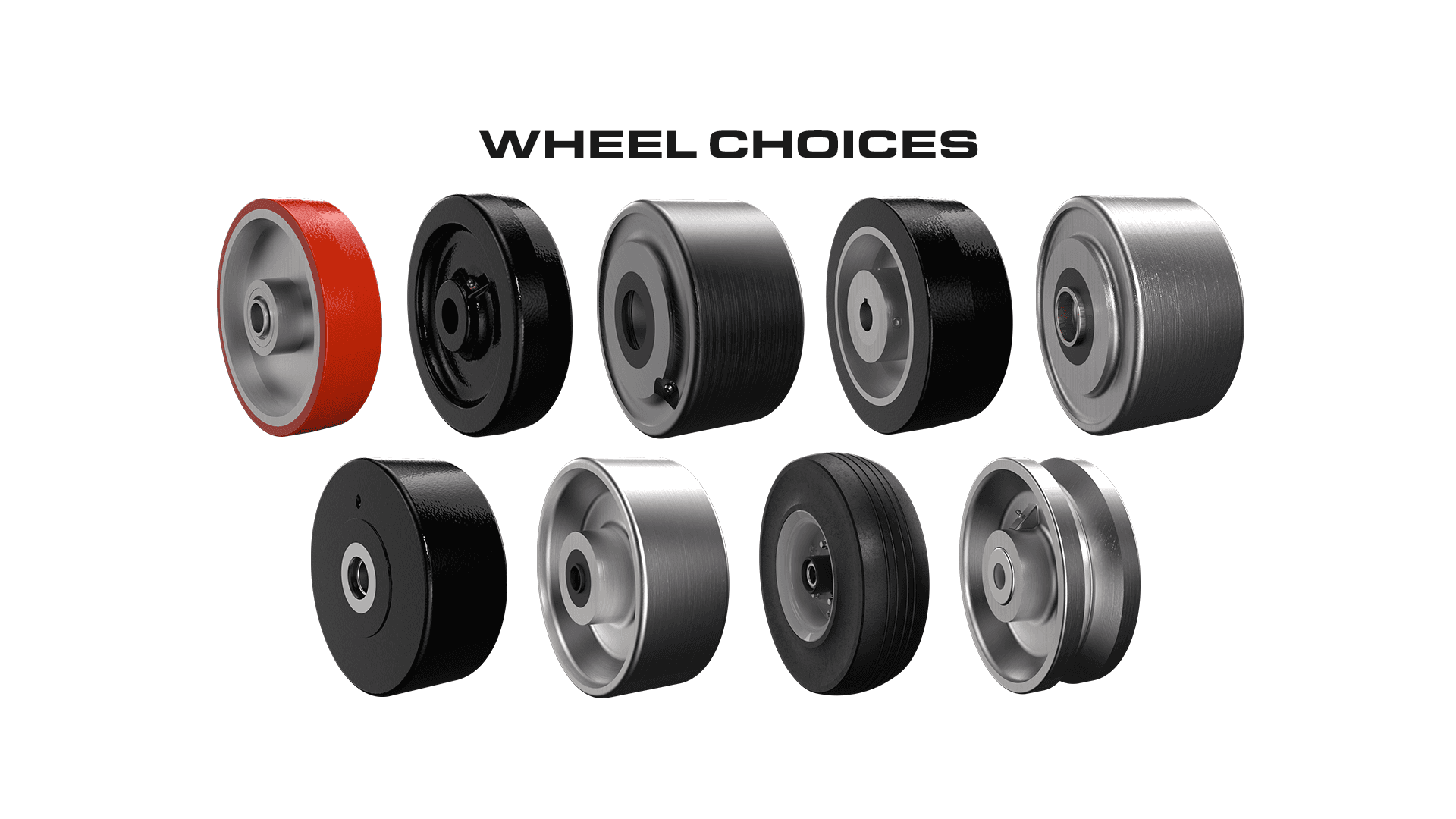

Wheel Choices: Polyurethane ▪ Phenolic Resin ▪ Cast Iron ▪ Forged Steel ▪ Mold On Rubber ▪ Phenolic ▪ NYTEC ▪ Ductile Iron ▪ Pneumatic ▪ Track Wheels
Finish: Gold Powder Coat.
OPTIONS
BRAKES
Poly Lock
Wrap Around
Face Contact
SWIVEL LOCKS
Factory Installed
Heavy Duty Demountable
Foot Actuated
SEALED SWIVEL SECTION
SEALED WHEELS
TOE GUARD
