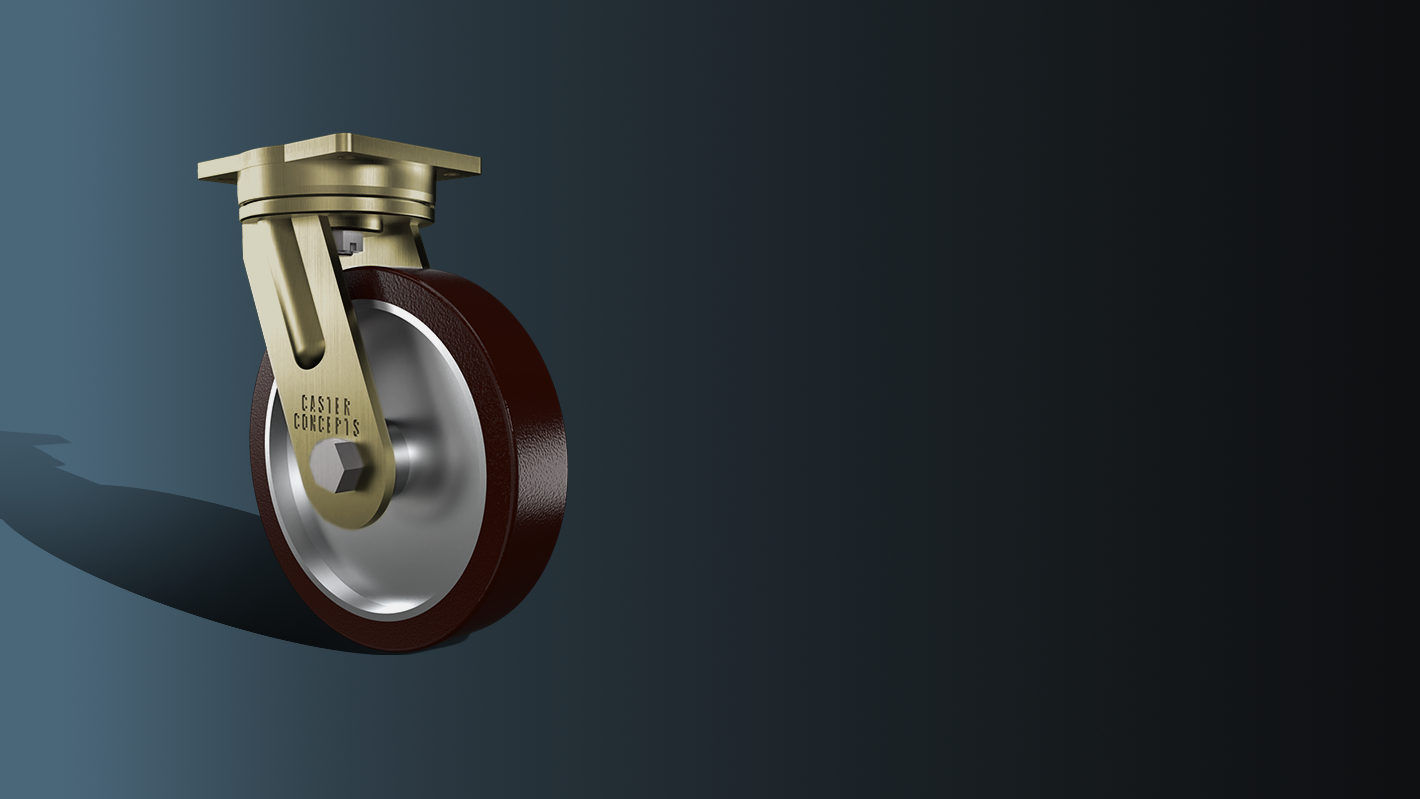

85-SERIES
Applications may include high capacity die tables, die carts, towed trailers, aerospace industry, steel mills, gantries, automated guided vehicles and aircraft maintenance applications.
FEATURES

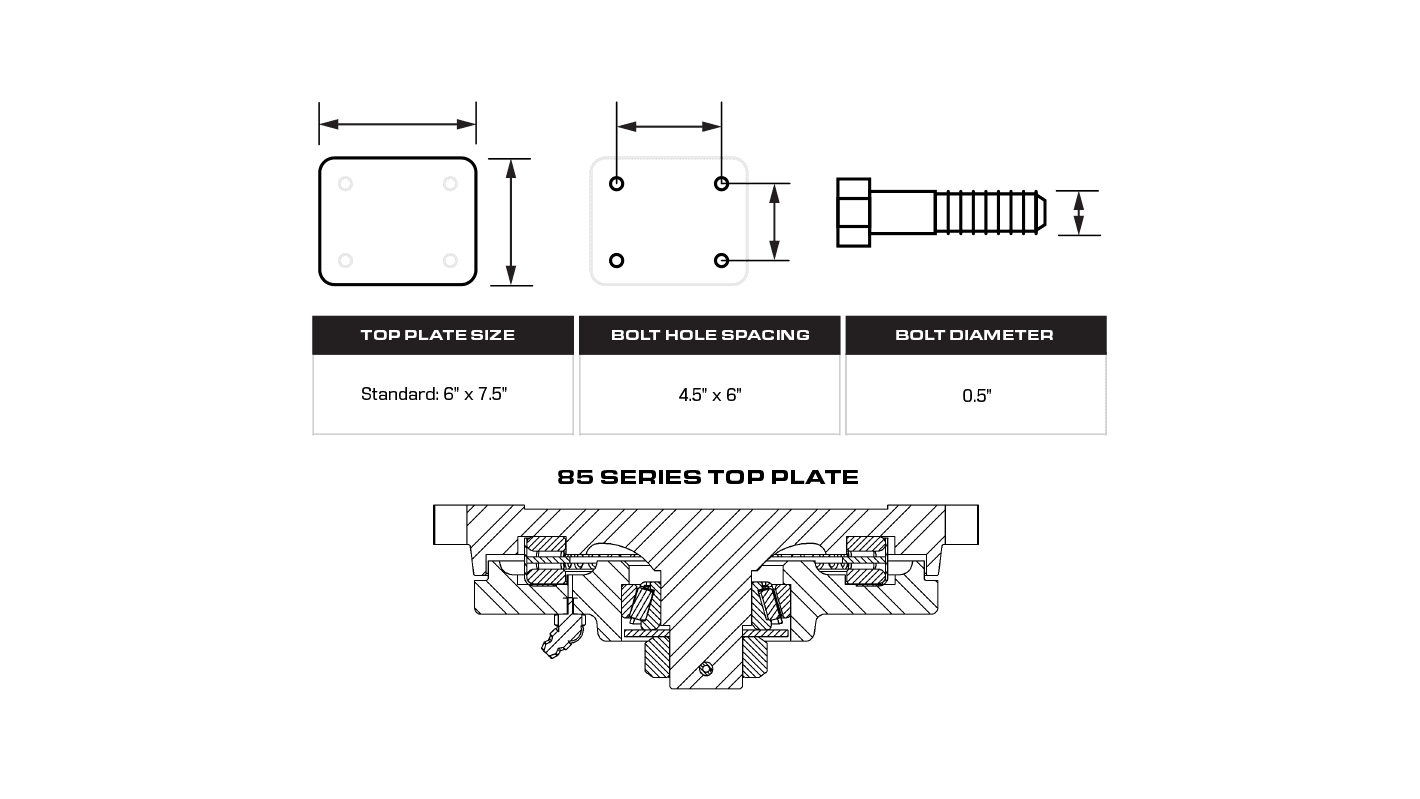

Available in Rigid or Swivel: The swivel section is constructed from hot-forged C-1045 steel. The swivel section features a large precision-machined raceway, with a precision-tapered load and tapered thrust bearing.
Legs: 3/8” x 4” legs are formed and continuously welded both inside and outside.
Kingpin: 1-1/4” integrally forged kingpin with slotted adjusting nut.
Axle: 1”, Grade 5 axle.
Lubrication: Pre-lubricated before shipping.
Wheels: 6” to 12” diameter wheels.

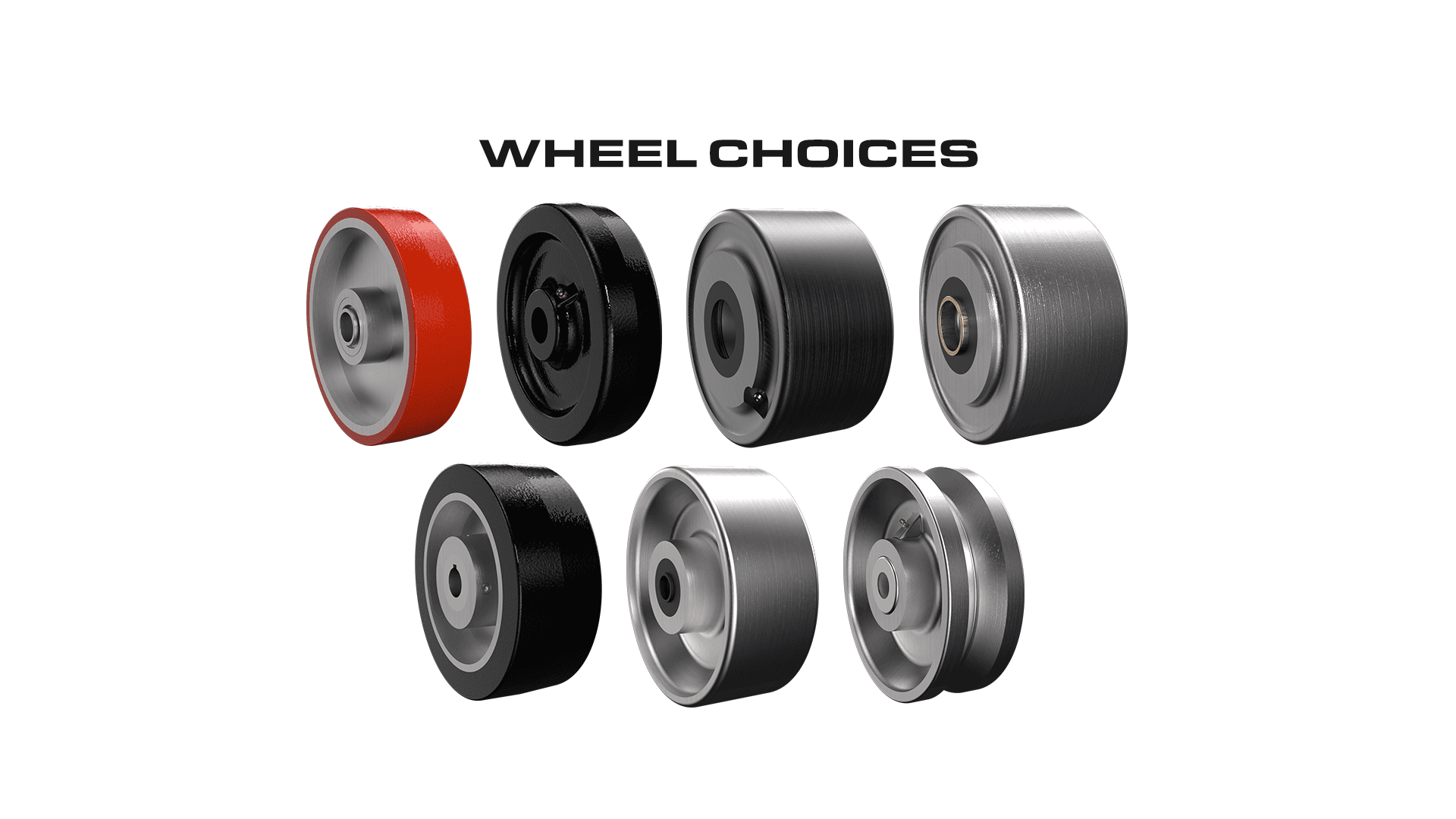

Wheel Choices: Polyurethane: (95A Standard, T/R85A) ▪ Metal: (Forged Steel, Cast Iron, Ductile Iron) ▪ Composite: (Phenolic) ▪ Mold On Rubber ▪ Track Wheels
Finish: Gold Powder Coat.
OPTIONS
BRAKES
Poly Lock
Wrap Around
Face Contact
SWIVEL LOCKS
Factory Installed
Heavy Duty Demountable
Foot Actuated
SEALED SWIVEL SECTION
SEALED WHEELS
TOE GUARD
