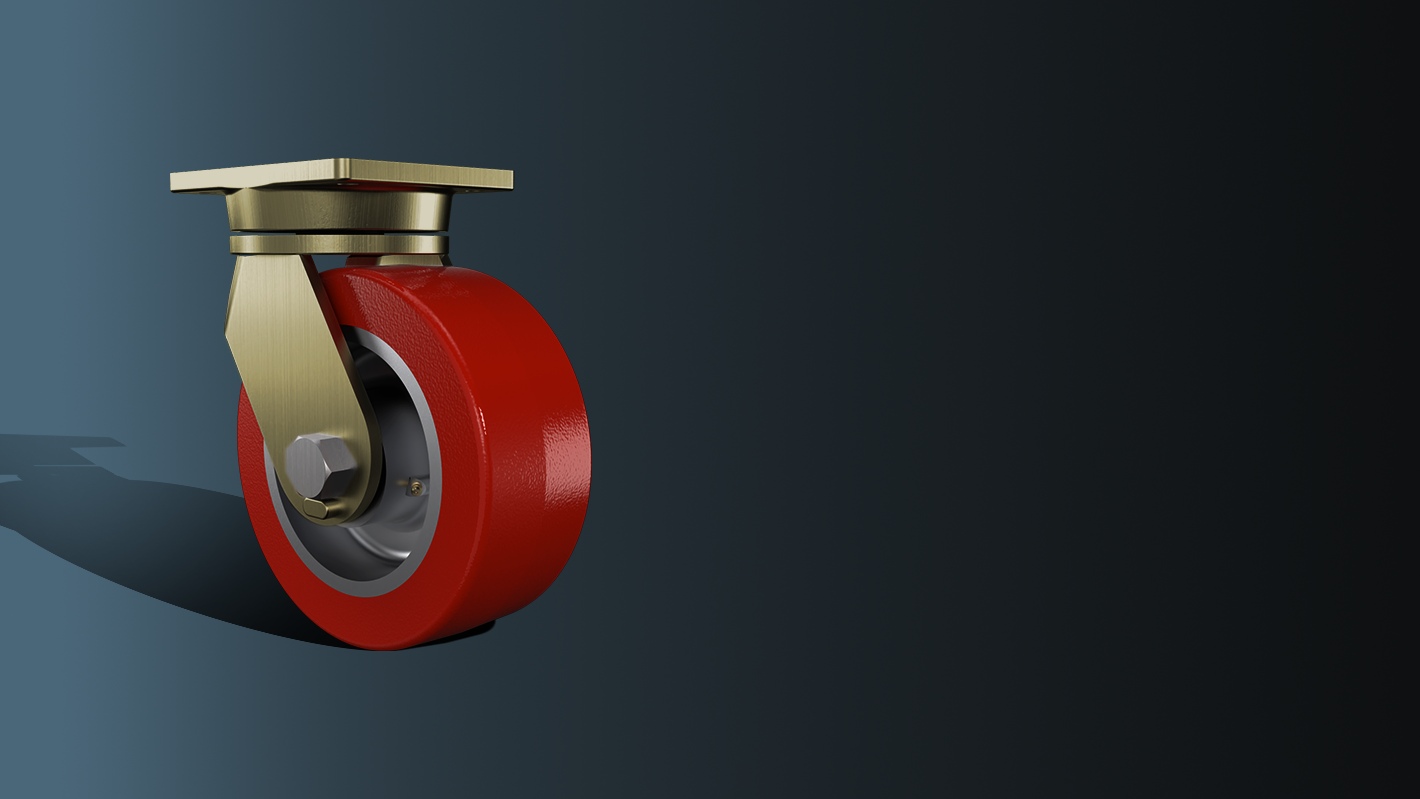

81-SERIES

Suitable for power drawn applications, fiberglass mold dollies, aircraft wing and spar tooling, machinery, engine and paint line dollies, body dolly carts, material carts, chassis rack carts, towed trash gondolas, aircraft maintenance stands, production line delivery trailers and automated guided vehicles.

FEATURES

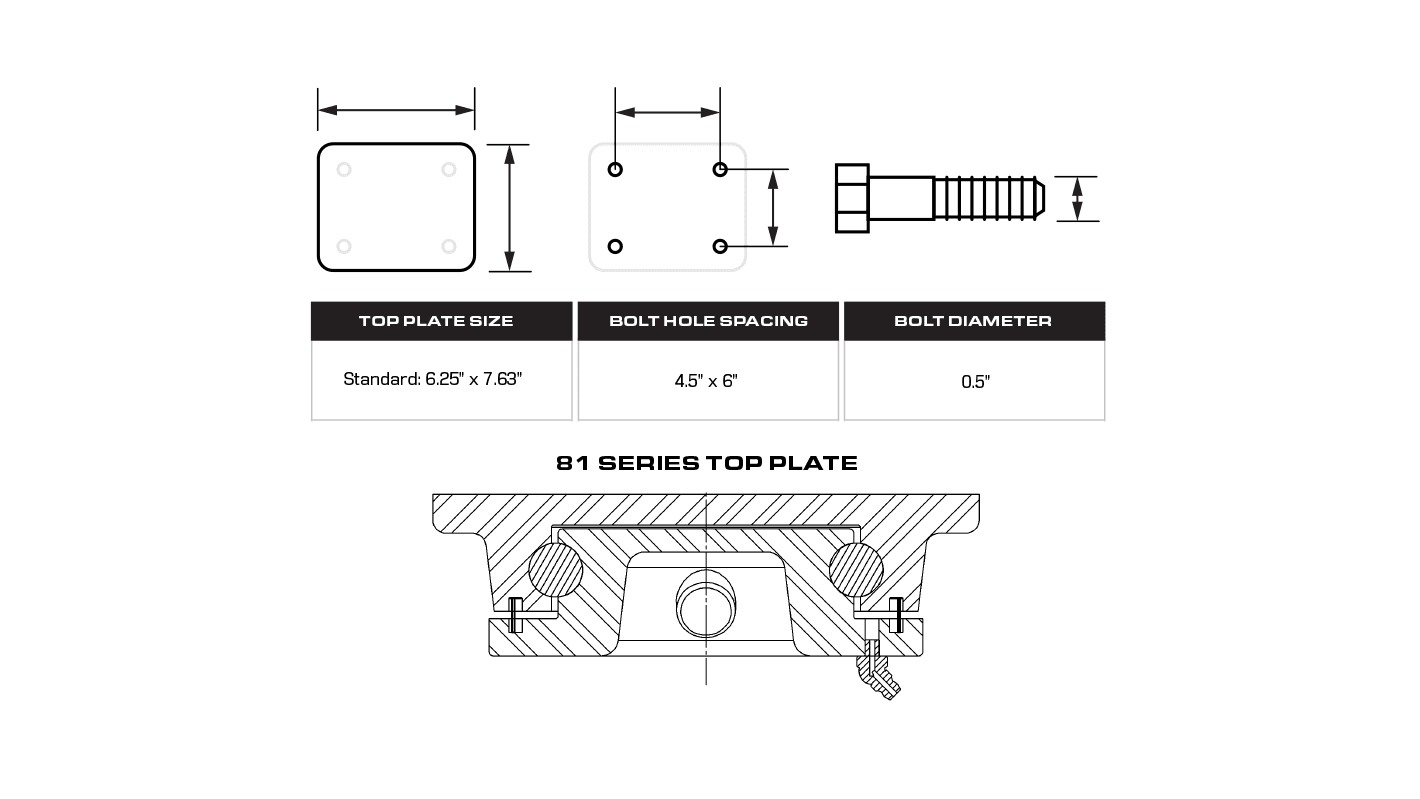

Available in Rigid or Swivel: The swivel section is constructed from drop-forged C-1045 steel. The swivel section features a precision-machined 4” single-ball-bearing load/thrust raceway. The unique raceway places the 3/4” diameter load/thrust ball bearing in shear, locking the swivel section together.

Legs: 3/8” x 4” formed and continuously welded both inside and outside.

Kingpin: Kingpinless style design.

Axle: 1”, Grade 5 axle.

Lubrication: Pre-lubricated before shipping.

Wheels: 6” to 12” diameter wheels.

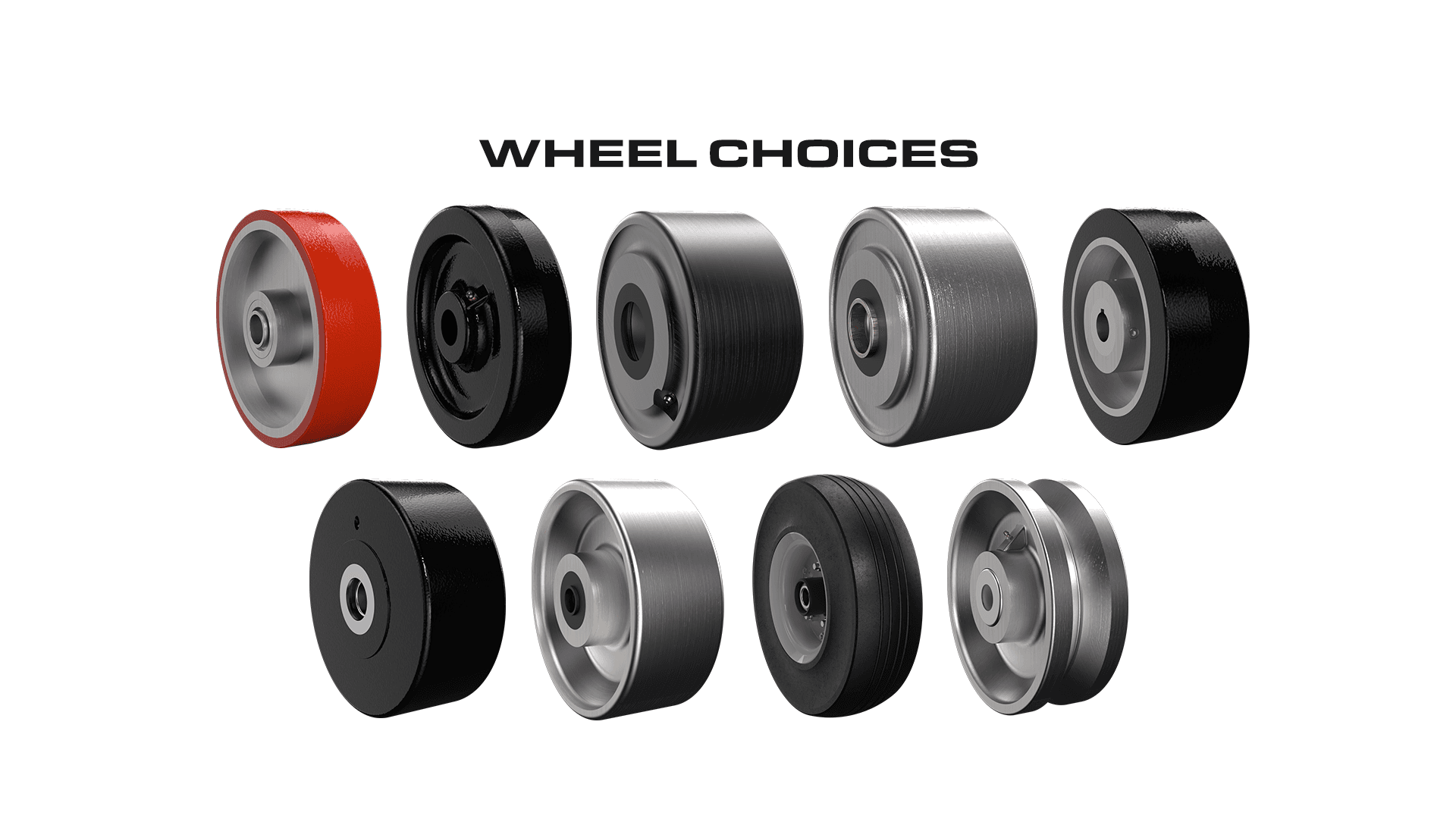

Wheel Choices: Polyurethane: (95A Standard, T/R 85A, 70D Hard) ▪ Metal: (Forged Steel, Cast Iron, Ductile Iron) ▪ Composite: (Phenolic, NYTEC) ▪ Mold On Rubber ▪ Pneumatic ▪ Track Wheels

Finish: Gold Powder Coat.

Standard: Shielded swivel.

OPTIONS

BRAKES

Poly Lock

Wrap Around

Face Contact

SWIVEL LOCKS

Factory Installed

Heavy Duty Demountable

Foot Actuated

SEALED SWIVEL SECTION

SEALED WHEELS

TOE GUARD
