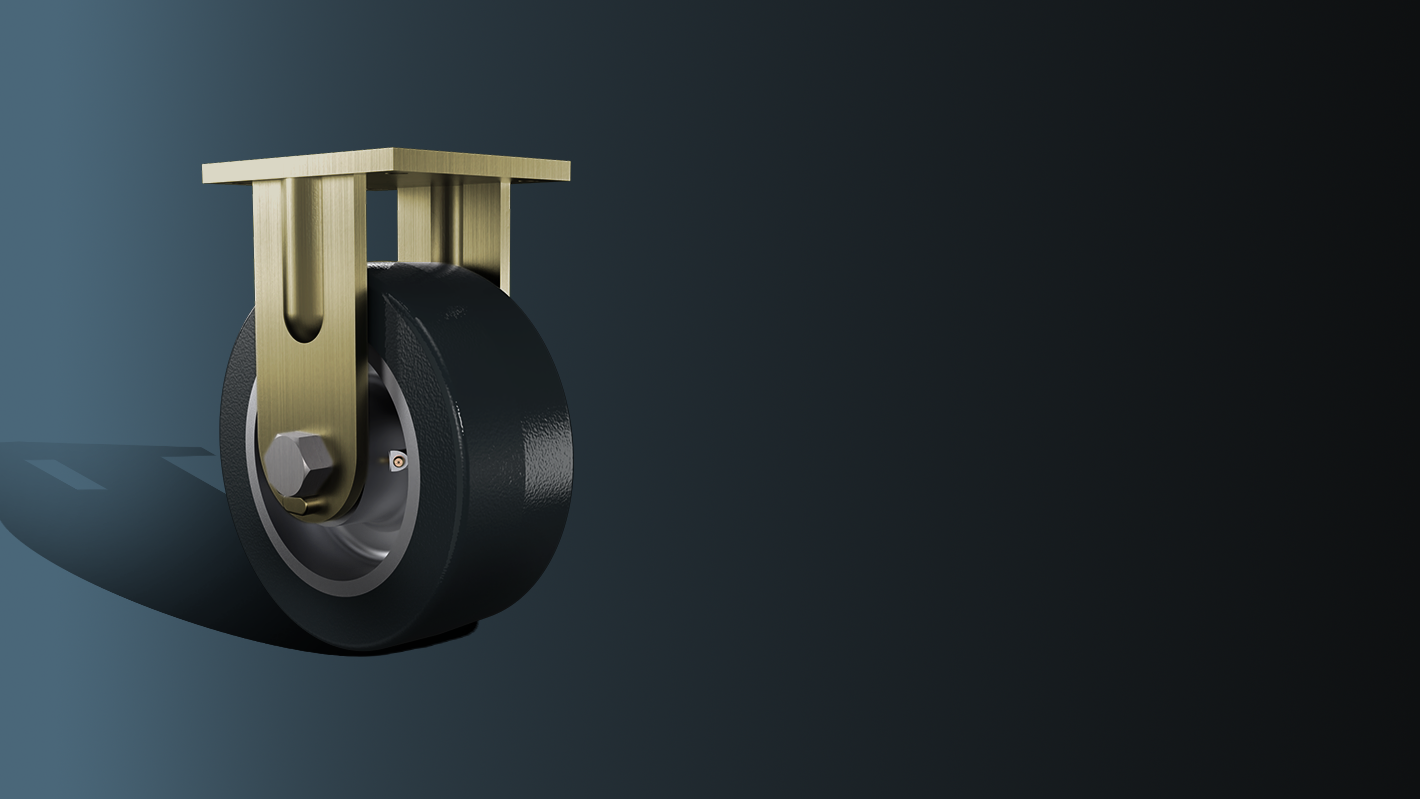

80-SERIES
Die carts, automotive plants, steel mills, production line delivery trailers, fiberglass lay up molds, stamping racks, aircraft maintenance, aircraft crew stairs, trash gondolas and other aircraft ground support equipment.
FEATURES

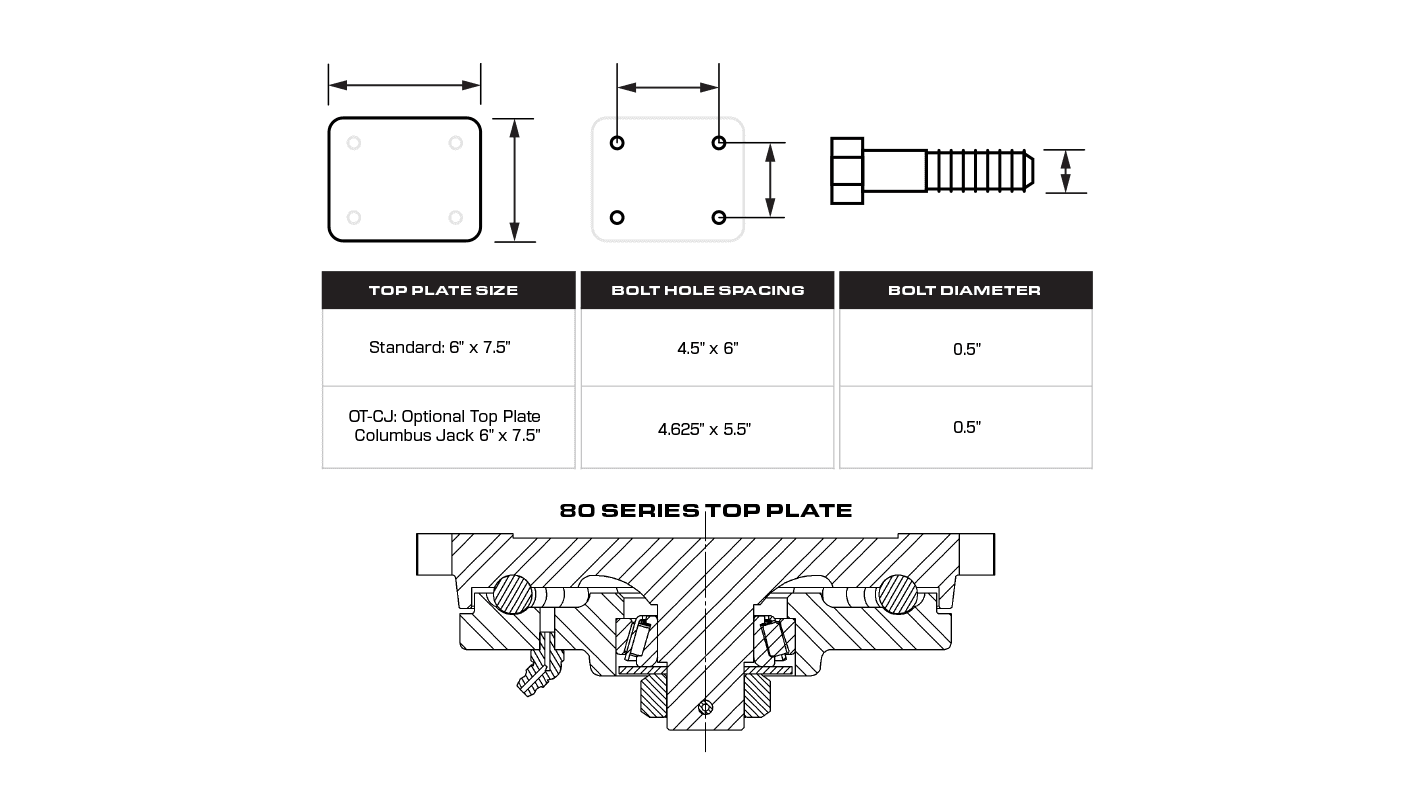

Available in Rigid or Swivel: The swivel section is drop-forged from C-1045 steel with a 5” diameter precision-machined load raceway. A 1-1/4” tapered thrust bearing completes the precision fit.
Legs: 3/8” x 4” formed and continuously welded both inside and outside.
Kingpin: 1-1/4” integrally forged kingpin with slotted adjusting nut.
Axle: 1”, Grade 5 axle.
Lubrication: Pre-lubricated before shipping.
Wheels: 6” to 12” diameter wheels.

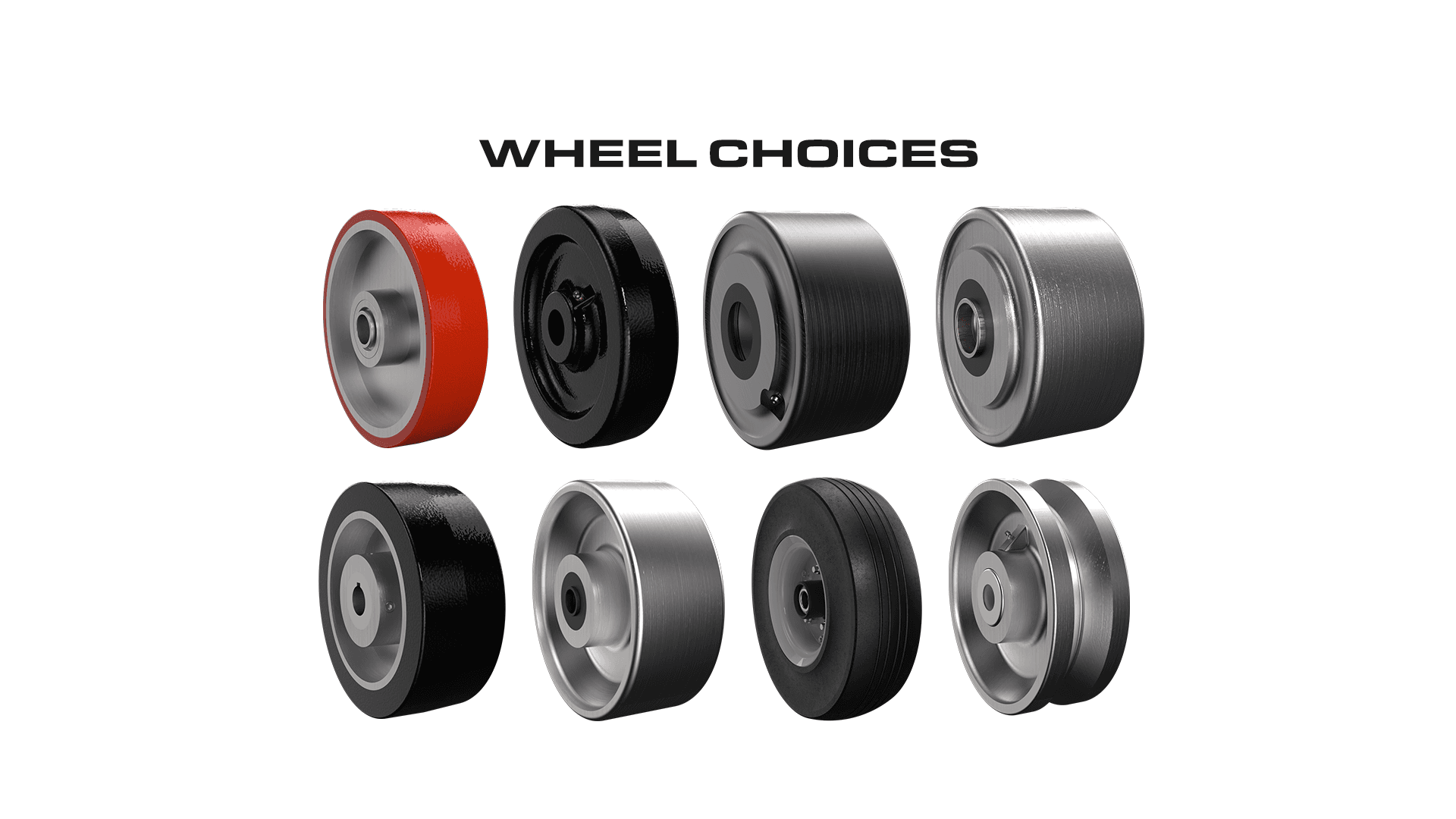

Wheel Choices: Polyurethane: (T/R 85A, 70D Hard) ▪ Metal: (Forged Steel, Cast Iron, Ductile Iron) ▪ Composite: (Phenolic) ▪ Mold On Rubber ▪ Pneumatic ▪ Track Wheels
Finish: Gold Powder Coat
OPTIONS
BRAKES
Poly Lock
Wrap Around
Face Contact
SWIVEL LOCKS
Factory Installed
Heavy Duty Demountable
Foot Actuated
SEALED SWIVEL SECTION
SEALED WHEELS
TOE GUARD
