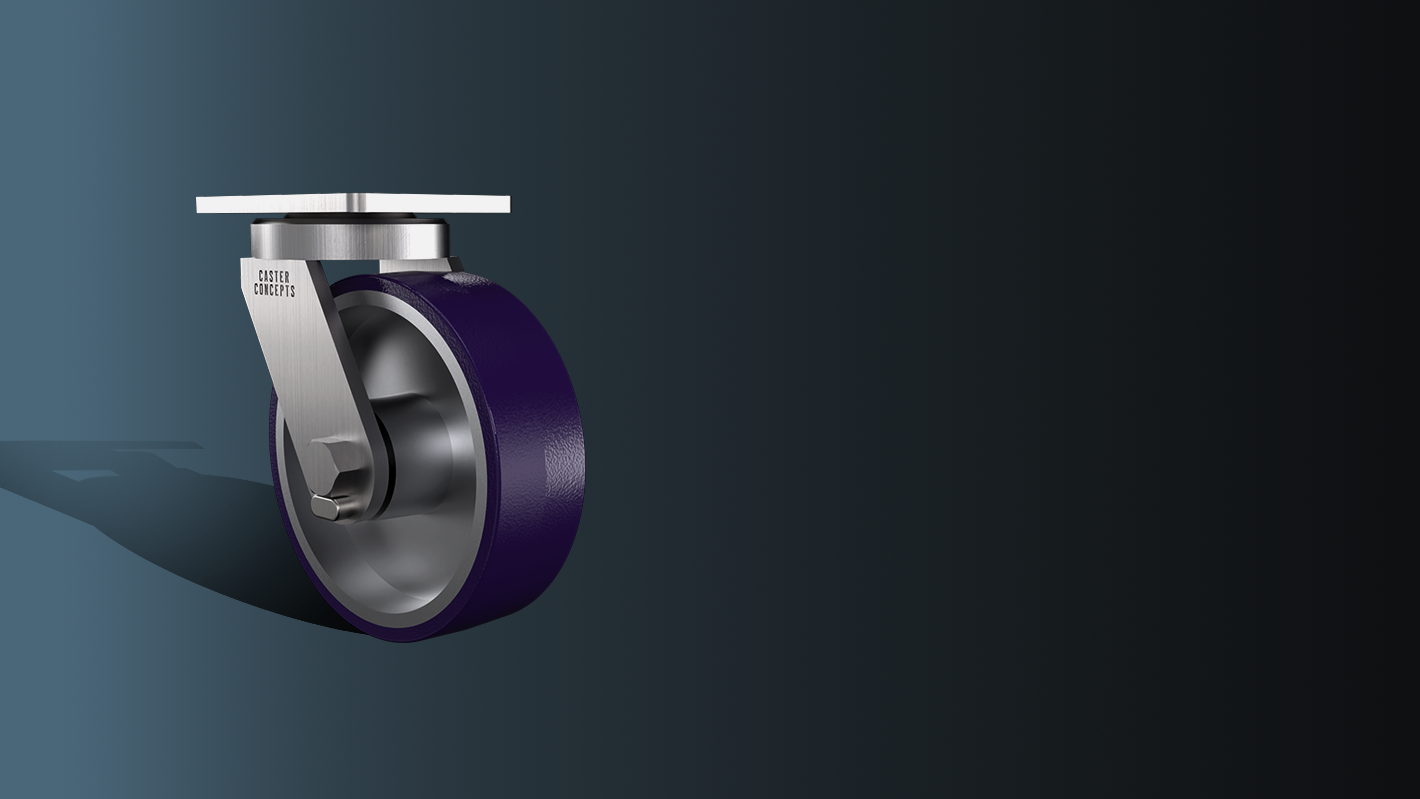

61-SERIES
Excellent for light powered applications, bakery dough troughs, portable work benches, platform trucks, towlines, utility carts, tooling fixtures, scrap metal carriers, drywall dollies, gantry cranes, automated guided vehicles, fiberglass lay-up molds, and other applications.
FEATURES
Swivel Section: A high alloy steel swivel section features a precision machined and through hardened 3-1/4” diameter raceway with 1/2” inch ball bearings.
Legs: 5/16” x 2-1/2” legs are formed and continuously welded inside and outside to the yoke base.
Kingpin: Kingpinless style design.
Axle: 3/4” diameter.
Lubrication: Pre-lubricated before shipping.

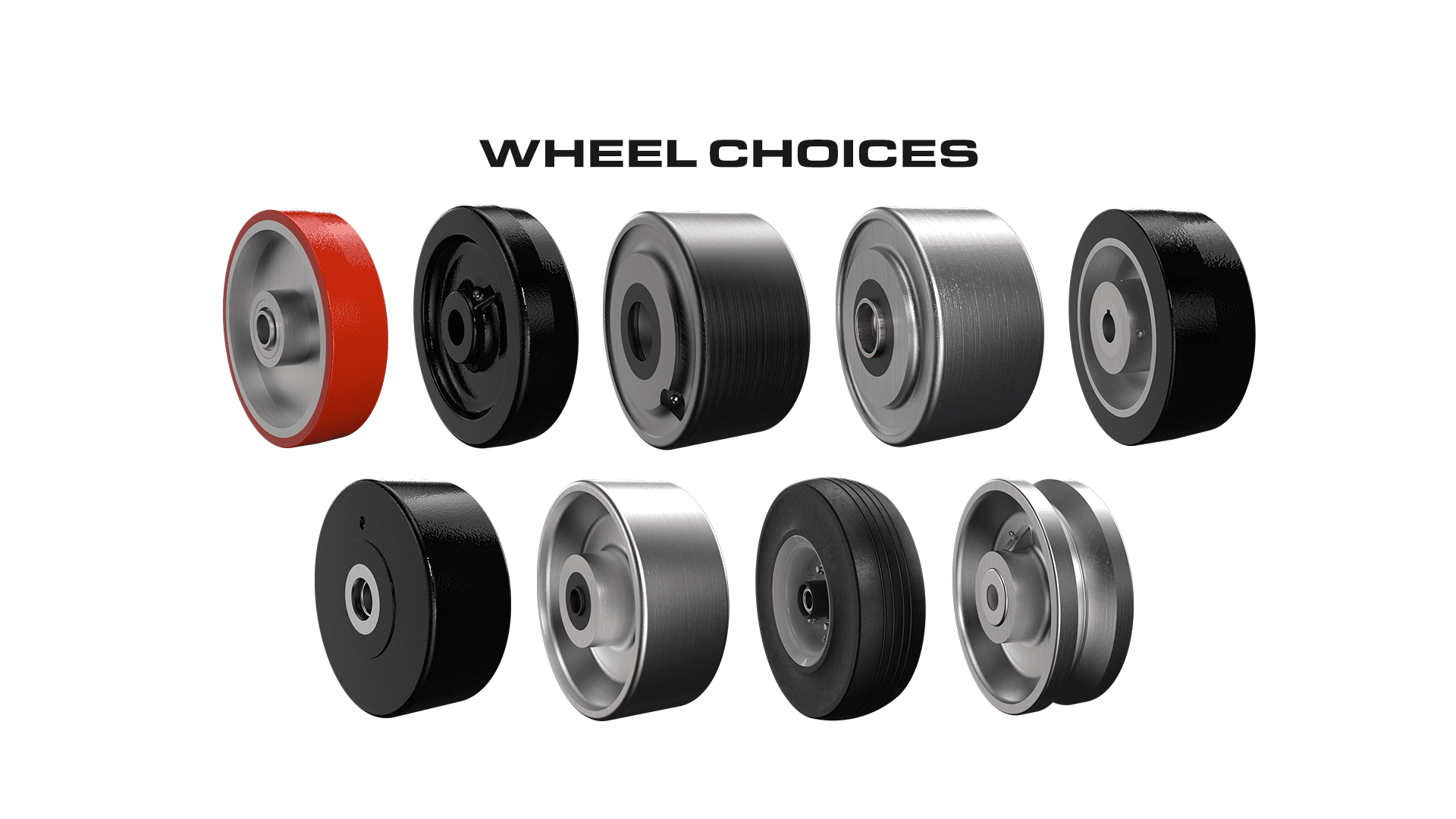

Wheels: 4” to 12” diameter wheels are available.
Finish: Clear zinc plating.
OPTIONS
BRAKES
Cam
Poly Lock
Wrap Around
Dual Side
Single Side
Face Contact
SWIVEL LOCKS
Factory Installed
Demountable
Foot Actuated
Passive
SEALED SWIVEL SECTION
SEALED WHEELS
TOE GUARD
NOT SURE WHICH CASTER IS RIGHT FOR YOUR APPLICATION?
